HUV 4421 D - Husqvarna 4x4 Utility Vehicle, Diesel (2006-11) Kubota D722 Diesel Engine Mounting Parts Diagram

4x4 Utility Vehicle, Diesel

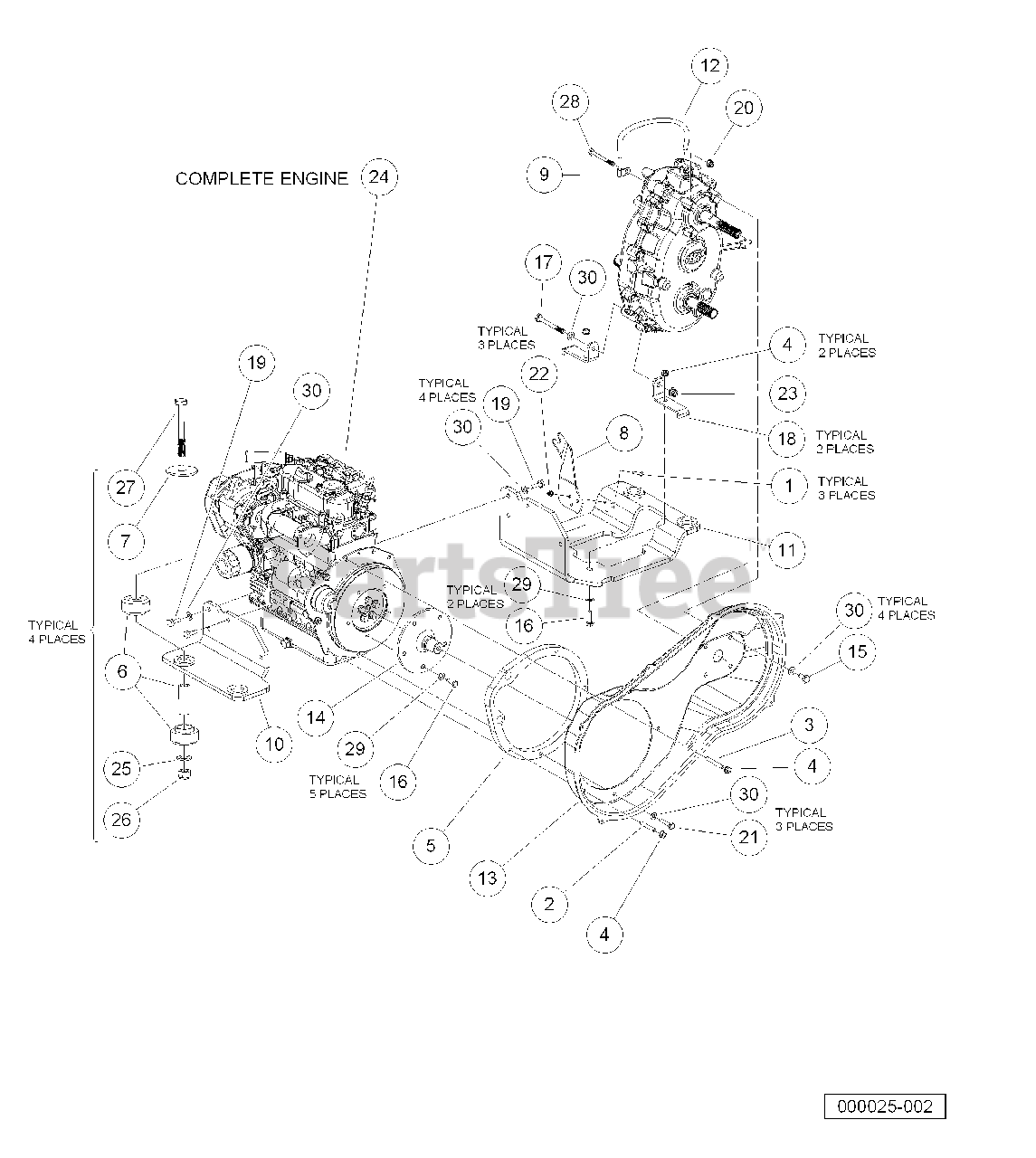

Kubota D722 Diesel Engine Mounting Parts Diagram

  • Title

1

Husqvarna 603000157

Screw, M6-1.00 X 25mm Hex Cap

$

$

Not available

2

Husqvarna 603000513

Stud, M8-1.25 X 50 mm Two-Ended

$

$

Not available

3

Husqvarna 603000514

Stud, M8-1.25 X 60mm Two-Ended

$

$

Not available

4

Husqvarna 603001298

Nut,m8,all Metal Lock

$2.49

$

In Stock, Qty 11

0

5

Husqvarna 603000907

Spacer, Engine, Diesel

$

$

Not available

6

Husqvarna 603000908

Isolator Ring and Bushing

$

$

Not available

7

Husqvarna 603000909

Washer, Snubbing, Ring N Bush

$

$

Not available

8

Husqvarna 603000937

Bracket, FNR Trans Cable

$

$

Not available

9

Husqvarna 603000966

P-Clamp, Insulated .312 In

$

$

Not available

10

Husqvarna 603000984

Plate, Engine Mounting, Weld, Left-Hand

$

$

Not available

11

Husqvarna 603000985

Plate, Engine Mounting, Weld, Right-Hand

$

$

Not available

12

Husqvarna 603001111

Hose, Vent, Transmission

$

$

Not available

13

Husqvarna 603001113

Cover, CVT Inner, Diesel

$

$

Not available

14

Husqvarna 603001128

Shaft, CVT Adapter

$

$

Not available

15

Husqvarna 603001165

Bolt, M10 X 1.5 X 20 Loctite

$

$

Not available

16

Husqvarna 603001166

Bolt, M8 X 1.25 X 25 Loctite

$

$

Not available

17

Husqvarna 603001169

Bolt, M10 X 1.5 X 100 Loctite

$

$

Not available

18

Husqvarna 603001186

Bracket, Transmission Mounting

$

$

Not available

19

Husqvarna 603001191

Bolt, M10 X 1.25 X 25 Loctite

$

$

Not available

20

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

21

Husqvarna 603001316

Bolt, M8 X 1.25 X 40 with Loctite

$

$

Not available

22

Husqvarna 603001317

Nut Flg, M6 X 1.0 Nylon

$

$

Not available

23

Husqvarna 603001586

Nut Flg M10 X 1.5 Nylon

$

$

Not available

24

Husqvarna 603002885

Engine, Kubota, D722, with Closed Breather, 60a

$

$

Not available

25

Husqvarna 603000437

Washer, M12 Hard
(Superseded to 603000447)

$

$

Not available

26

Locknut, M12x1.75 Nylon Insert

$

$

Not available

27

Husqvarna 603000440

Bolt, M12 X 1.75 X 90

$

$

Not available

28

Husqvarna 603000449

Bolt, M8 X 1.25 X 80

$

$

Not available

29

Husqvarna 603000450

Washer, M8 Hard

$

$

Not available

30

Husqvarna 603000451

Washer, M10 Hard

$

$

Not available
