HUV 4421 D - Husqvarna 4x4 Utility Vehicle, Diesel (2006-11) Injection Pump Parts Diagram

4x4 Utility Vehicle, Diesel

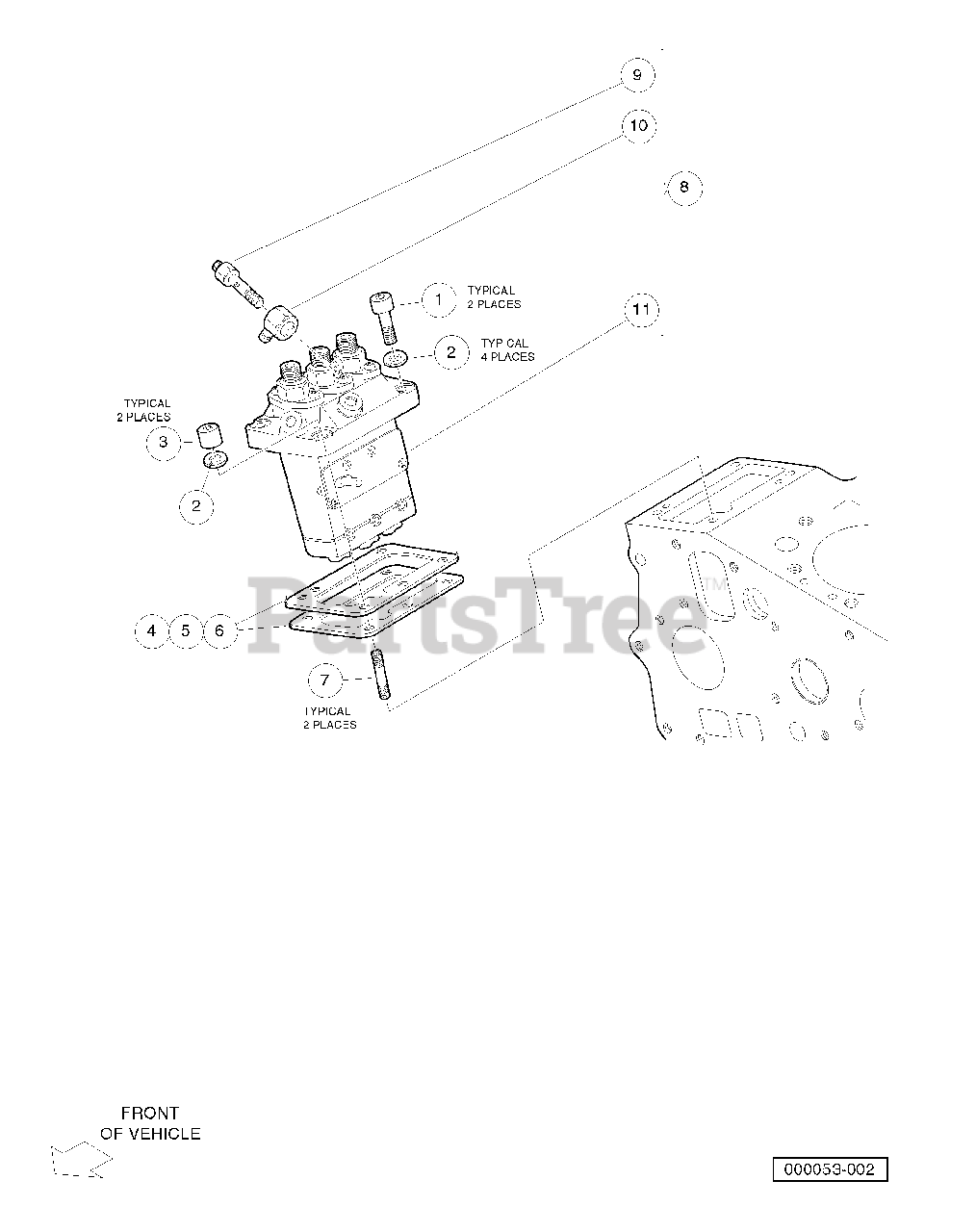

Injection Pump Parts Diagram

  • Title

1

Husqvarna 603001385

Bolt, Hex-Head, M5 X 0.75 X

$

$

Not available

2

Husqvarna 603001818

Washer, Spring, M6, D722

$

$

Not available

3

Husqvarna 603001387

Nut, Special

$

$

Not available

4

Husqvarna 603001388

Shim, Injection Pump, 0.20 mm

$

$

Not available

5

Husqvarna 603001389

Shim, Injection Pump, 0.25 mm

$

$

Not available

6

Husqvarna 603001390

Shim, Injection Pump, 0.30 mm

$

$

Not available

7

Husqvarna 603001391

Stud, M5 X 25

$

$

Not available

8

Husqvarna 603001383

Assembly, Fuel Injection Pump

Note: (includes items 9 through 11)

$

$

Not available

9

Screw, Hollow, D722, Inj Pump

$

$

Not available

10

Husqvarna 603001384

Joint, Eye

$

$

Not available

11

Pump, Injection

$

$

Not available
