HUV 4421 D - Husqvarna 4x4 Utility Vehicle, Diesel (2006-11) Electric Bed Lift Parts Diagram

4x4 Utility Vehicle, Diesel

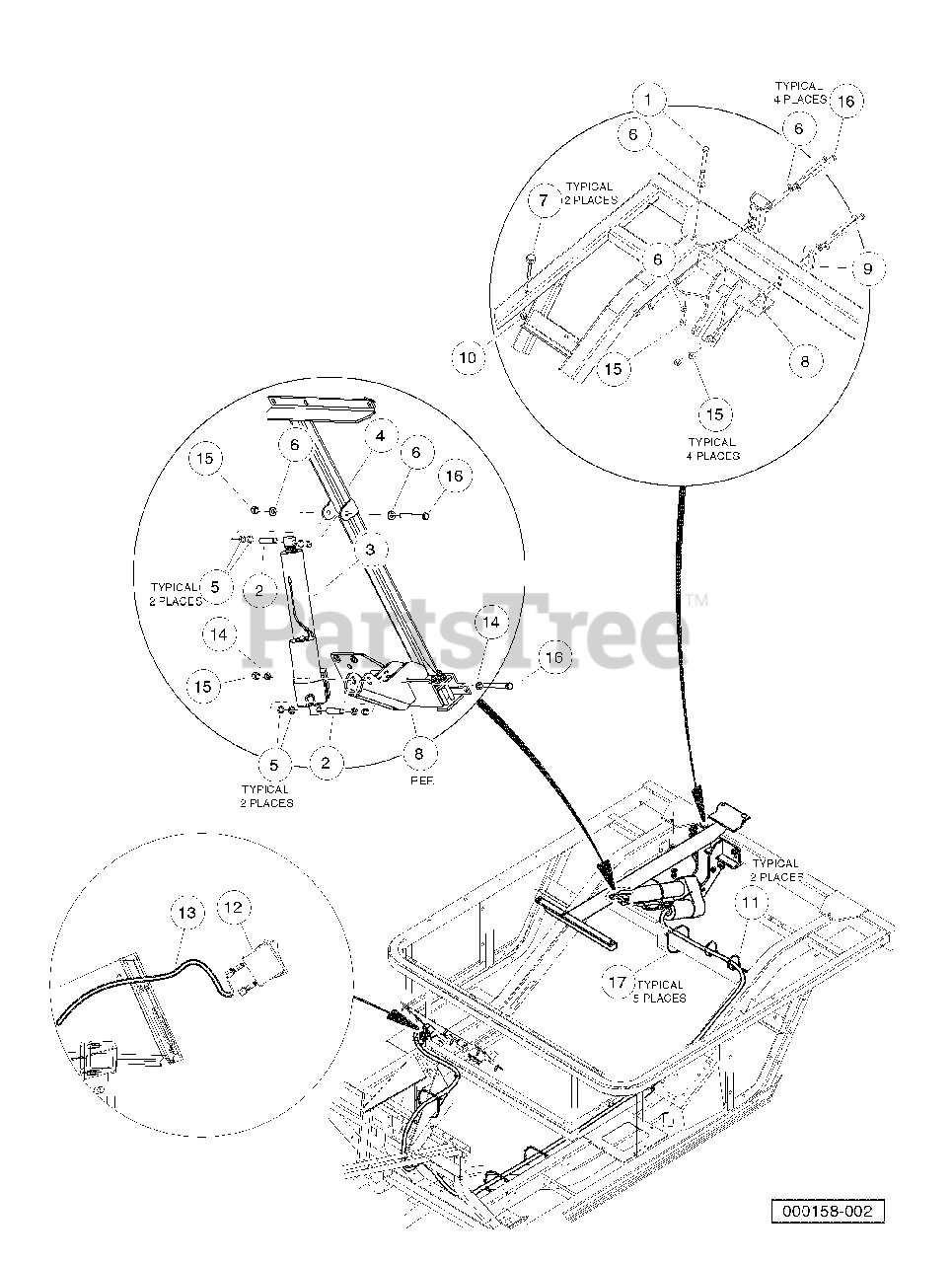

Electric Bed Lift Parts Diagram

  • Title

1

Husqvarna 603000106

Bolt, 3/8-16 X 425 Hex Head

$

$

Not available

2

Husqvarna 603000365

Bushing Long

$

$

Not available

3

Husqvarna 603000384

Actuator Assembly, Electric

$

$

Not available

4

Husqvarna 603000385

Asm, Actuator Adapter

$

$

Not available

5

Husqvarna 603000434

Body Spacer

$

$

Not available

6

Husqvarna 603000781

Washer, 3/8 Type B Hard Flat

$

$

Not available

7

Husqvarna 603001001

Bumper, Bed, Mtg, Front

$

$

Not available

8

Husqvarna 603001127

Weldment, Bracket, Actuator

$

$

Not available

9

Husqvarna 603001286

Plate, Back

$

$

Not available

10

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

11

Husqvarna 603001327

Tie Wrap, 8.00" With Mount

$

$

Not available

12

Husqvarna 531308241

Switch, Rocker, Spring Return, Bed Lift

$

$

Not available

13

Husqvarna 531308272

Harness, AWD Bedlift

$

$

Not available

14

Husqvarna 603000056

Washer, Lock, Hel Sp 3/8 Reg

$

$

Not available

15

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available

16

Husqvarna 603000096

Screw, 3/8-16 X 3.375 Hex Cap

$

$

Not available

17

Husqvarna 603002963

Tie Wrap, 8" Nylon

$

$

Not available
