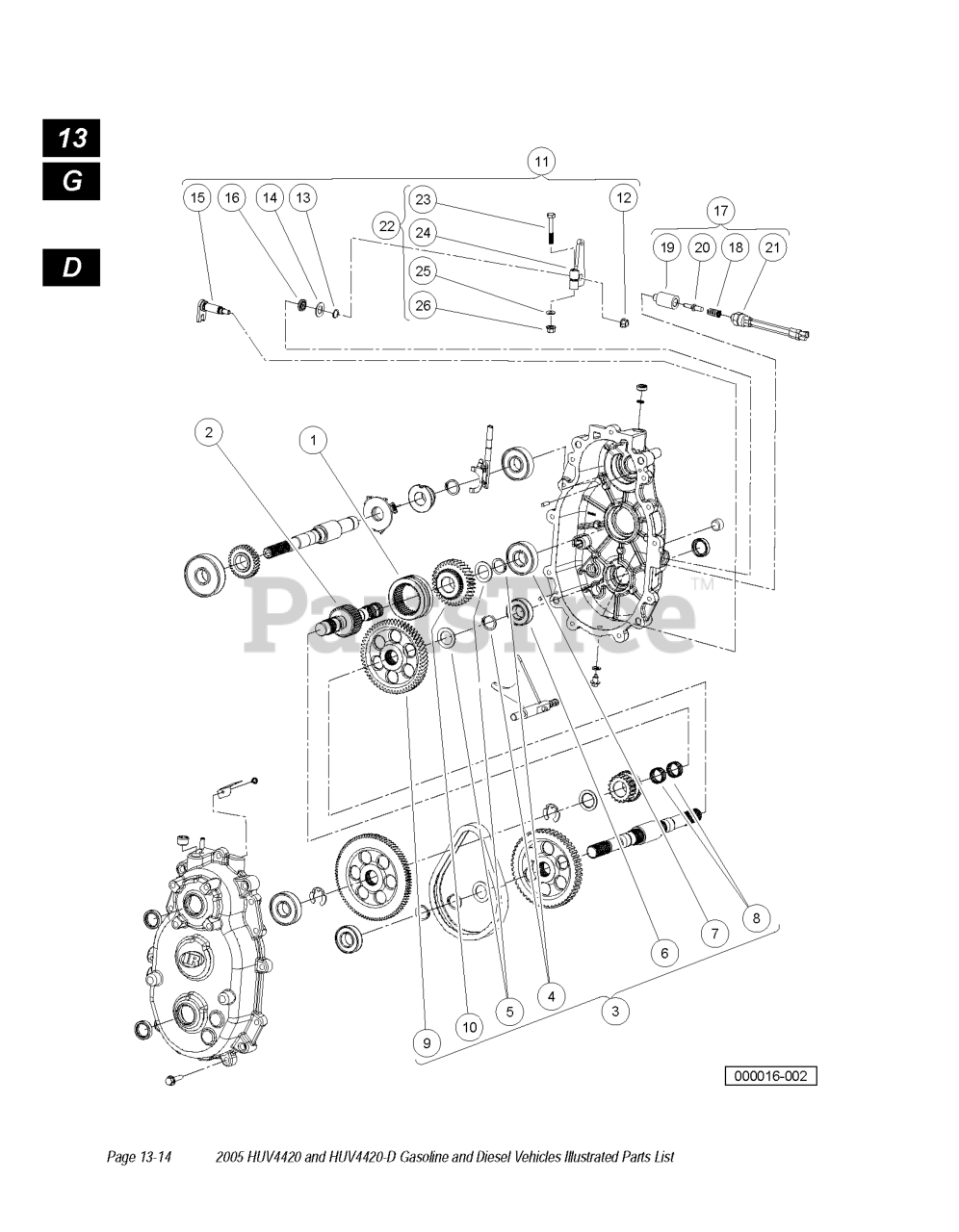

HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) TRANSMISSION Parts Diagram

4x4 Utility Vehicle

TRANSMISSION Parts Diagram

  • Title

24

Husqvarna 603004507

ASM, BELLCRANK, D SHAPE, CLAMP
(Superseded to 531309570)

$

$

Not available

10

NEEDS DESCRIPTION

Note: 34 TOOTH

$

$

Not available

4

Husqvarna 603001642

RING, RETAINING, BASIC EXTERNA

$

$

Not available

5

Husqvarna 603001645

WASHER, THRUST, 1.007 X .062

$

$

Not available

14

Husqvarna 603001646

WASHER, FLAT, .58 X 1.08 X .05

$

$

Not available

8

Husqvarna 603001651

BEARING, NEEDLE, SPLIT CAGE

$

$

Not available

12

Husqvarna 603001640

NUT, LOCK HEX, NYLON, 5/16-24

$

$

Not available

6

Husqvarna 603001648

BEARING, BALL, 6205 C3

$

$

Not available

13

Husqvarna 603001644

RING, RETAINING, EXTERNAL 9/16

$

$

Not available

3

Husqvarna 603001784

KIT-FORWARD GEAR REPAIR

$

$

Not available

25

Husqvarna 603000055

WASHER, 3/8 FLAT

$

$

Not available

7

Husqvarna 603001649

BEARING, BALL, 6305 C3

$

$

Not available

23

Husqvarna 603003035

BOLT, 3/8-16 X 2.00 HEX HEAD

$

$

Not available

1

Husqvarna 603002826

DOG, ENGAGEMENT

$

$

Not available

26

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available

17

Husqvarna 603001786

KIT-NEUTRAL SWITCH REPAIR

$

$

Not available

22

Husqvarna 531309570

KIT, BELLCRANK, D SHAPE, CLAMP

$

$

Not available

2

Husqvarna 603002836

SHAFT, INTERMEDIATE

$

$

Not available

11

Husqvarna 603001785

KIT- TRANS SHIFT SHAFT REAPAIR

$

$

Not available
