HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) REAR SUSPENSION 2 Parts Diagram

4x4 Utility Vehicle

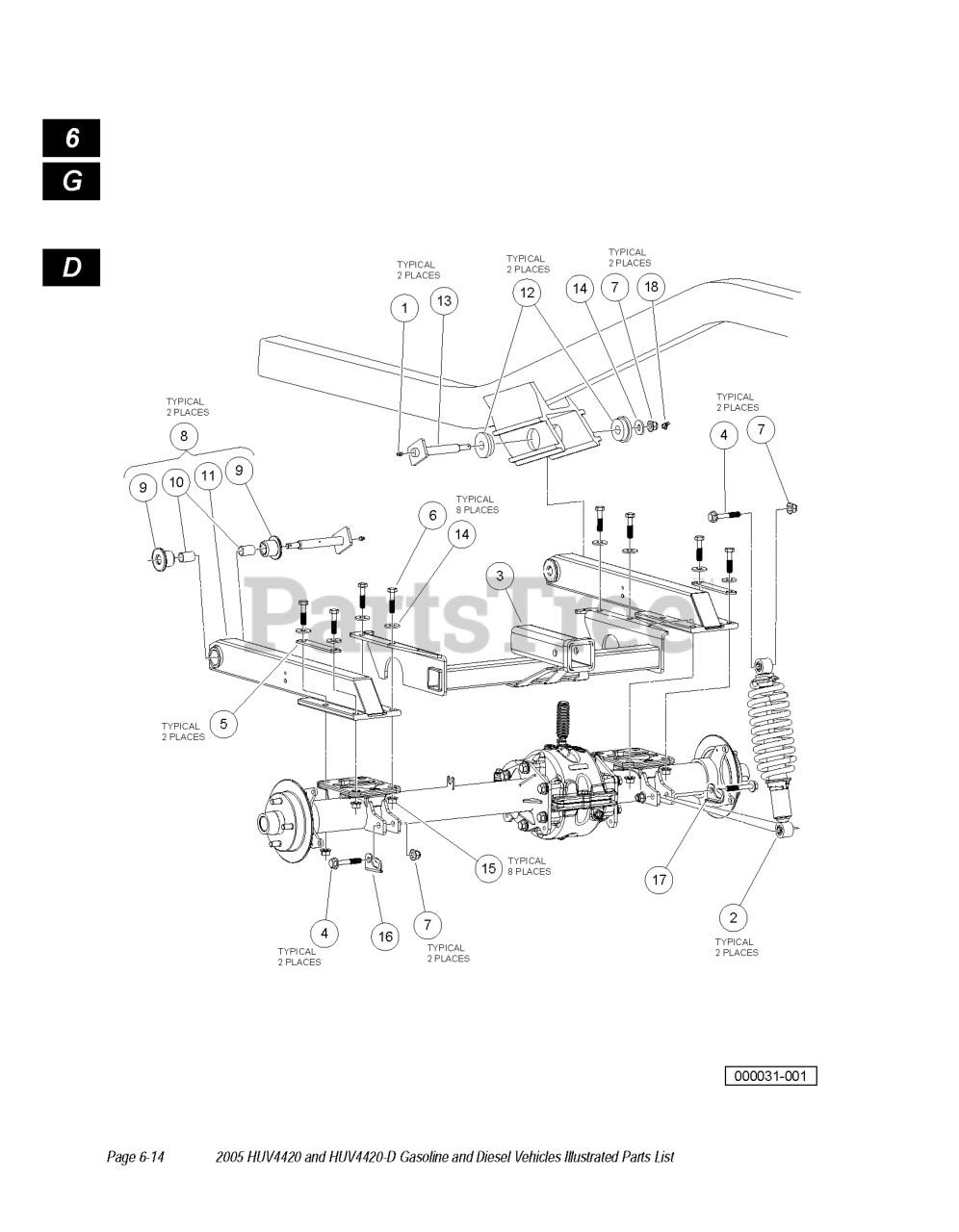

REAR SUSPENSION 2 Parts Diagram

  • Title

18

Husqvarna 603001763

COTTER-RUE RING

$

$

Not available

7

Husqvarna 603001312

NUT FLG, M12X1.75, NYLON GR 10

$

$

Not available

11

Husqvarna 603004117

SWINGARM, REAR, AWD

Note: AWD

$

$

Not available

15

Husqvarna 603001602

NUT

$

$

Not available

10

Husqvarna 603001148

BUSHING, TEFLON

$

$

Not available

2

Husqvarna 603000895

SHOCK, COIL OVER, REAR HD

Note: REAR

$

$

Not available

16

Husqvarna 603001606

BRKT, LINE, HYD, SHK MNT, DRV

Note: DRIVER

$

$

Not available

1

Husqvarna 603000264

FITTING, 1/4-28 THRD FRM GREAS

$4.99

$

In Stock, only 1 left!

0

4

Husqvarna 603001292

BOLT, FLG, M12X1.75X70

$

$

Not available

14

Husqvarna 603001599

WASHER, M12 HARD REGULAR

$

$

Not available

5

Husqvarna 603001310

WASHER, STRIP, SWINGARM

$

$

Not available

6

Husqvarna 603001311

BOLT FLG, M12X1.75X50

$

$

Not available

17

Husqvarna 603001607

BRKT, LINE, HYD, SHK MNT, PASS

Note: PASSENGER

$11.99

$

In Stock, only 1 left!

0

13

Husqvarna 603001597

PIN, SWINGARM, WELDMENT

$

$

Not available

9

Husqvarna 603000944

BUSHING, PIVOT, URETHANE

$

$

Not available

3

Husqvarna 603000941

WELDMENT, RECEIVER, REAR

Note: REAR

$

$

Not available
