HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) REAR DIFFERENTIAL Parts Diagram

4x4 Utility Vehicle

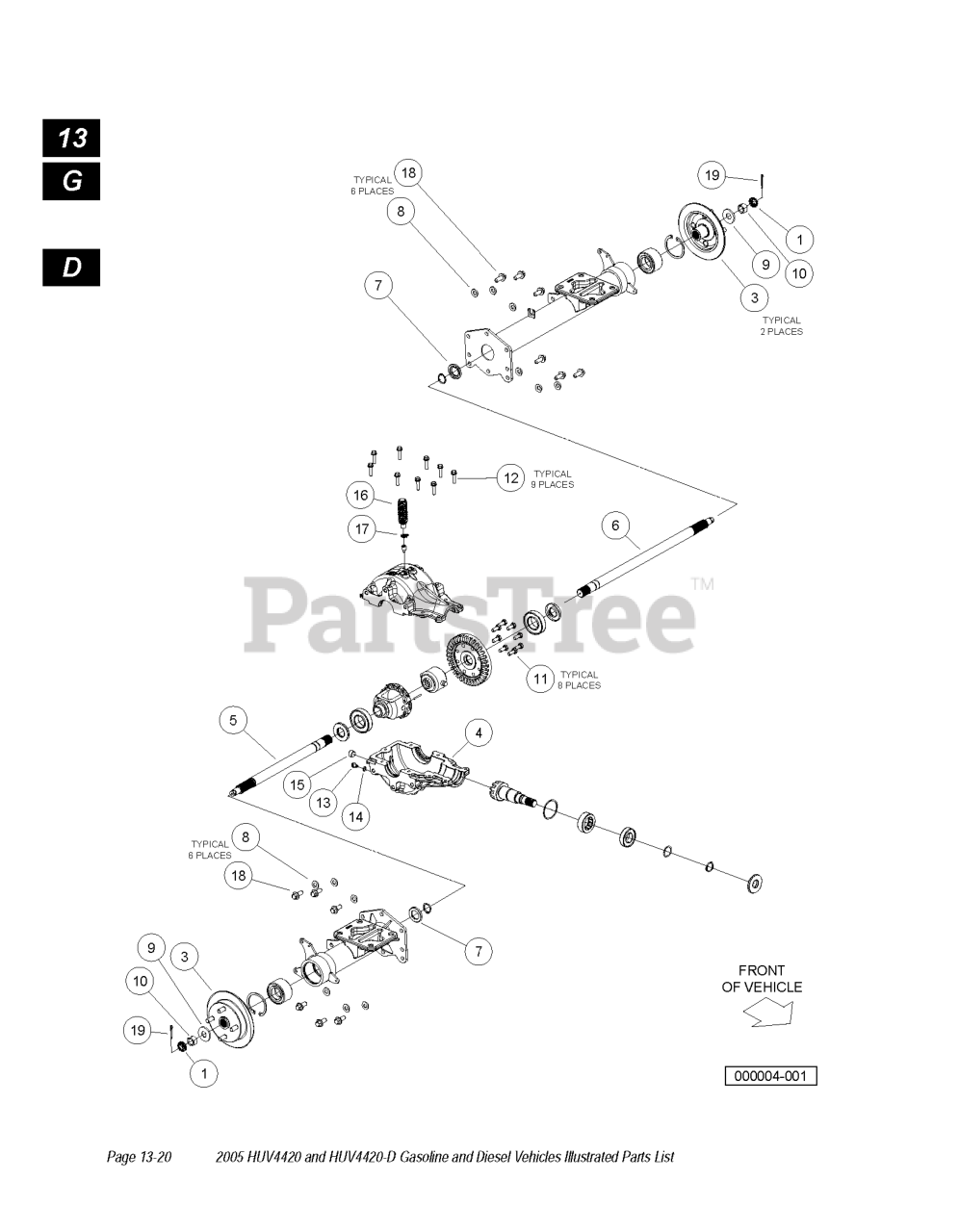

REAR DIFFERENTIAL Parts Diagram

  • Title

2

Husqvarna 603000867

LOCKING CAP, NUT

$

$

Not available

3

Husqvarna 603000926

ASSY, ROTOR, BRAKE, REAR
(Superseded to 586697101)

Note: REAR

$

$

Not available

13

Husqvarna 603001623

PLUG,3/8-16, HEX FLANGE

$

$

Not available

1

Husqvarna 603000955

AXLE, REAR

$

$

Not available

14

Husqvarna 603001624

WASHER, .625 X .382 X .60

$

$

Not available

11

Husqvarna 603001621

SCREW, M10 X 25

$

$

Not available

5

Husqvarna 603001116

AXLE, RH

Note: RIGHT

$

$

Not available

7

Husqvarna 603001590

WASHER, COUNTERBORED 51 X 30

$102.99

$

In Stock, only 1 left!

0

19

Husqvarna 603001633

PIN, COTTER, 5/32 X 1.25

$

$

Not available

16

Husqvarna 603001629

BELLOWS, VENT, UPPER HOUSING

$

$

Not available

10

Husqvarna 603001593

NUT, HEX, M20 X 1.5, MODIFIED

$

$

Not available

17

Husqvarna 603001630

CLAMP, HOSE, DW-9.5

$

$

Not available

8

Husqvarna 603001591

WASHER, BELLEVLE, 1.063 X .043

$

$

Not available

12

Husqvarna 603001622

SCREW, HEX FLANGE, M8 X 35

$

$

Not available

15

Husqvarna 603001628

PLUG, SQUARE SKIT, 1/12-14,PTF

$

$

Not available

9

Husqvarna 603001592

WASHER, BELLEVILLE, 49 X 4

$

$

Not available

4

Husqvarna 603001072

GEARCASE, LOWER, MACHINED

$

$

Not available

18

Husqvarna 603001632

SCREW, HEX FL, M12 X 1.75 X 30

$

$

Not available

6

Husqvarna 603001117

AXLE, LH

Note: LEFT

$

$

Not available
