HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) PARKING BRAKE Parts Diagram

4x4 Utility Vehicle

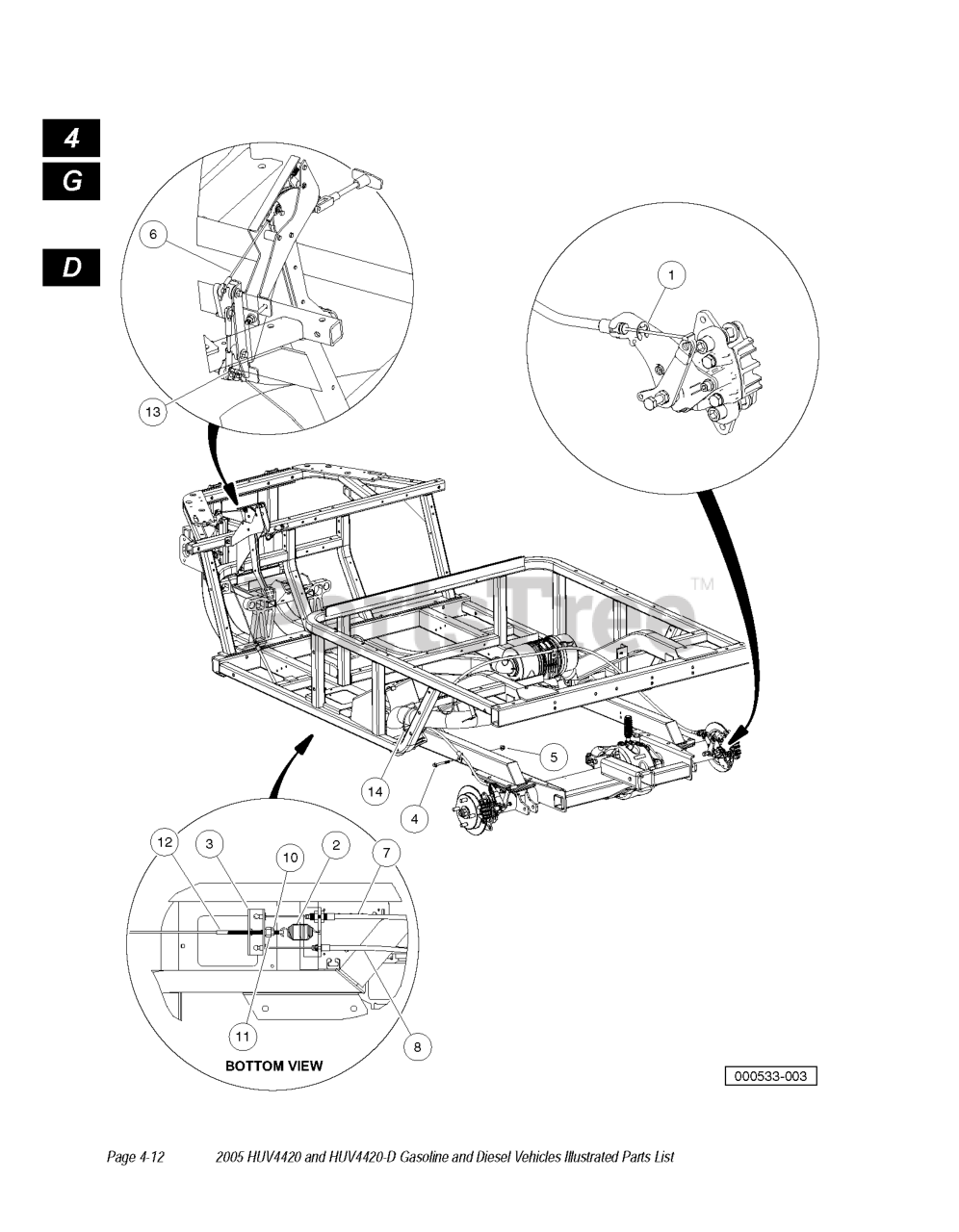

PARKING BRAKE Parts Diagram

  • Title
8

Husqvarna 603002925

CABLE, NONCOATED, PBRAKE, RGHT

Note: RIGHT

$

$

Not available

13

Husqvarna 603000063

PIN,CUT COTTER

$

$

Not available

11

Husqvarna 603000766

NUT, 5/16-24 HEX CONE

$

$

Not available

4

Husqvarna 603001306

BOLT FLG, M8X1.25X65

$

$

Not available

14

Husqvarna 603000093

TIE WRAP , 11" NYLON

$

$

Not available

9

Husqvarna 603002930

KIT, CABLE, BRAKE, CRANK, FR

$

$

Not available

7

Husqvarna 603002924

CABLE, NONCOATED, PBRAKE, LEFT

Note: LEFT

$

$

Not available

2

Husqvarna 603000175

SPRING, BRAKE RETURN

$

$

Not available

1

Husqvarna 603000130

E-CLIP, 1/2

$2.49

$

In Stock, only 2 left!

0

6

Husqvarna 531307109

CABLE, CRANK, BELL, FRONT

Note: FRONT

$

$

Not available

5

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

3

Husqvarna 603000632

EQUALIZER BRACKET, PREC

$

$

Not available

10

Husqvarna 603000109

NUT, 5/16-24 HEX

$

$

Not available
