HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) OIL FILTER Parts Diagram

4x4 Utility Vehicle

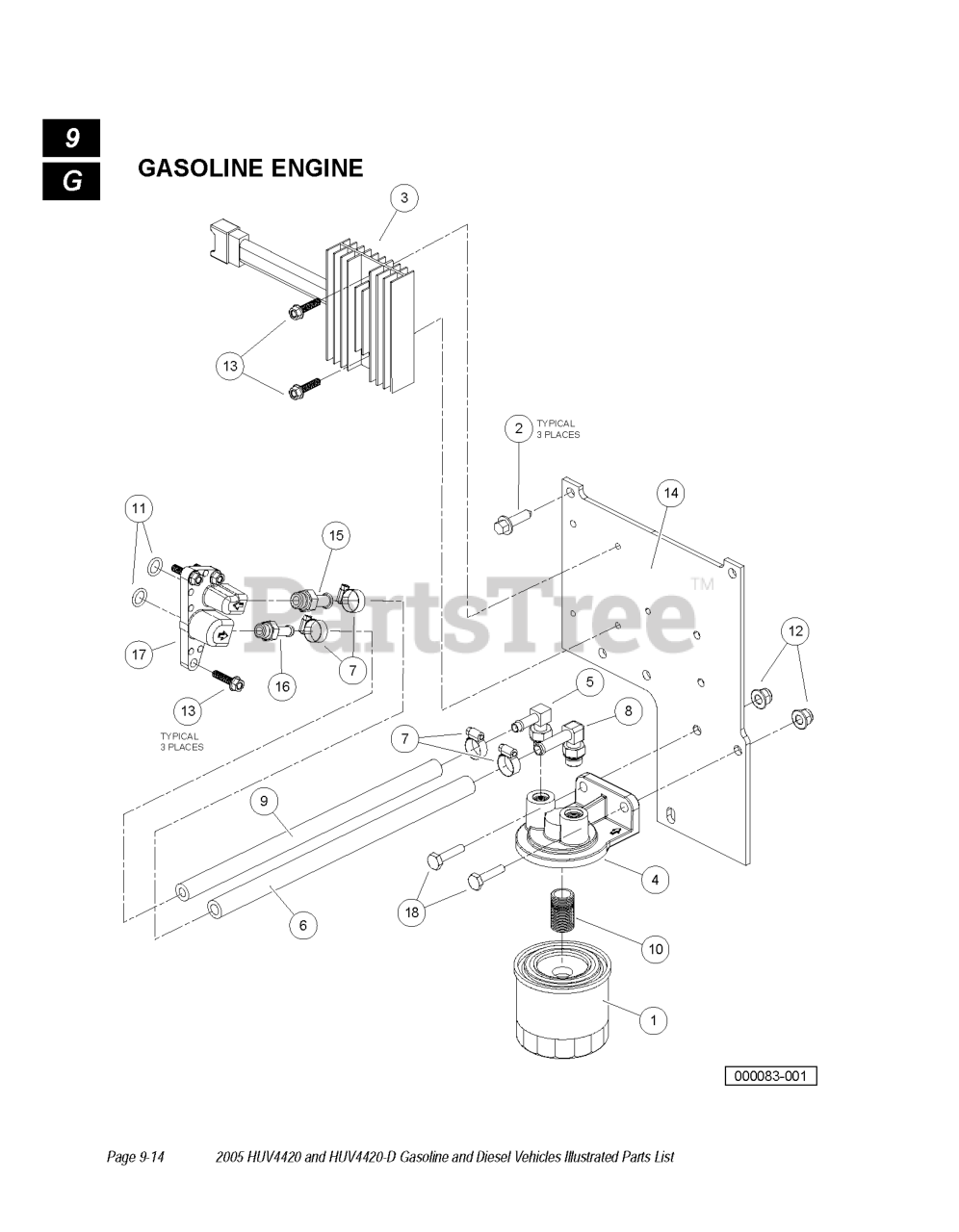

OIL FILTER Parts Diagram

  • Title

18

Husqvarna 603000443

BOLT, M8 X 1.25 X 30

$

$

Not available

2

Husqvarna 603000869

SCREW-M8 X 1.25 30, TRI, HX F

$

$

Not available

8

Husqvarna 603001099

ADAPTER, 90-6 ORB, 3/8 TUBE

$

$

Not available

12

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

7

Husqvarna 603001057

CLAMP, HOSE #4

$

$

Not available

13

Husqvarna 603001587

SCREW, M6 X 1 X 25 THD FORM

$

$

Not available

17

Husqvarna 603000910

ADAPTER, OIL FILER, ENG HONDA

$

$

Not available

15

Husqvarna 603001682

ADAPTER, ORS -6, 3/8 HOSE, ST

$

$

Not available

3

Husqvarna 603000885

REGULATOR, VOLTAGE, GX620

$

$

Not available

6

Husqvarna 603001056

HOSE, 3/8 REMOTE OIL, HONDA

$

$

Not available

10

Husqvarna 603001142

NIPPLE, M20, REMOTE OIL

$

$

Not available

5

Husqvarna 603001015

ADAPTER, 90-5 ORB, 5/16 TUBE

$

$

Not available

9

Husqvarna 603001100

HOSE, 5/16, REMOTE OIL, HONDA

$

$

Not available

1

Husqvarna 603000006

FILTER, OIL

$

$

Not available

16

Husqvarna 603001683

ADAPTER, ORS -5, 5/16 HOSE, ST

$

$

Not available

14

Husqvarna 603001667

PLATE, FUEL/OIL SYSTEM

$

$

Not available

11

Husqvarna 603001168

O-RING 11.8 X 2.4

$

$

Not available

4

Husqvarna 603000911

BRACKET, OIL FILTER MOUNT

$

$

Not available
