HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) OIL CIRULATION Parts Diagram

4x4 Utility Vehicle

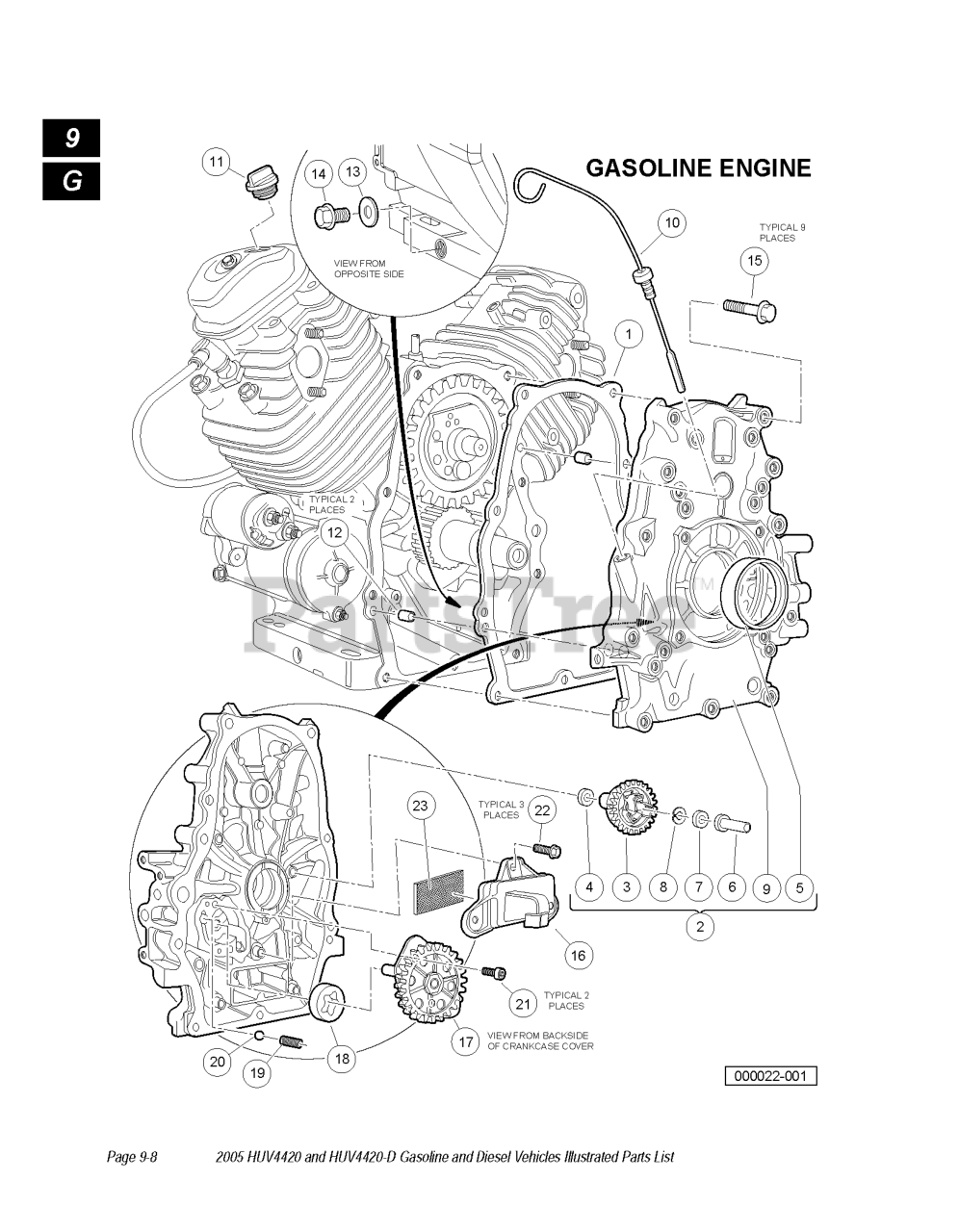

OIL CIRULATION Parts Diagram

  • Title

11

Husqvarna 603001490

CAP, OIL FILLER

$

$

Not available

17

Husqvarna 603001497

COVER ASSY., OIL PUMP

$

$

Not available

23

Husqvarna 603001694

SCREEN OIL FILTER

$

$

Not available

15

Husqvarna 603001494

BOLT, FLANGE, M8 X 1.25 X 50

$

$

Not available

6

Husqvarna 603001691

SLIDER, GOVERNOR

$

$

Not available

1

Husqvarna 603001487

GASKET, CASE COVER

$

$

Not available

19

Husqvarna 603001499

SPRING, RELIEF VALVE

$

$

Not available

16

Husqvarna 603001496

COVER, OIL FILTER

$

$

Not available

20

Husqvarna 603001500

BALL, STEEL, 3/8, #12

$

$

Not available

22

Husqvarna 603001502

BOLT, FLANGE, M6 X 1 X 20

$

$

Not available

14

Husqvarna 603001493

BOLT, DRAIN PLUG, M14

$

$

Not available

4

Husqvarna 603001503

WASHER, PLAIN, M6

$

$

Not available

5

Husqvarna 603001690

SEAL, OIL, 38 X 58 X 9

$

$

Not available

8

Husqvarna 603001693

CLIP, GOVERNOR

$

$

Not available

21

Husqvarna 603001501

BOLT, SOCKET

$

$

Not available

10

Husqvarna 603001489

DIPSTICK, OIL

$

$

Not available

18

Husqvarna 603001498

ROTOR, OIL PUMP, OUTER

$

$

Not available

12

Husqvarna 603001491

PIN A, DOWEL, 8 X 14

$

$

Not available

3

Husqvarna 603001495

GOVERNOR ASSY.

$

$

Not available

13

Husqvarna 603001492

WASHER, DRAIN PLUG, M14

$

$

Not available

7

Husqvarna 603001692

WASHER, 6 X 16

$

$

Not available

2

Husqvarna 603001488

COVER ASSY., CRANKCASE

$

$

Not available
