HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) MAINTENANCE 3 Parts Diagram

4x4 Utility Vehicle

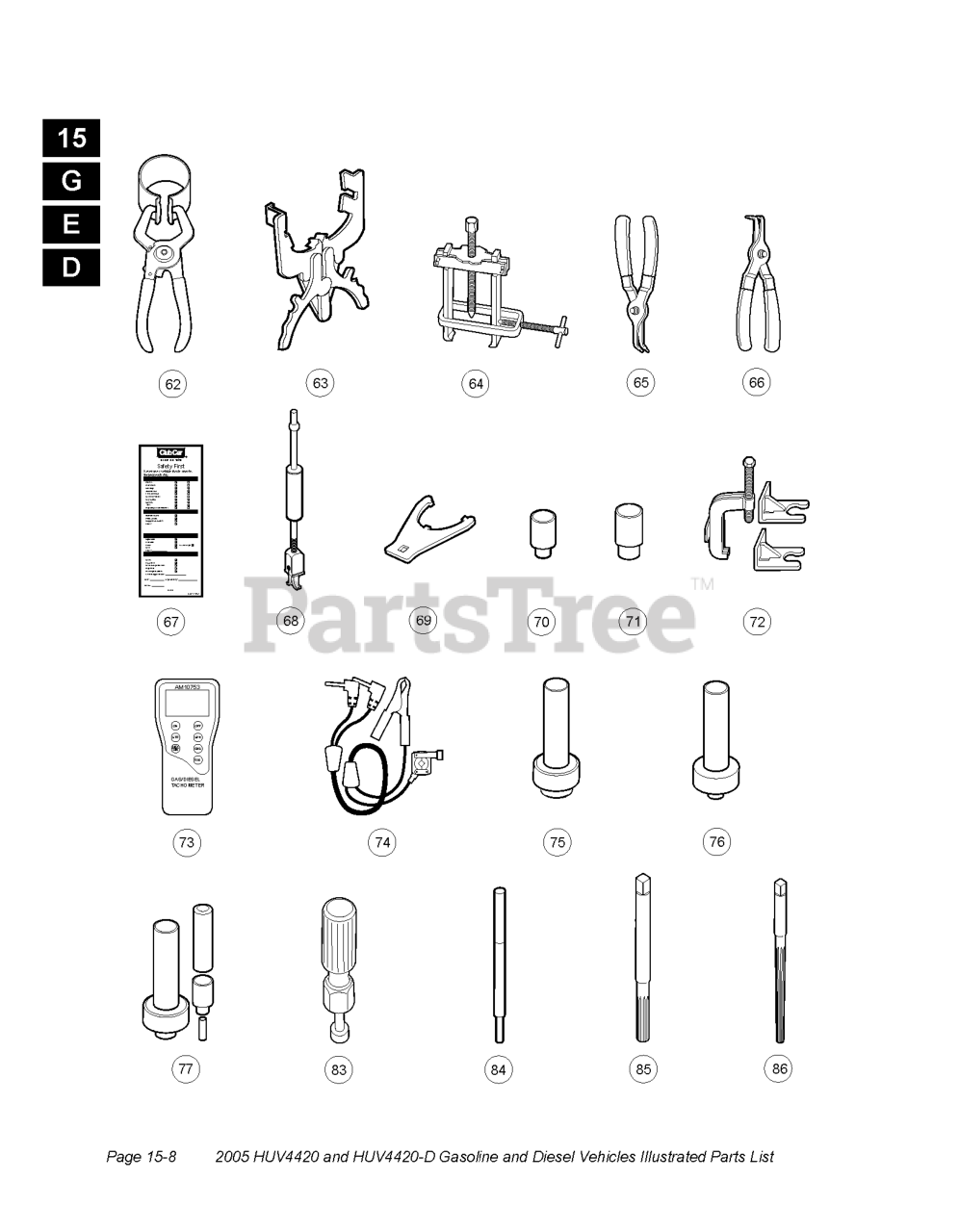

MAINTENANCE 3 Parts Diagram

  • Title

73

Husqvarna 603002007

TACHOMETER GAS/DIESEL

Note: Includes gasoline engine pick up lead only.

$

$

Not available

70

Husqvarna 603001919

Steering Column Bearing Press Tool

$

$

Not available

69

Husqvarna 603001918

WRENCH, SPANNER

Note: For coil over shock front suspension vehicles only.

$

$

Not available

83

Husqvarna 603001929

DRIVER, VALVE GUIDE, 6.6. MM

Note: For Honda GX620 Gasoline Engines

$

$

Not available

66

Husqvarna 603001915

INTERNAL SNAP RING PLIER 9O

$

$

Not available

76

Husqvarna 603001925

Transaxle Pinion Seal Tool

$

$

Not available

75

Husqvarna 603001924

TRANS-AXLE, AXLE SEAL TOOL

$

$

Not available

84

Husqvarna 603001930

VALVE GUIDE REAMER

Note: "FE290, FE350 and FE400 engines."

$

$

Not available

67

Husqvarna 603001916

SAFETY FIRST CARD

Note: 50 PER PACK

$

$

Not available

72

Husqvarna 603001921

PULLER, STEERING WHEEL

$

$

Not available

77

Husqvarna 603001926

Transmission Tool Kit

$

$

Not available

71

Husqvarna 603001920

TOOL-STEERING RETAINING RING

$

$

Not available

65

Husqvarna 603001914

EXTERNAL SNAP RING PLIERS

$

$

Not available

62

Husqvarna 603001910

KIT, PISTON RING COMPRESSOR

Note: "FE290, FE350 and FE400 engines."

$

$

Not available

78

Husqvarna 603000005

Tune-Up Kit, All OHV

Note: "For Kawasaki Engines, includes air filter, spark plug, oil filter, fuel filters, Not Shown"

$

$

Not available

85

Husqvarna 603001931

REAMER-VALVE GUIDE

Note: For Honda GX620 Gasoline Engines

$

$

Not available

86

Husqvarna 603001927

VALVE SEAT CUTTER GUIDE

$

$

Not available

82

Husqvarna 603001928

VALVE CLEAR ADJ SCREW HOLDER

Note: For FE290 engines only.

$

$

Not available

79

Husqvarna 603000035

Tune-Up Kit, Gx620

Note: "For Honda Engines, includes air filter, spark plug, oil filter, fuel filters, Not Shown"

$

$

Not available

63

Husqvarna 603001911

PISTON RING PLIER

Note: For Kawasaki engines only

$

$

Not available

68

Husqvarna 603001917

SEAL PULLER

$

$

Not available
