HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) FRONT SUSPENSION 3 Parts Diagram

4x4 Utility Vehicle

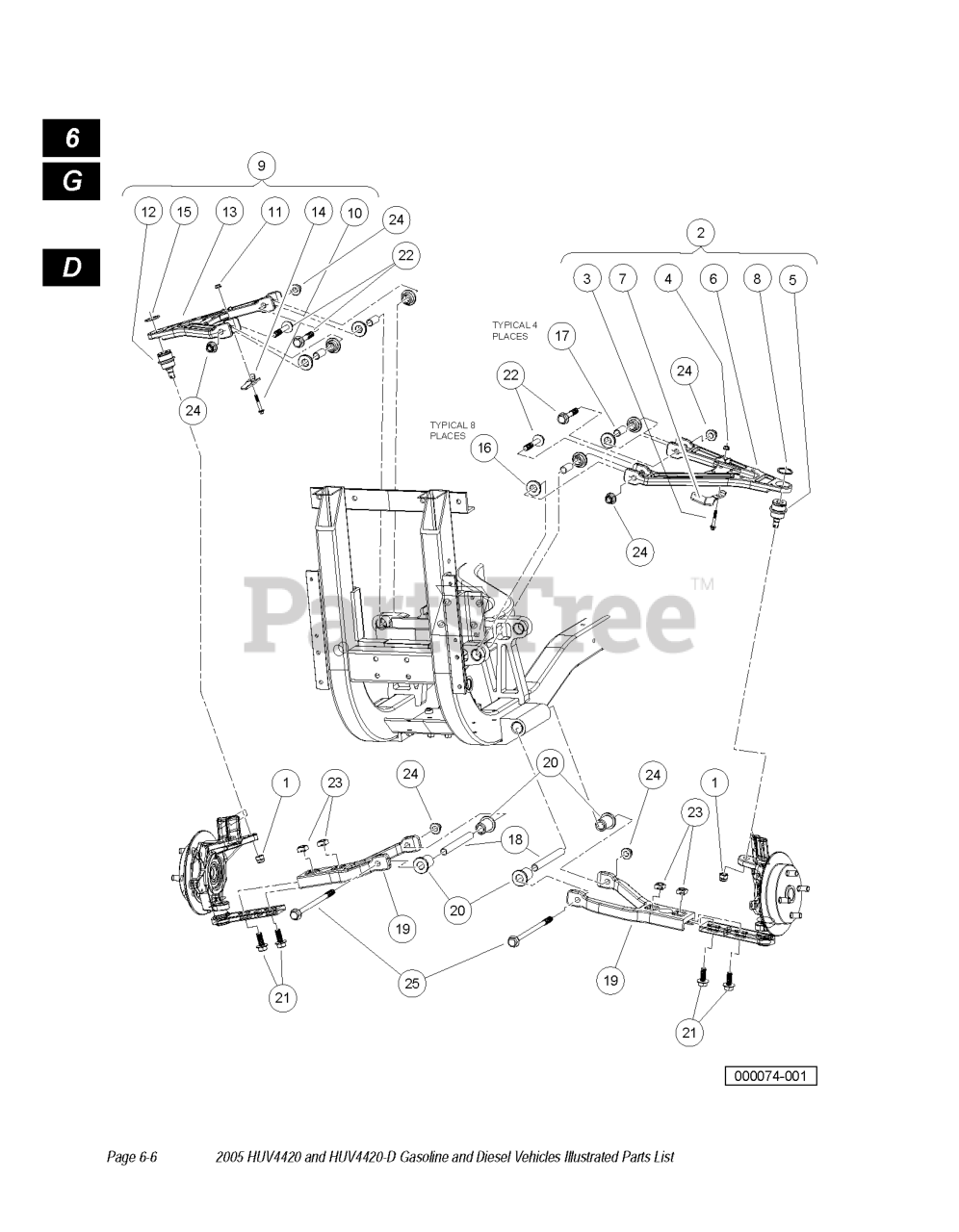

FRONT SUSPENSION 3 Parts Diagram

  • Title
19

Husqvarna 603001063

ARM, LOWER

Note: LOWER

$

$

Not available

23

Husqvarna 603001303

NUT, SQUARE, M12 X 1.75

$

$

Not available

3

Husqvarna 603000873

BOLT - M6X1.0X40 HEX FLNG HD

$

$

Not available

2

Husqvarna 603000900

SUB-ASSEMBLY, A-ARM, UPPER LH

$

$

Not available

5

Husqvarna 603000891

BALL JOINT

$

$

Not available

15

Husqvarna 603001684

RING, RETAINING, EXT, 1-1/4"

$3.49

$

In Stock, Qty 9

0

6

Husqvarna 603000902

A-ARM, UPPER, LEFT
(Superseded to 603000900)

Note: UPPER

$

$

Not available

11

Husqvarna 603001299

NUT-M6X1.0 FLNG ALL MTL LOCK

$

$

Not available

4

Husqvarna 603001299

NUT-M6X1.0 FLNG ALL MTL LOCK

$

$

Not available

13

Husqvarna 603000903

A-ARM, UPPER, RIGHT
(Superseded to 603000901)

Note: "UPPER, RIGHT"

$

$

Not available

17

Husqvarna 603001022

SLEEVE, UPPER

Note: UPPER

$

$

Not available

25

Husqvarna 603003544

BOLT FLG, M12 X 1.75 X 200 10.

$

$

Not available

10

Husqvarna 603000873

BOLT - M6X1.0X40 HEX FLNG HD

$

$

Not available

16

Husqvarna 603000956

BUSHING, A-ARM

$

$

Not available

18

Husqvarna 603001023

SLEEVE, LOWER

Note: LOWER

$

$

Not available

9

Husqvarna 603000901

SUB-ASSEMBLY,A-ARM, UPPER, RH

Note: UPPER

$

$

Not available

21

Husqvarna 603001170

BOLT, FLG, M12X1.75X30

$

$

Not available

12

Husqvarna 603000891

BALL JOINT

$

$

Not available

20

Husqvarna 603001131

BUSHING, LOWER ARM

Note: LOWER

$

$

Not available

8

Husqvarna 603001684

RING, RETAINING, EXT, 1-1/4"

$3.49

$

In Stock, Qty 9

0

22

Husqvarna 603001292

BOLT, FLG, M12X1.75X70

$

$

Not available

14

Husqvarna 603001140

BRACKET, BRAKELINE, RIGHT

Note: RIGHT

$

$

Not available

24

Husqvarna 603001312

NUT FLG, M12X1.75, NYLON GR 10

$

$

Not available

1

Husqvarna 603000684

LOCKNUT, M12-1.25 NYLON

$

$

Not available

7

Husqvarna 603001139

BRACKET, BRAKELINE, LEFT

$

$

Not available
