HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) ENGINE Parts Diagram

4x4 Utility Vehicle

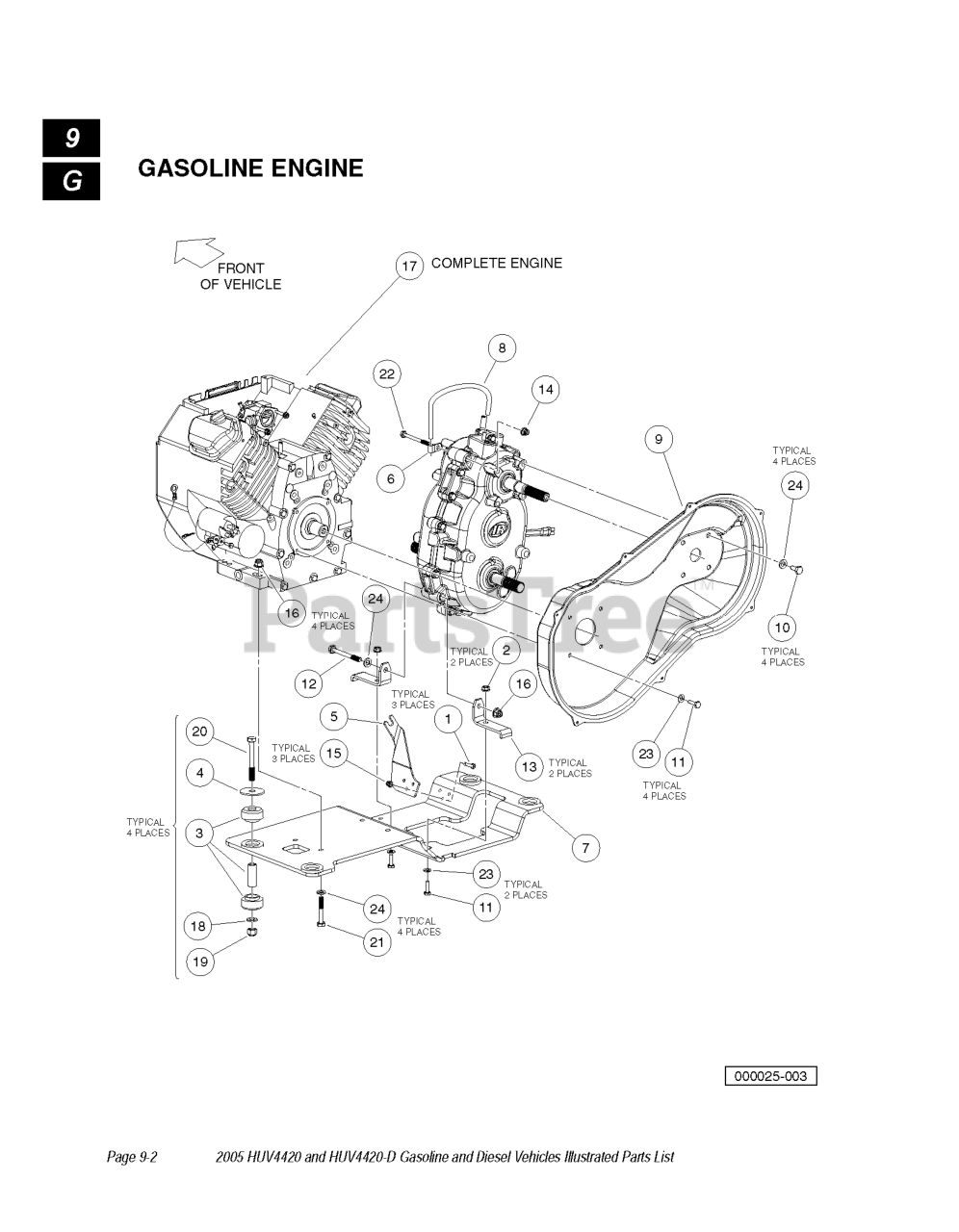

ENGINE Parts Diagram

  • Title

22

Husqvarna 603000449

BOLT, M8 X 1.25 X 80

$

$

Not available

13

Husqvarna 603001186

BRACKET, TRANSMISSION MTG

$

$

Not available

6

Husqvarna 603000966

P-CLAMP, INSULATED .312 IN

$

$

Not available

24

Husqvarna 603000451

WASHER, M10 HARD

$

$

Not available

3

Husqvarna 603000908

ISOLATOR, RING AND BUSHING

$

$

Not available

17

Husqvarna 531308256

ENGINE, HONDA, NO ACR
(Superseded to 603004125)

$

$

Not available

7

Husqvarna 603000986

PLATE, ENG MTG, WELD, HONDA

$

$

Not available

10

Husqvarna 603001165

BOLT, M10 X 1.5 X 20 LOCTITE

$

$

Not available

5

Husqvarna 603000937

BRACKET, FNR TRANS CABLE

$

$

Not available

1

Husqvarna 603000157

SCREW

$

$

Not available

21

Husqvarna 603000441

BOLT, M10 X 1.5 X 60

$

$

Not available

14

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

18

Husqvarna 603000437

WASHER, M12 HARD
(Superseded to 603000447)

$

$

Not available

15

Husqvarna 603001317

NUT FLG, M6 X 1.0 NYLON

$

$

Not available

20

Husqvarna 603000440

BOLT, M12 X 1.75 X 90

$

$

Not available

4

Husqvarna 603000909

WASHER, SNUBBING, RING N BUSH

$

$

Not available

16

Husqvarna 603001586

NUT FLG M10 X 1.5 NYLON

$

$

Not available

12

Husqvarna 603001169

BOLT, M10 X 1.5 X 100 LOCTITE

$

$

Not available

8

Husqvarna 603001111

HOSE, VENT, TRANSMISSION

$

$

Not available

23

Husqvarna 603000450

WASHER, M8 HARD

$

$

Not available

9

Husqvarna 603001114

COVER, CVT INNER, HONDA

$

$

Not available

2

Husqvarna 603001298

NUT FLG, M8 X 1.25 MECH DEF

$2.49

$

In Stock, Qty 11

0

11

Husqvarna 603001166

BOLT, M8 X 1.25 X 25 LOCTITE

$

$

Not available
