HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) ELECTRICAL 2 Parts Diagram

4x4 Utility Vehicle

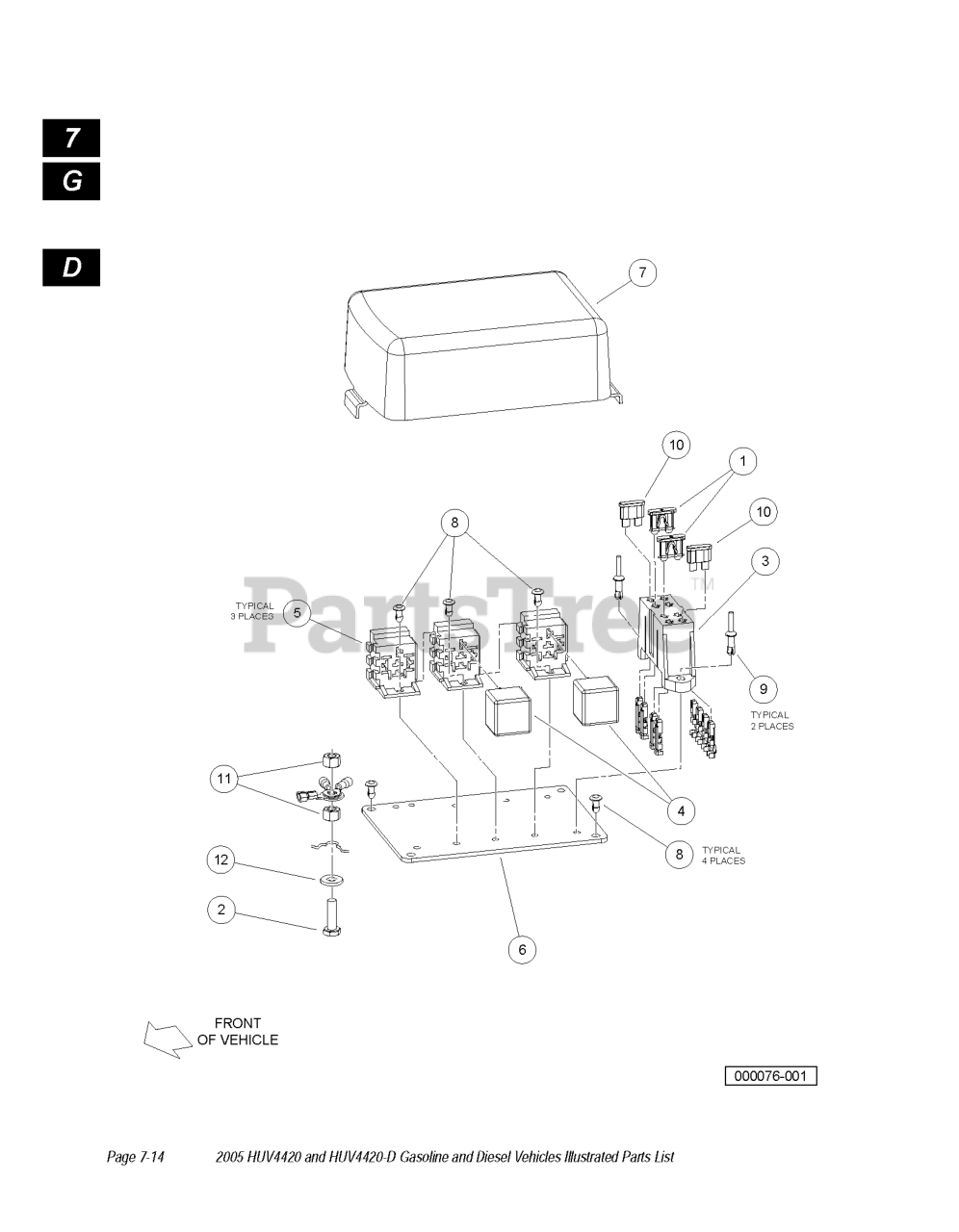

ELECTRICAL 2 Parts Diagram

  • Title
5

NEEDS DESCRIPTION

Note: Special order item available upon request.

$

$

Not available

10

Husqvarna 603001177

FUSE, ATC/ATO, 25A

Note: 25 AMP

$

$

Not available

7

Husqvarna 603000994

COVER, ELECTRICAL

$

$

Not available

11

Husqvarna 603000064

LOCKNUT, 1/4-20 DIMPLED

$

$

Not available

8

Husqvarna 603001067

FASTENER, PUSH-IN

$

$

Not available

6

Husqvarna 603000993

PLATE, ELECTRICAL

$

$

Not available

12

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available

3

Husqvarna 603000267

FUSE BLOCK

$

$

Not available

9

Husqvarna 603001068

RIVET, DRIVE

$

$

Not available

1

Husqvarna 603000135

10 AMP FUSE

Note: 10 AMP

$

$

Not available

4

Husqvarna 603000992

RELAY, MINI ISO, SPDT

$

$

Not available
