HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) CARGO BOX Parts Diagram

4x4 Utility Vehicle

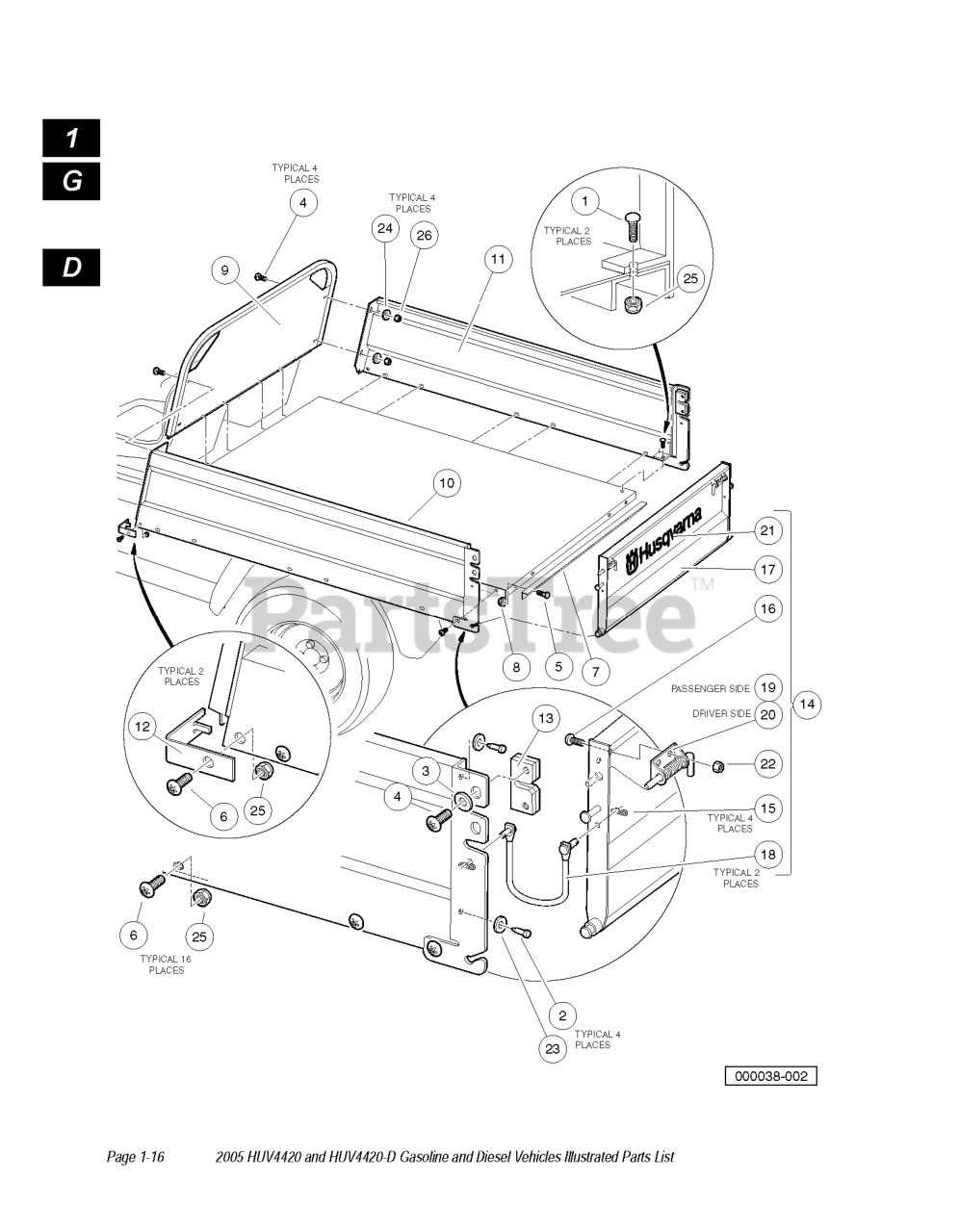

CARGO BOX Parts Diagram

  • Title

8

Husqvarna 603000616

LOCKNUT, 5/16-18 HEX FLANGE

$

$

Not available

20

Husqvarna 603000809

SPRING LATCH LEFT

Note: RIGHT

$

$

Not available

16

Husqvarna 603000226

SCREW

$

$

Not available

11

Husqvarna 603000804

RIGHT PANEL WELDMENT

$

$

Not available

15

Husqvarna 603000172

HAIR PIN CLIP

$

$

Not available

4

Husqvarna 603000226

SCREW

$

$

Not available

7

Husqvarna 603000573

BOX BED TAILGATE ANGLE

$

$

Not available

3

Husqvarna 603000222

WASHER

$

$

Not available

5

Husqvarna 603000232

STUD

$

$

Not available

10

Husqvarna 603000803

LEFT PANEL WELDMENT

$

$

Not available

24

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available

1

Husqvarna 603000107

BOLT, 5/16-18 X 1.00 SQ.NECK

$

$

Not available

9

Husqvarna 603000802

FRONT PANEL WELDMENT

$

$

Not available

21

Husqvarna 603001792

DECAL, TAILGATE,OEM

Note: TAILGATE

$

$

Not available

18

Husqvarna 603000806

TETHER ASSEMBLY

$

$

Not available

13

Husqvarna 603000807

SLAM LATCH

$

$

Not available

22

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

6

Husqvarna 603000255

SCREW, 5/16-18 X .88 TRX TRUSS

$

$

Not available

14

Husqvarna 603000813

ASM, TAILGATE, OEM

$

$

Not available

19

Husqvarna 603000808

SPRING LATCH RIGHT

Note: LEFT

$

$

Not available

25

Husqvarna 603000078

LOCKNUT, 5/16-18 NYLON INSERT

$

$

Not available

2

Husqvarna 603000108

RUBBER BUMPER

$

$

Not available

23

Husqvarna 603000816

WASHER, RUBBER 3/8

$

$

Not available

26

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

12

Husqvarna 603000805

FRONT CORNER CAP

$

$

Not available
