HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) BRACKETS Parts Diagram

4x4 Utility Vehicle

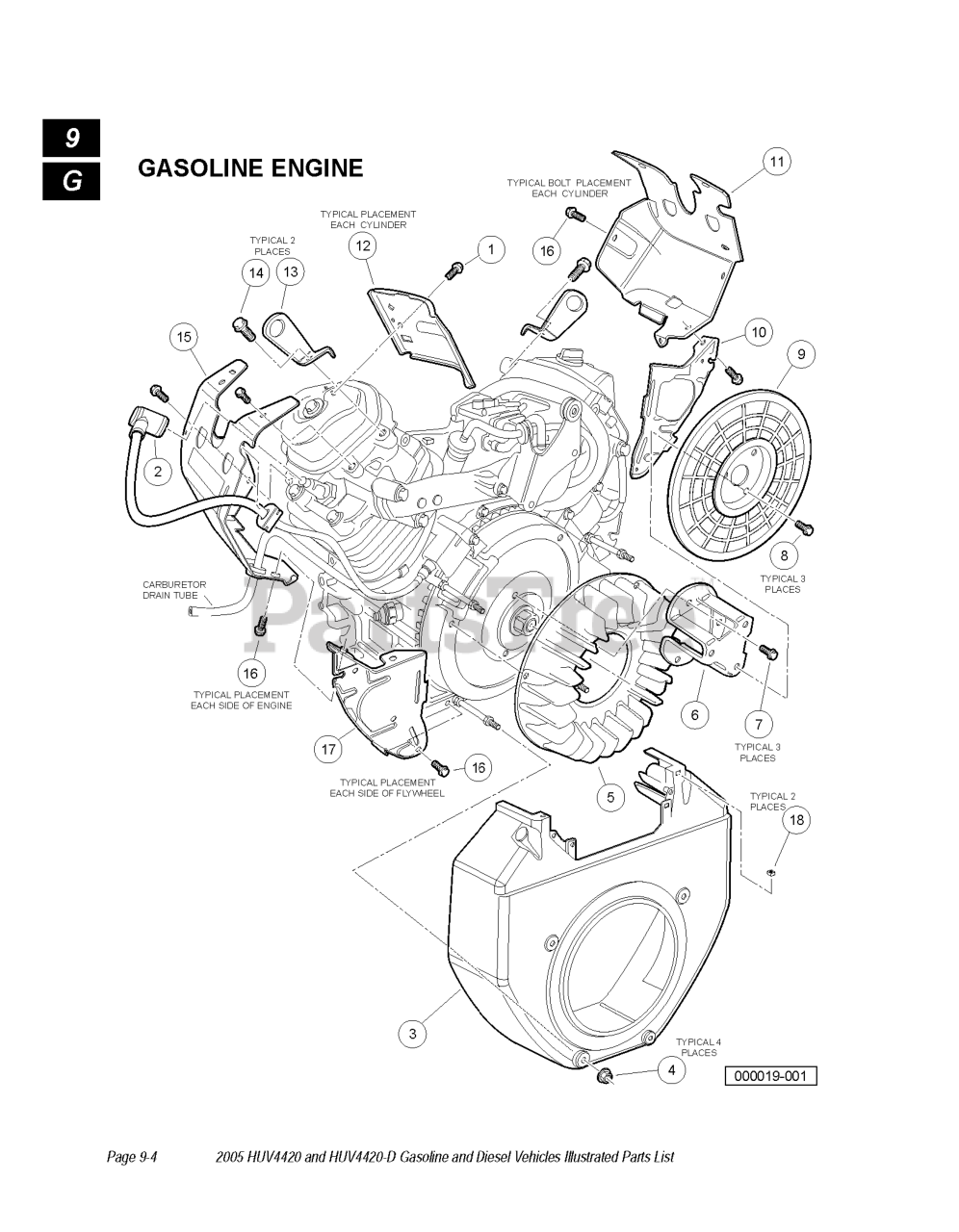

BRACKETS Parts Diagram

  • Title

2

Husqvarna 603001568

CAP ASSY, NOISE SUPPRESSOR

$

$

Not available

14

Husqvarna 603001580

BOLT, FLANGE, M8 X 1.25 X 20

$

$

Not available

16

Husqvarna 603001583

BOLT, FLANGE, M6 X 1 X 12, CT2

$

$

Not available

10

Husqvarna 603001576

PLATE, R SIDE

Note: RIGHT

$

$

Not available

3

Husqvarna 603001569

COVER, FAN, BRIGHT RED

Note: RED

$

$

Not available

9

Husqvarna 603001575

GRID, SCREEN, P.T.O.

$

$

Not available

19

NEEDS DESCRIPTION

Note: The part number for a complete engine

$

$

Not available

7

Husqvarna 603001573

BOLT, FLANGE, M8 X 1.25 X 16

$

$

Not available

11

Husqvarna 603001577

SHROUD, R

Note: R

$

$

Not available

15

Husqvarna 603001581

SHROUD, L

Note: L

$

$

Not available

4

Husqvarna 603001570

NUT, FLANGE, M6

$

$

Not available

17

Husqvarna 603001584

PLATE, L SIDE

Note: LEFT

$

$

Not available

18

Husqvarna 603001778

NUT, SQUARE, 5MM

$

$

Not available

8

Husqvarna 603001574

BOLT, FLANGE, M6 X 1 X 12

$

$

Not available

13

Husqvarna 603001579

HANGER, ENGINE

$

$

Not available

12

Husqvarna 603001578

SHROUD, HEAD

$

$

Not available

6

Husqvarna 603001572

HOLDER, SCREEN GRID

$

$

Not available

1

Husqvarna 603001483

BOLT, FLANGE, M6 X 11 X 4

$

$

Not available

5

Husqvarna 603001571

FAN, COOLING

$

$

Not available
