HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Tilt Bed and Hinge Parts Diagram

4x4 Utility Vehicle

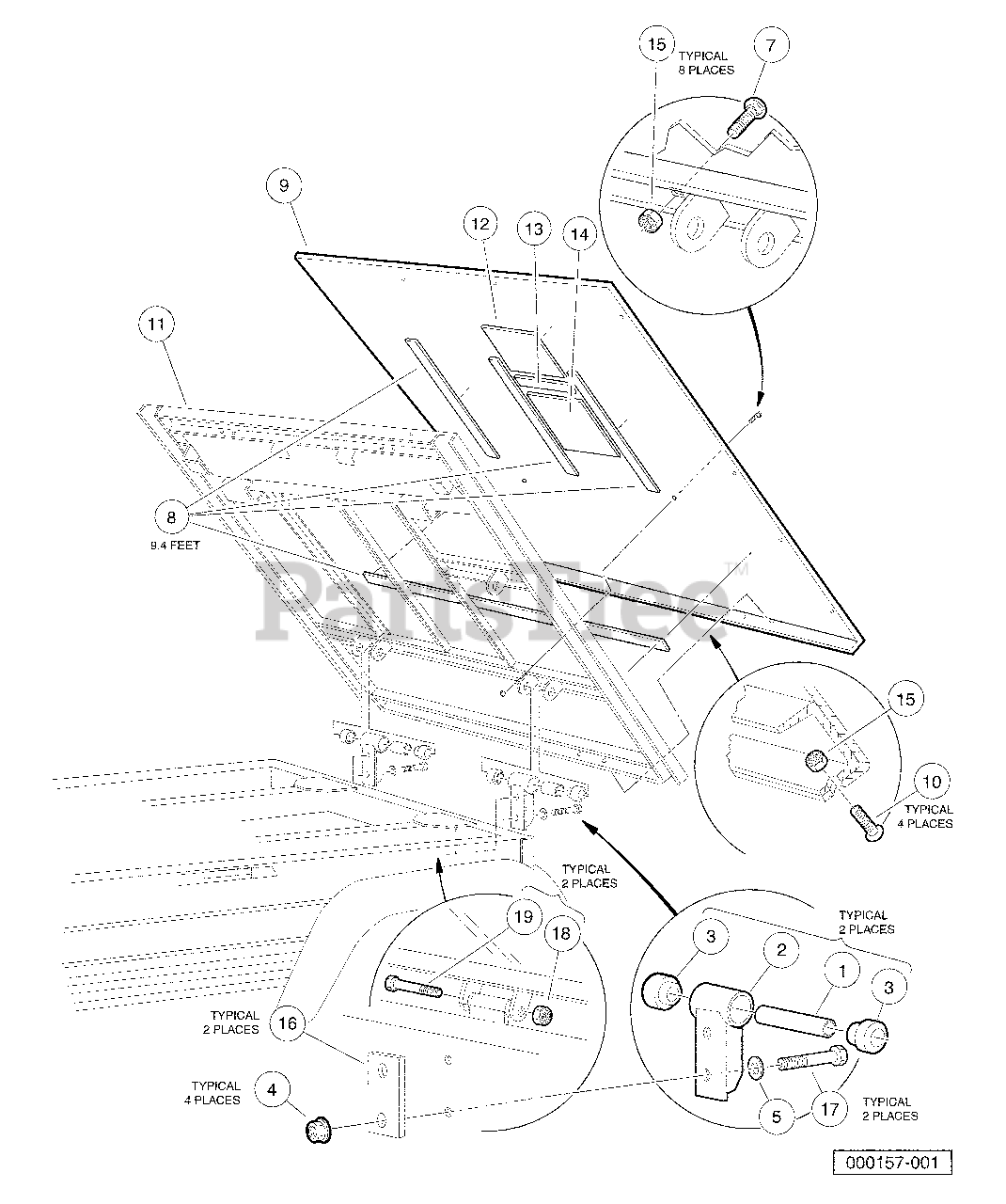

Tilt Bed and Hinge Parts Diagram

  • Title

1

Husqvarna 603000136

Bushing, Steel

$

$

Not available

2

Husqvarna 603000250

Hinge

$

$

Not available

3

Husqvarna 603000263

Bushing, Urethane

$

$

Not available

4

Husqvarna 603000780

Locknut, 3/8-16 Flanged Dimple

$

$

Not available

5

Husqvarna 603000781

Washer, 3/8 Type B Hard Flat

$

$

Not available

6

Husqvarna 603000797

Assembly, Tilt Bed, Electric Lift

Note: (includes items 7 through 14)

$

$

Not available

7

Husqvarna 603000107

Bolt, Carriage, 5/16-18 X 1.00

$

$

Not available

8

Husqvarna 603000229

Tape, Vinyl Foam 1/8" x 3/4"

$

$

Not available

9

Plate, Floor Bed

$

$

Not available

10

Frame Assembly

$

$

Not available

11

Husqvarna 603000255

Screw, 5/16-18 X 0.88 Torx Truss-Head

$

$

Not available

12

Husqvarna 603001812

Foam, Barrier, Heat, Bed, Frt

$

$

Not available

13

Husqvarna 603001604

Foam, Barrier, Heat, Bed, Rail

$

$

Not available

14

Husqvarna 603000078

Locknut, 5/16-18 Nylon Insert

$

$

Not available

15

Husqvarna 603001286

Plate, Back

$

$

Not available

16

Husqvarna 603000080

Bolt, 3/8-16 X 3.00 Hex Head

$

$

Not available

17

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available

18

Husqvarna 603000096

Screw, 3/8-16 X 3.375 Hex Cap

$

$

Not available
