HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Rops Parts Diagram

4x4 Utility Vehicle

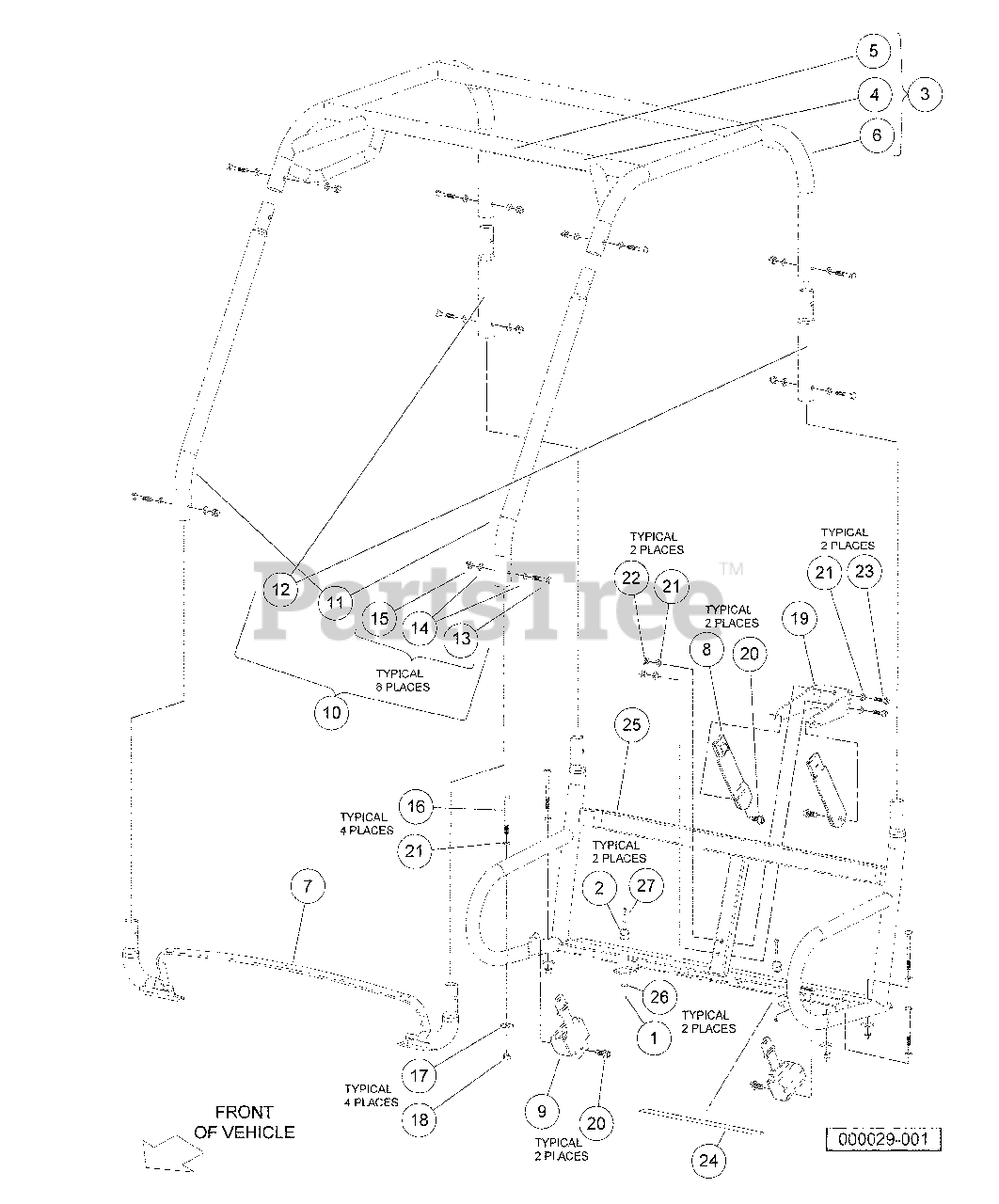

Rops Parts Diagram

  • Title
1

Husqvarna 603000558

Locknut, M6-1.00 Nylon Insert

$

$

Not available

2

Husqvarna 603000773

Seat Holder Base

$

$

Not available

3

Husqvarna 603000988

Weldment, Top, ROPS

Note: (includes items 4 through 6)

$

$

Not available

4

Husqvarna 603001106

Decal, Young Driver Warning

$

$

Not available

5

Husqvarna 603001314

Decal, ROPS Certification/Warning

$

$

Not available

6

Husqvarna 603003606

Weldment, ROPS, Top, Unlabeled

$

$

Currently unavailable

7

Husqvarna 603000989

Weldment, Support, ROPS

$

$

Not available

8

Husqvarna 603001065

Buckle, Seat Belt with Sleeve

$

$

Not available

9

Husqvarna 603001066

Retractor, Seat Belt
(Superseded to 603001065)

$

$

Not available

10

Husqvarna 603001160

Kit, ROPS

Note: (includes items 11 through 15)

$

$

Not available

11

Husqvarna 603000990

Tube, Support, Front, ROPS

$

$

Not available

12

Husqvarna 603000991

Tube, Support, Rear, ROPS

$

$

Not available

13

Husqvarna 603001672

Bolt, M10 X 55, Zn-Ni

Note: (Black)

$

$

Not available

14

Husqvarna 603001673

Washer, Hard, M10, Zn-Ni/Blk

$

$

Not available

15

Husqvarna 603001674

Nut, Hex Cap, M10, Zn-Ni/Blk

$

$

Not available

16

Husqvarna 603001759

Bolt, M10x1.50x100

Note: (Black)

$

$

Not available

17

Husqvarna 603001174

Washer Hard,m10

$

$

Not available

18

Husqvarna 603001300

Nut Flg M10 X 1.5 Mech Def

$

$

Not available

19

Husqvarna 603001585

Bracket, Seatbelt, Bolt-On

$

$

Not available

20

Husqvarna 603001589

Screw,m12x1.75x30 Thd Form Blk

$

$

Not available

21

Husqvarna 603001673

Washer, Hard, M10, Zn-Ni/Blk

$

$

Not available

22

Husqvarna 603001674

Nut, Hex Cap, M10, Zn-Ni/Blk

$

$

Not available

23

Husqvarna 603001760

Bolt, M10 X 45, Zn-Ni

Note: (Black)

$

$

Not available

24

Husqvarna 603001766

Barrier, Heat, Neoprene

$

$

Not available

25

Husqvarna 603000987

Weldment, Supp, Seat, Rops

$

$

Not available

26

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available

27

Husqvarna 603000452

Bolt, M6 X 1 X 45

$

$

Not available
