HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Rear Suspension (High-Capacity Option) Parts Diagram

4x4 Utility Vehicle

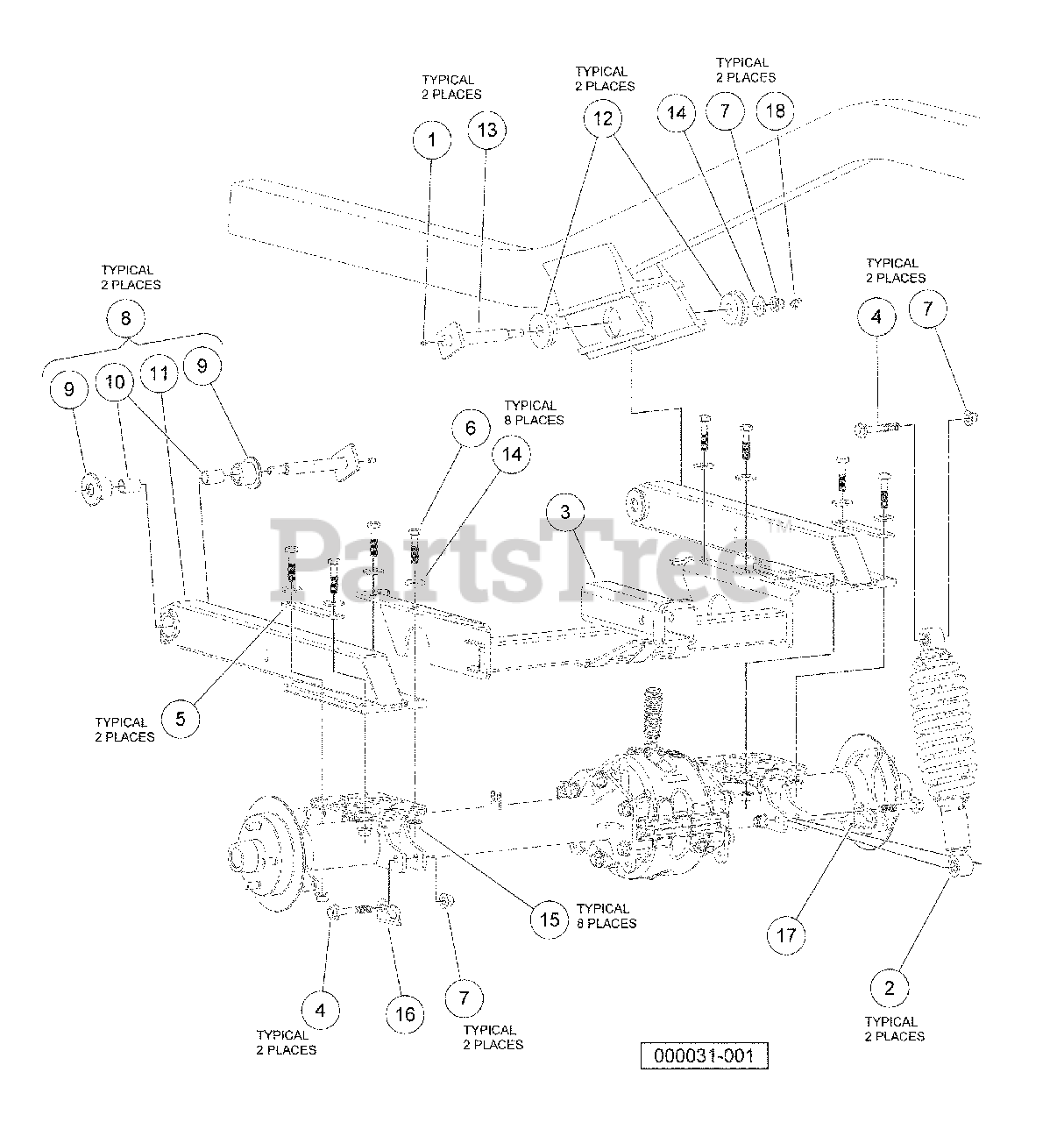

Rear Suspension (High-Capacity Option) Parts Diagram

  • Title

1

Husqvarna 603000264

Fitting, 1/4-28 Thread-Forming Grease

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 603000895

Shock, Coil Over, Rear HD

$

$

Not available

3

Husqvarna 603000941

Weldment, Receiver, Rear

$

$

Not available

4

Husqvarna 603001292

Bolt, Flange Head, M12 X 1.75 X 70

$

$

Not available

5

Husqvarna 603001310

Washer, Strip, Swingarm

$

$

Not available

6

Husqvarna 603001311

Bolt Flanged Head, M12 X 1.75 X 50

$

$

Not available

7

Husqvarna 603001312

Nut Flg, M12x1.75, Nylon Gr 10

$

$

Not available

8

Sub Asm Swingarm

Note: (includes items 9 through 11)

$

$

Not available

9

Husqvarna 603000944

Bushing, Pivot, Urethane

$

$

Not available

10

Husqvarna 603001148

Bushing, Teflon

$

$

Not available

11

Husqvarna 603004117

Swingarm, Rear, Awd

$

$

Not available

12

Insert, Flanged, H-Bracket

$

$

Not available

13

Husqvarna 603001597

Pin, Swingarm, Weldment

$

$

Not available

14

Husqvarna 603001599

Washer, M12 Hard Regular

$

$

Not available

15

Husqvarna 603001602

Nut Flg M12 X 1.75 Cl10

$

$

Not available

16

Husqvarna 603001606

Brkt, Line, Hyd, Shk Mnt, Drv.

$

$

Not available

17

Husqvarna 603001607

Brkt, Line, Hyd, Shk Mnt, Pass

$11.99

$

In Stock, only 1 left!

0

18

Husqvarna 603001763

Cotter, Rue Ring, 1/2".

$

$

Not available
