HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Rear Differential Parts Diagram

4x4 Utility Vehicle

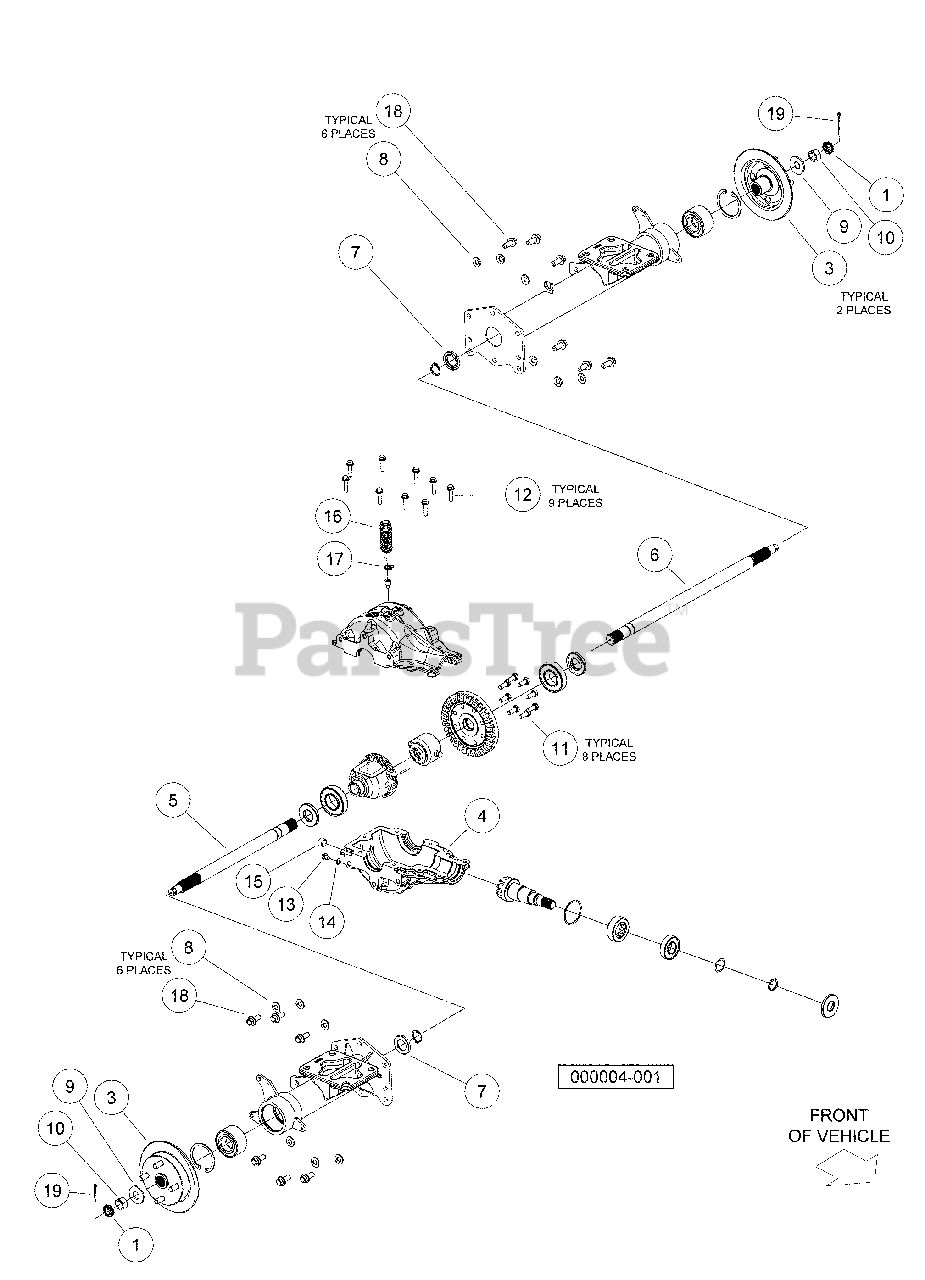

Rear Differential Parts Diagram

  • Title

1

Husqvarna 603000955

Axle, Rear, Guard Mounts

Note: (includes items 2 through 19)

$

$

Not available

2

Husqvarna 603000867

Locking Cap, Nut

$

$

Not available

3

Husqvarna 603000926

Assy, Rotor, Brake, Rear
(Superseded to 586697101)

$

$

Not available

4

Husqvarna 603001072

Gearcase, Lower, Machined

$

$

Not available

5

Husqvarna 603001116

Axle, Right-hand

$

$

Not available

6

Husqvarna 603001117

Axle, Left-Hand

$

$

Not available

7

Husqvarna 603001590

Washer,counterbored 51 X 30

$102.99

$

In Stock, only 1 left!

0

8

Husqvarna 603001591

Washer, Bellevle, 1.063 X .043

$

$

Not available

9

Husqvarna 603001592

Washer, Belleville, 49 X 4

$

$

Not available

10

Husqvarna 603001593

Nut, Hex, M20 X 1.5 , Modified

$

$

Not available

11

Husqvarna 603001621

Screw, M10 X 25

$

$

Not available

12

Husqvarna 603001622

Screw,hex Flange, M8 X 35

$

$

Not available

13

Husqvarna 603001623

Plug,3/8-16, Hex Flange

$

$

Not available

14

Husqvarna 603001624

Washer, .625 X .382 X .60

$

$

Not available

15

Husqvarna 603001628

Plug, Square Skt, 1/12-14, Ptf

$

$

Not available

16

Husqvarna 603001629

Bellows, Vent, Upper Housing

$

$

Not available

17

Husqvarna 603001630

Clamp, Hose, Dw-9.5

$

$

Not available

18

Husqvarna 603001632

Screw, Hex Fl, M12 X 1.75 X 30

$

$

Not available

19

Husqvarna 603001633

Pin, Cotter, 5/32 X 1.25

$

$

Not available
