HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Rear Body Trim Parts Diagram

4x4 Utility Vehicle

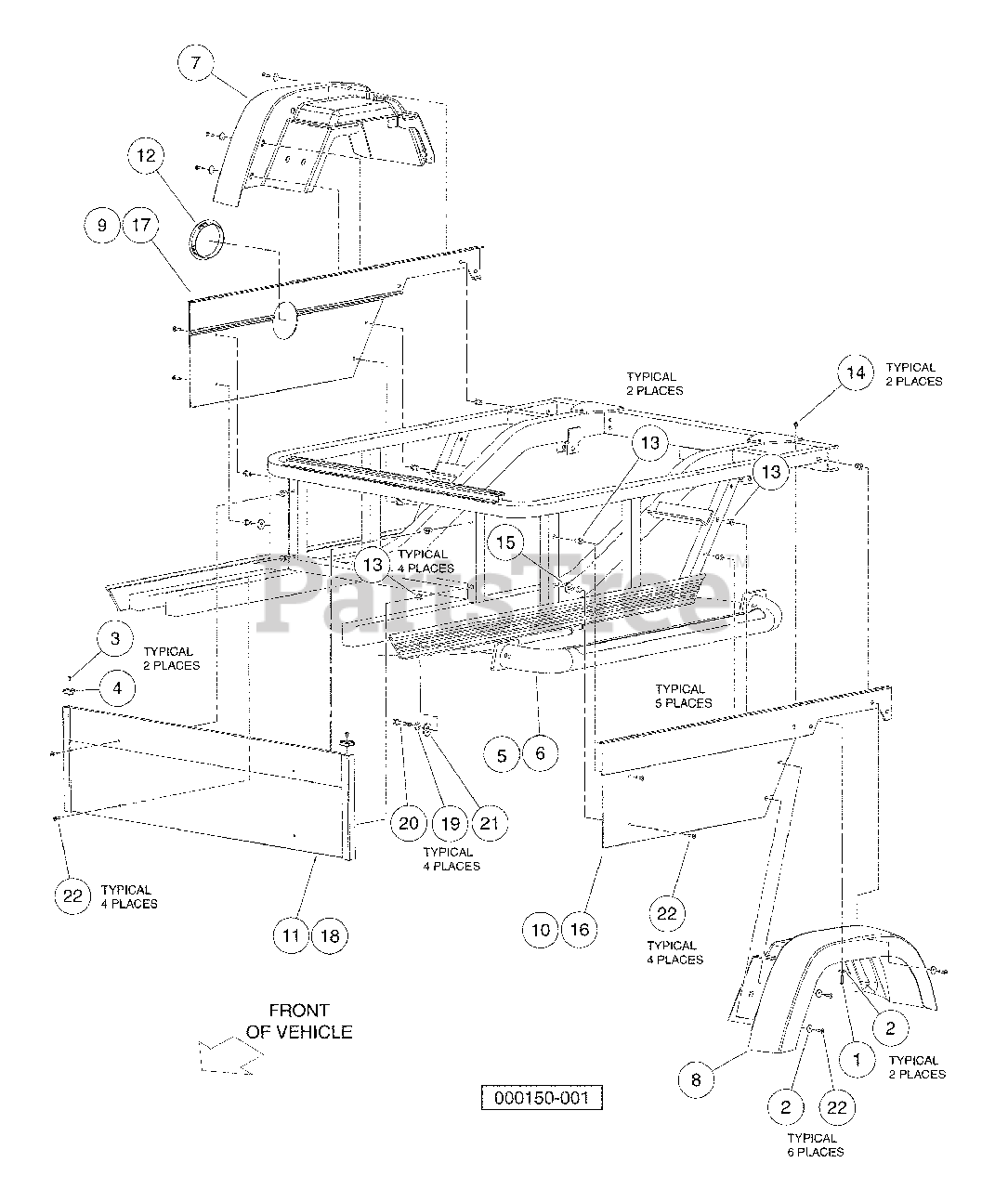

Rear Body Trim Parts Diagram

  • Title

1

Husqvarna 603000157

Screw, M6-1.00 X 25mm Hex Cap

$

$

Not available

2

Husqvarna 603000222

Washer, 1/4" Type B Flat

$

$

Not available

3

Husqvarna 603000223

Screw, #10 Truss-Head Torx

$

$

Not available

4

Husqvarna 603000458

Corner Cap AWD

$

$

Not available

5

Husqvarna 603000693

Side Step Bar

Note: (black)

$

$

Not available

6

Husqvarna 603000694

Side Step Bar

Note: (orange)

$

$

Not available

7

Husqvarna 603002690

Fender, Right Rear

$

$

Not available

8

Husqvarna 603002691

Fender, Left Rear

$

$

Not available

9

Husqvarna 603001085

Assembly, Panel

Note: (Passenger Side)

$

$

Not available

10

Husqvarna 603001086

Assembly, Panel

Note: (Driver Side)

$

$

Not available

11

Husqvarna 603001087

Panel, Front

$

$

Not available

12

Husqvarna 603001129

Bezel, Fuel Fill

$

$

Not available

13

Husqvarna 603001176

Well Nut 1/4-20

$

$

Not available

14

Husqvarna 603001317

Nut Flg, M6 X 1.0 Nylon

$

$

Not available

15

Husqvarna 603001599

Washer, M12 Hard Regular

$

$

Not available

16

Husqvarna 603001774

Panel, Side, Driver, Steel

$

$

Not available

17

Husqvarna 603001775

Panel, Side, Passenger, Steel

$

$

Not available

18

Husqvarna 603001776

Panel, Front, Steel

$

$

Not available

19

Husqvarna 603000056

Washer, Lock, Hel Sp 3/8 Reg

$

$

Not available

20

Husqvarna 603000080

Bolt, 3/8-16 X 3.00 Hex Head

$

$

Not available

21

Husqvarna 603003617

Washer, 3/8 Type B Flat

$

$

Not available

22

Husqvarna 603000091

Screw, 1/4-20 X 1.0 Truss-Head Machine

$

$

Not available
