HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Park Brake Pedal Assembly with Bellcrank System Parts Diagram

4x4 Utility Vehicle

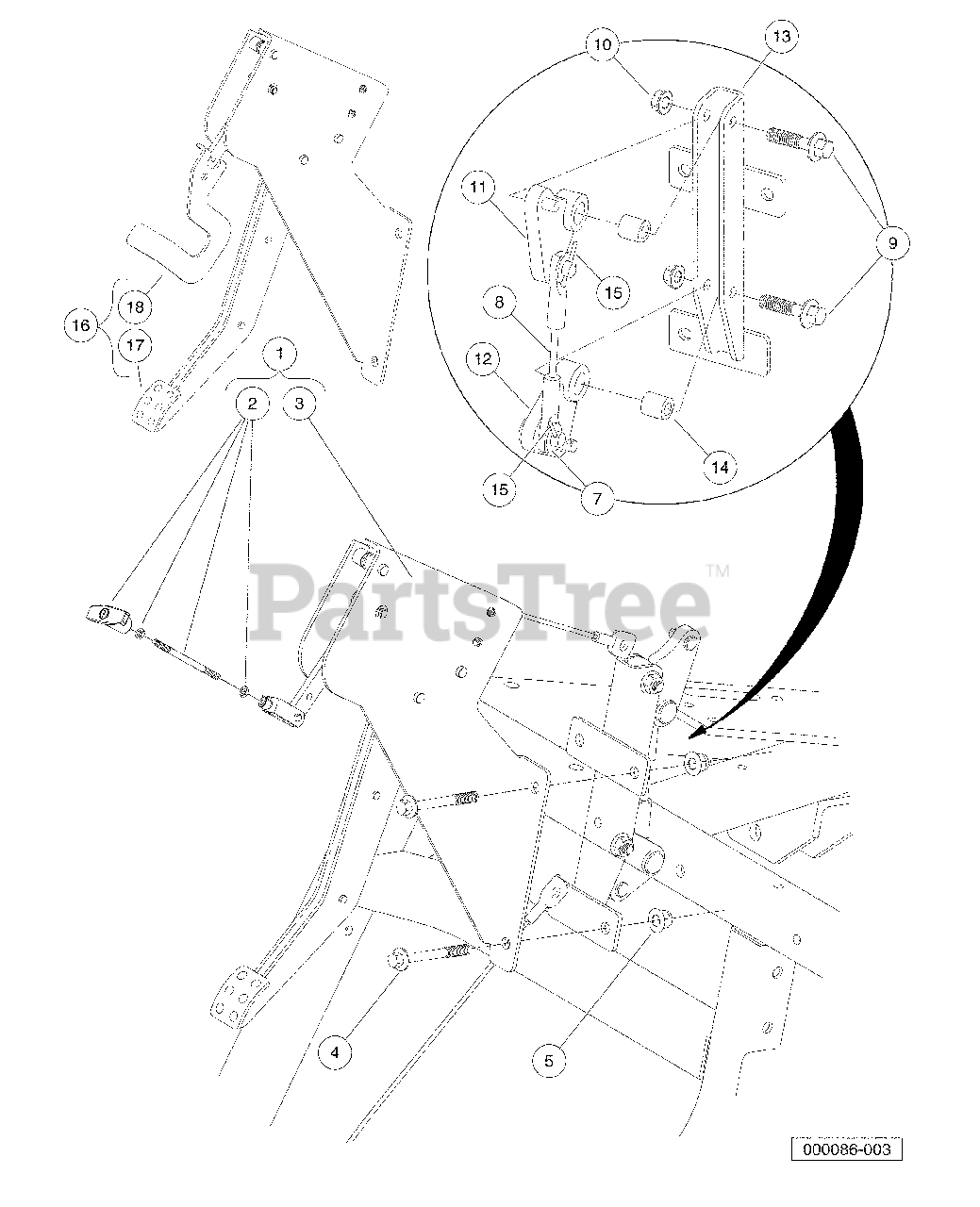

Park Brake Pedal Assembly with Bellcrank System Parts Diagram

  • Title

1

Pedal Asm, Brake, Park

Note: (includes items 2 and 3)

$

$

Not available

2

Husqvarna 603001777

Kit, Handle, Brake, Park

$

$

Not available

3

Pedal, Brake, Park

$

$

Not available

4

Husqvarna 603001306

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Not available

5

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

6

Husqvarna 603003525

Asm, Sub, Bracket, Park Brake

Note: (includes items 7 through 15)

$

$

Currently unavailable

7

Husqvarna 603003522

Washer, Flat, 3/8, Blk Fin

$

$

Not available

8

Husqvarna 531307110

Cable, Crank, Bell

$

$

Not available

9

Husqvarna 531307107

Bolt Flg, M8x1.25 X 35, Gr10.9

$

$

Not available

10

Husqvarna 531307113

Nut Flg M8 X 1.25 Gr 10.

$

$

Not available

11

Husqvarna 603003523

Asm, Bellcrank, Upper

$

$

Currently unavailable

12

Husqvarna 603003524

Asm, Bellcrank, Lower

$

$

Not available

13

Husqvarna 603004137

Brkt, Bellcrank, Prk Brk, Awd

$

$

Not available

14

Husqvarna 603004138

Spacer, Pivot, Park Brk, Awd

$

$

Not available

15

Husqvarna 603000063

Pin, 3/32 X 1.00 Sq Cut Cotter

$

$

Not available

16

Husqvarna 531307375

Asm, Pedal, Brake, Hard

Note: (includes items 17 and 18)

$

$

Not available

17

Pedal, Brake, Park

$

$

Not available

18

Husqvarna 603003526

Handle, Release, Park Brake

$

$

Not available
