HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Master Cylinder Parts Diagram

4x4 Utility Vehicle

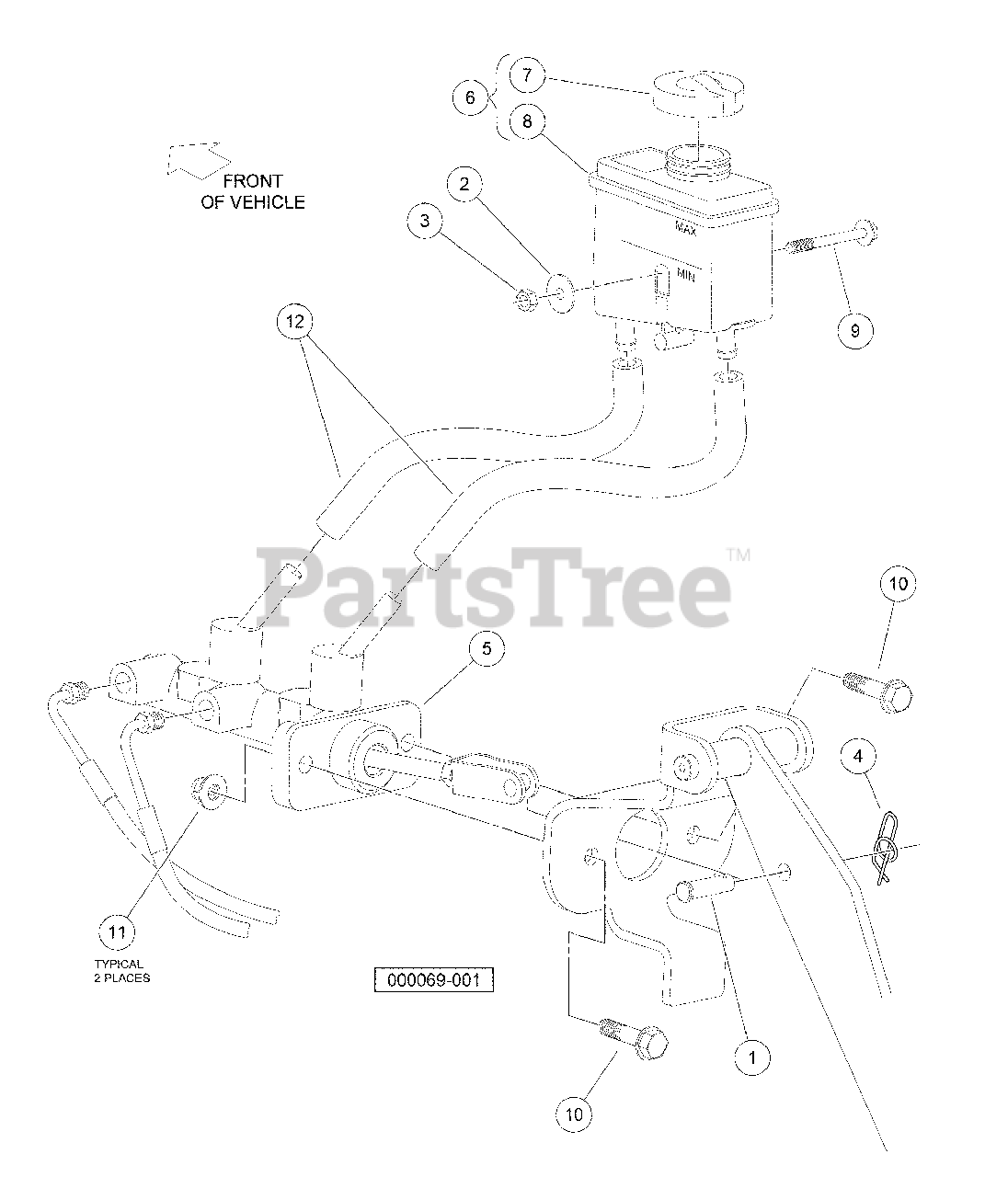

Master Cylinder Parts Diagram

  • Title
1

Husqvarna 603000454

Clevis Pin, 5/16 X 1

$

$

Not available

2

Husqvarna 603000222

Washer, 1/4" Type B Flat

$

$

Not available

3

Husqvarna 603000558

Locknut, M6-1.00 Nylon Insert

$

$

Not available

4

$

$

Not available

5

Husqvarna 603000947

Cylinder, Master, Tandem

$

$

Not available

6

Husqvarna 603000948

Assembly, Reservoir, Remote

Note: (includes items 7 and 8)

$

$

Not available

7

Husqvarna 603000759

Filler Cap Asm

$

$

Not available

8

Reservoir, Brake Fluid, Without Cap

$

$

Not available

9

Husqvarna 603001198

Bolt, M 6 X 1.0 X 65 Hex, Flange, Head, Black

$

$

Not available

10

Husqvarna 603001307

Bolt Flanged Head, M8 X 1.25 X 35

$

$

Not available

11

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

12

Husqvarna 603001671

Line, Reservoir, Brake

$

$

Not available
