HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Front Suspension (High-Capacity Option) Parts Diagram

4x4 Utility Vehicle

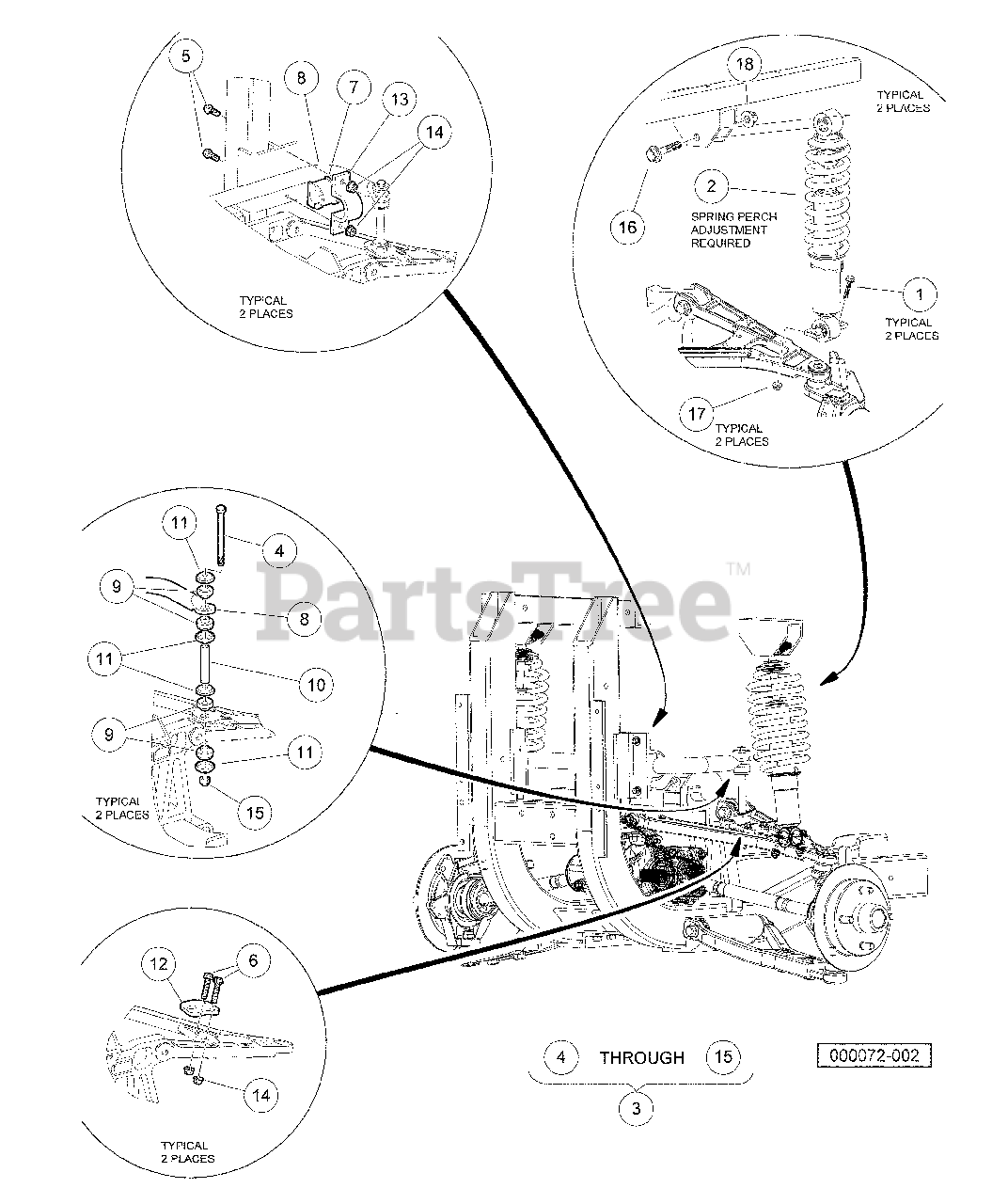

Front Suspension (High-Capacity Option) Parts Diagram

  • Title

1

Husqvarna 603000876

Bolt, Flange Head, M8-1.25 X 40

$

$

Not available

2

Husqvarna 603004414

Shock, Coil Over, Front Hd

$

$

Not available

3

Husqvarna 603001130

Kit, Anti-Sway Bar

$

$

Not available

4

Husqvarna 603000281

Screw, 3/8-16 X 7.00 Hex Cap

Note: (includes items 4 through 15)

$

$

Not available

5

Husqvarna 603000875

Bolt, Flange Head, M8 X 30.0

$

$

Not available

6

Husqvarna 603000876

Bolt, Flange Head, M8-1.25 X 40

$

$

Not available

7

Husqvarna 603001062

Bushing, Anti-Sway Bar, 1-1/8

$

$

Not available

8

Husqvarna 603001126

Bar, Sway, Formed

$

$

Not available

9

Husqvarna 603001132

Bushing, Link

$

$

Not available

10

Husqvarna 603001133

Sleeve, Link

$

$

Not available

11

Husqvarna 603001134

Washer, Cup, Bushing

$

$

Not available

12

Husqvarna 603001150

Mount, Link

$

$

Not available

13

Husqvarna 603001188

Bracket, Anti-Sway Bar

$

$

Not available

14

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

15

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available

16

Husqvarna 603001292

Bolt, Flange Head, M12 X 1.75 X 70

$

$

Not available

17

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

18

Husqvarna 603001312

Nut Flg, M12x1.75, Nylon Gr 10

$

$

Not available
