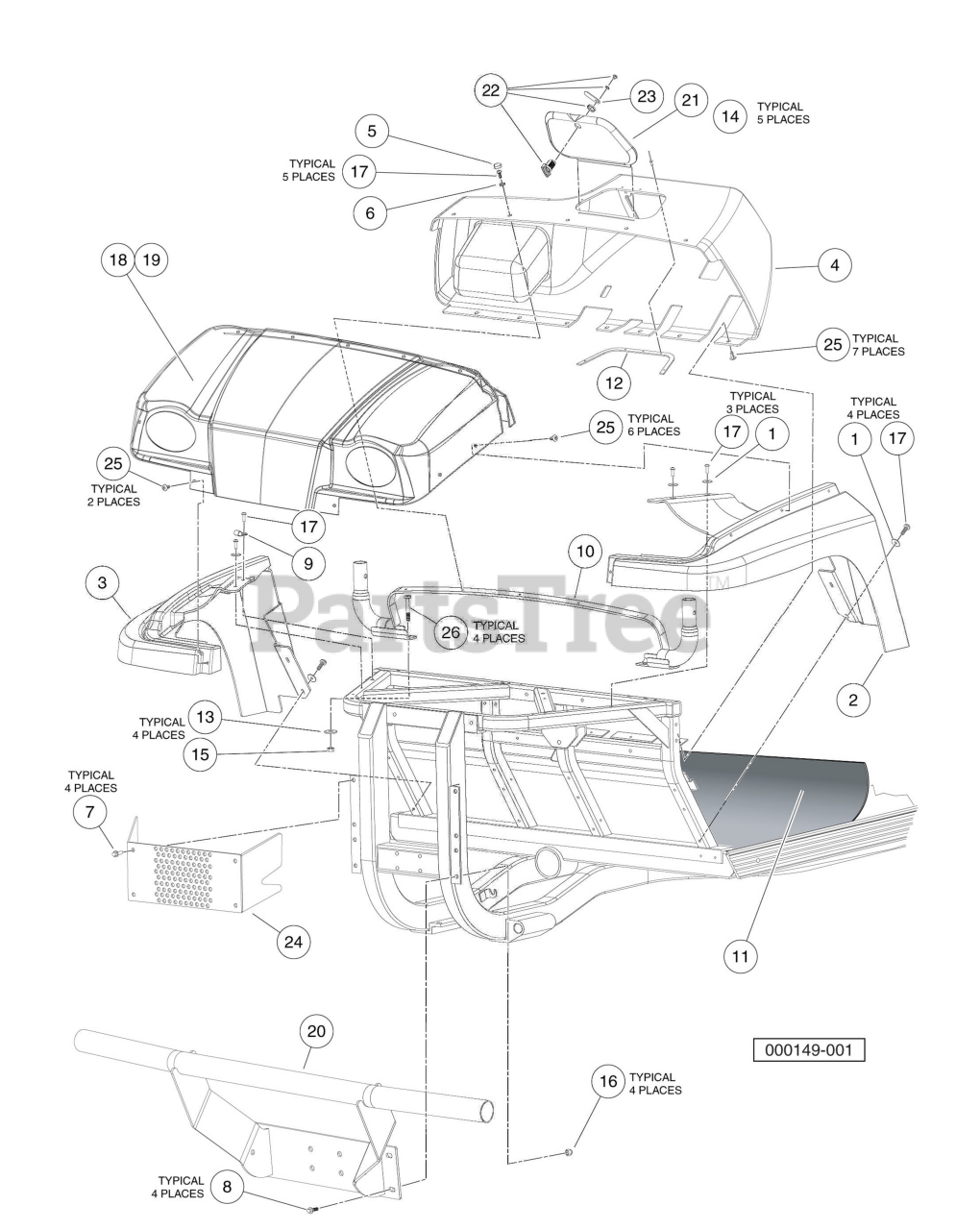

HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Front Body Trim, Diesel Vehicles Parts Diagram

4x4 Utility Vehicle

Front Body Trim, Diesel Vehicles Parts Diagram

  • Title

1

Husqvarna 603000222

Washer, 1/4" Type B Flat

$

$

Not available

2

Husqvarna 603000674

Fender, Left Front

$

$

Not available

3

Husqvarna 603000676

Fender, Right Front

$

$

Not available

4

Husqvarna 603000678

Dashboard with Access Hole

$

$

Not available

5

Husqvarna 603000729

Cap, 1/4" Plastic Screw Head

$

$

Not available

6

Husqvarna 603000737

Washer, 1/4 Id Scalloped Plast

$

$

Not available

7

Husqvarna 603000870

Screw, M8 X 1.25 X 30 Tri, Blk

$

$

Not available

8

Husqvarna 603000875

Bolt, Flange Head, M8 X 30.0

$

$

Not available

9

Husqvarna 603000966

P-Clamp, Insulated .312 In

$

$

Not available

10

Husqvarna 603000989

Weldment, Support, ROPS

$

$

Not available

11

Husqvarna 603001011

Mat, Floor

$

$

Not available

12

Husqvarna 603001151

Support, Access Panel, Dash

$

$

Not available

13

Husqvarna 603001174

Washer Hard,m10.

$

$

Not available

14

Husqvarna 603001181

Rivet, .125" Dia, .311" Panel

$

$

Not available

15

Husqvarna 603001300

Nut Flg M10 X 1.5 Mech Def

$

$

Not available

16

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

17

Husqvarna 603001325

Screw, 1/4-20 X 1.0 Pn Hd Torx

$

$

Not available

18

Husqvarna 603001675

Cowl, Camo

$

$

Not available

19

Husqvarna 603001676

Cowl, Orange

$

$

Not available

20

Husqvarna 603001769

Brush Guard

$

$

Not available

21

Husqvarna 603002766

Panel, Access, Dash

$

$

Not available

22

Husqvarna 603002778

Cam Lock Body

$

$

Not available

23

Husqvarna 603002785

Latch, Cam, Access Panel

$

$

Not available

24

Husqvarna 603001058

Guard, Radiator

$

$

Not available

25

Husqvarna 603000695

Rivet, Removable, Tuflok 1/4"

$

$

Not available

26

Husqvarna 603000448

Bolt, M10 X 1.50 X 65

$

$

Not available
