HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Carburetor Installation - Honda Gasoline Vehicles Parts Diagram

4x4 Utility Vehicle

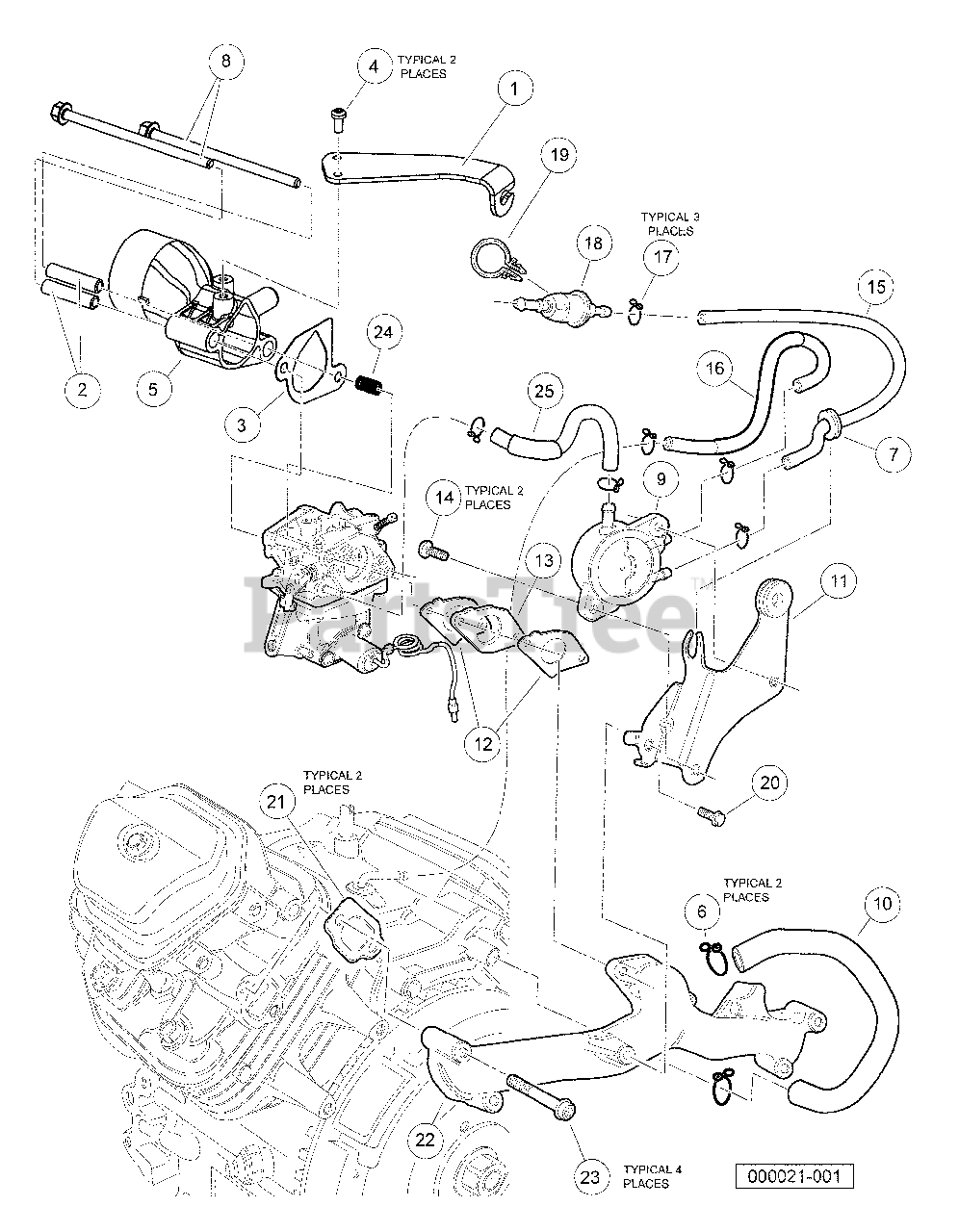

Carburetor Installation - Honda Gasoline Vehicles Parts Diagram

  • Title

1

Husqvarna 603000940

Bracket, Choke Cable

$

$

Not available

2

Husqvarna 603001115

Insert, Adapter, Carburetor

$

$

Not available

3

Husqvarna 603001182

Gasket, Adapter, Carburetor

$

$

Not available

4

Husqvarna 603001301

Screw Tapping, M5 X 0.8x10

$

$

Not available

5

Husqvarna 603001313

Adapter, Intake Honda GX620

$

$

Not available

6

Husqvarna 603001470

Clip, Breather Tube

$

$

Not available

7

Husqvarna 603001471

Grommet, Reserve Tank

$

$

Not available

8

Husqvarna 603001472

Bolt, Flange Head, M6 X 1 X 120

$

$

Not available

9

Husqvarna 603001473

Pump Assy., Fuel, Sup

$99.99

$

Usually ships in 3-10 days

0

10

Husqvarna 603001474

Tube, Breather

$

$

Not available

11

Husqvarna 603001475

Stay, Fuel Pump

$

$

Not available

12

Husqvarna 603001476

Gasket, Carburetor

$2.99

$

In Stock, Qty 20+

0

13

Husqvarna 603001477

Insulator, Carburetor

$

$

Not available

14

Husqvarna 603001478

Srew-Washer, M6 X 16

$

$

Not available

15

Husqvarna 603001479

Tube B, Fuel

$

$

Not available

16

Husqvarna 603001480

Tube, Diaphragm

$

$

Not available

17

Husqvarna 603001481

Clip, Tube, B10

$

$

Not available

18

Husqvarna 603000037

Filter, Fuel

$

$

Not available

19

Husqvarna 603001482

Clip, Wire Harness

$

$

Not available

20

Husqvarna 603001483

Bolt, Flange Head, M6 X 11 X 4

$

$

Not available

21

Husqvarna 603001484

Gasket, Intake Manifold

$

$

Not available

22

Husqvarna 603001485

Manifold, Inlet

$

$

Not available

23

Husqvarna 603001486

Bolt, Socket, M8 X 1.25 X 45

$

$

Not available

24

Husqvarna 603001668

Spring, Continuity, Solenoid

$

$

Not available

25

Husqvarna 603001697

Tube A, Fuel

$

$

Not available
