HUV 4420 G - Husqvarna 4x4 Utility Vehicle (2006-11) Shaft Parts Diagram

4x4 Utility Vehicle

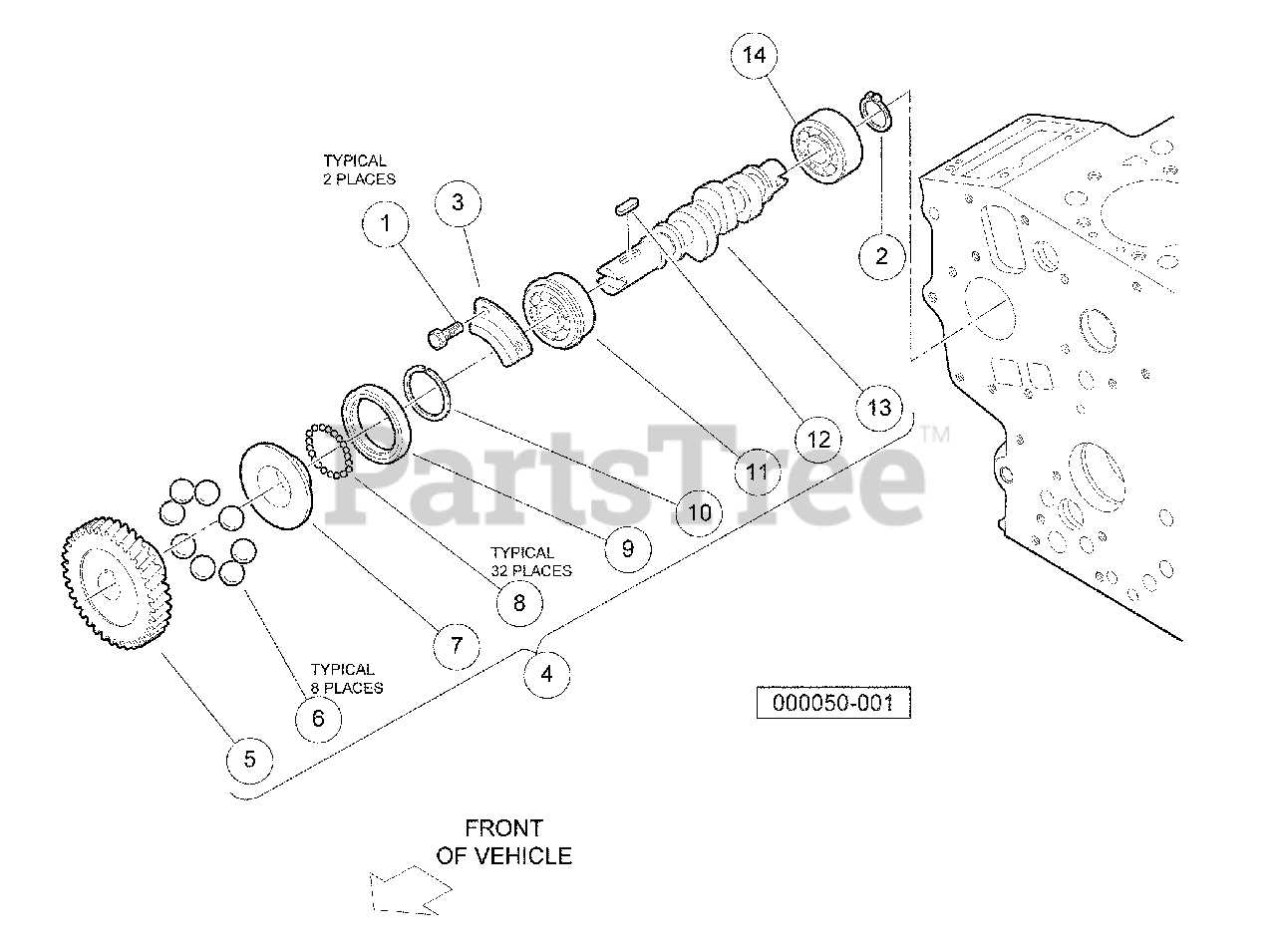

Shaft Parts Diagram

  • Title
1

Husqvarna 603001228

Bolt, D722, Cam End

$

$

Not available

2

Husqvarna 603001232

Circlip, External

$

$

Not available

3

Husqvarna 603001233

Stopper, Fuel, C/shaft

$

$

Not available

4

Husqvarna 603001723

Assy, Fuel Camshaft

Note: (includes items 5 through 13)

$

$

Not available

5

Husqvarna 603001222

Gear, Injection Pump

$

$

Not available

6

Husqvarna 603001223

Ball, Injection Pump

$

$

Not available

7

Husqvarna 603001224

Sleeve, Governor

$

$

Not available

8

Husqvarna 603001225

Ball, Governor

$

$

Not available

9

Husqvarna 603001226

Case, Governor Ball

$

$

Not available

10

$

$

Not available

11

Husqvarna 603001229

Bearing, Ball

$

$

Not available

12

Husqvarna 603001230

Key, Feather, Short Camshaft

$

$

Not available

13

Husqvarna 603001231

Camshaft, Fuel, Short

$

$

Not available

14

Husqvarna 603001724

Bearing, Ball

$

$

Not available
