HUV 4420 G - Husqvarna 4x4 Utility Vehicle (2006-11) Front Suspension - A-Arms Parts Diagram

4x4 Utility Vehicle

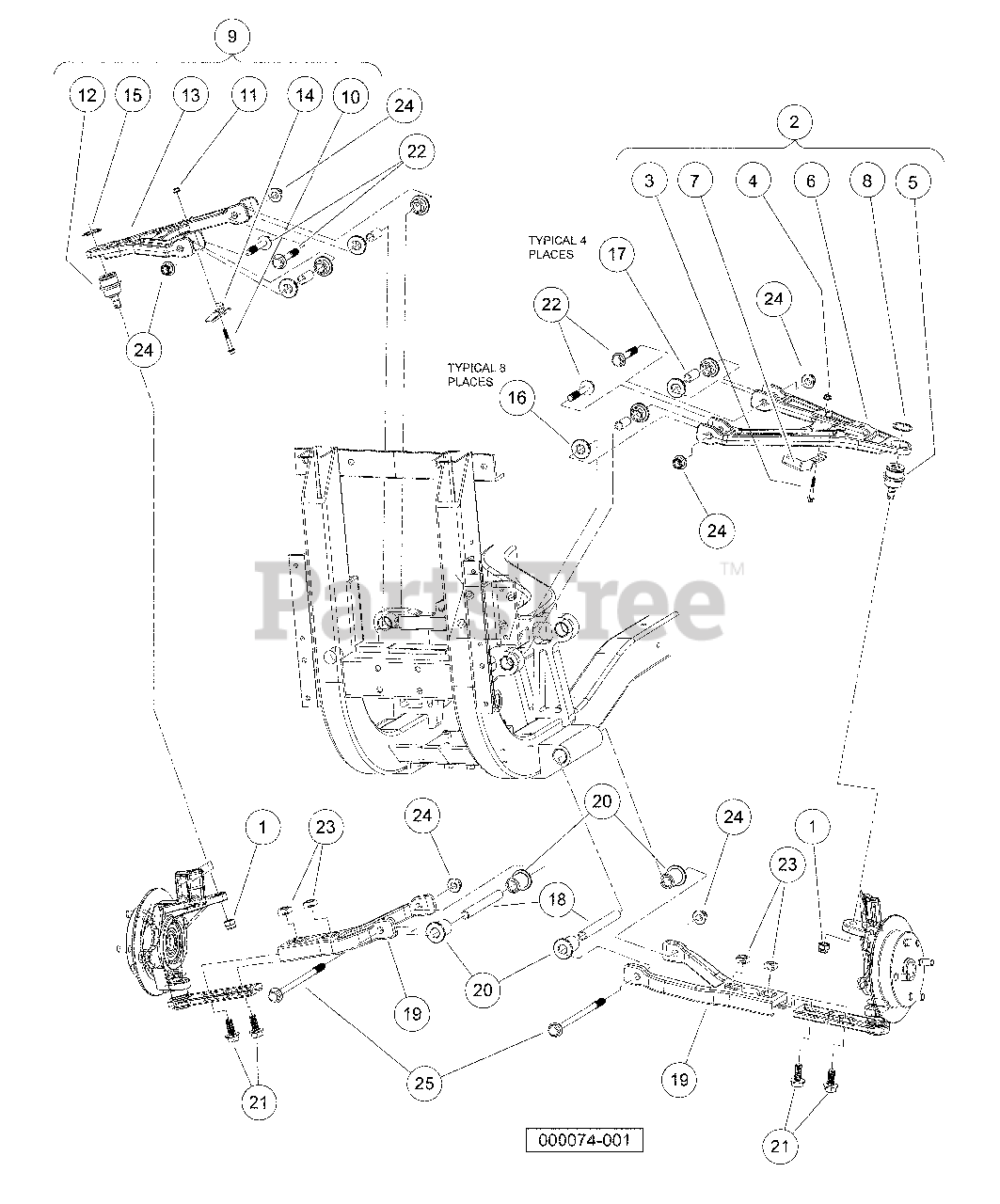

Front Suspension - A-Arms Parts Diagram

  • Title
1

Husqvarna 603000684

Locknut, M12-1.25 Nylon

$

$

Not available

2

Husqvarna 603000900

Sub-assembly, A-Arm, Upper, LH

Note: (includes items 3 through 8)

$

$

Not available

3

Husqvarna 603000873

Bolt, Flanged Head, M6x1.0x40

$

$

Not available

4

Husqvarna 603001299

Nut-m6x1.0 Flng All Mtl Lock

$

$

Not available

5

Husqvarna 603000891

Joint, Ball

$

$

Not available

6

Husqvarna 603000902

A-Arm, Upper, Left
(Superseded to 603000900)

$

$

Not available

7

Husqvarna 603001139

Bracket, Brake Line, Left

$

$

Not available

8

Husqvarna 603001684

Ring, Retaining, Ext, 1-1/4"

$3.49

$

In Stock, Qty 9

0

9

Husqvarna 603000901

Sub-assembly, A-Arm, Upper, RH

Note: (includes items 10 through 15)

$

$

Not available

10

Husqvarna 603000873

Bolt, Flanged Head, M6x1.0x40

$

$

Not available

11

Husqvarna 603001299

Nut-m6x1.0 Flng All Mtl Lock

$

$

Not available

12

Husqvarna 603000891

Joint, Ball

$

$

Not available

13

Husqvarna 603000903

A-Arm, Upper, Right
(Superseded to 603000901)

$

$

Not available

14

Husqvarna 603001140

Bracket, Brake Line, Right

$

$

Not available

15

Husqvarna 603001684

Ring, Retaining, Ext, 1-1/4"

$3.49

$

In Stock, Qty 9

0

16

Husqvarna 603000956

Bushing, A-Arm

$

$

Not available

17

Husqvarna 603001022

Sleeve, Upper

$

$

Not available

18

Husqvarna 603001023

Sleeve, Lower

$

$

Not available

19

Husqvarna 603001063

Arm, Lower

$

$

Not available

20

Husqvarna 603001131

Bushing, Lower Arm

$

$

Not available

21

Husqvarna 603001170

Bolt, Flange Head, M12x 1.75x 30 with Loctite

$

$

Not available

22

Husqvarna 603001292

Bolt, Flange Head, M12 X 1.75 X 70

$

$

Not available

23

Husqvarna 603001303

Nut, Square, M12x 1.75

$

$

Not available

24

Husqvarna 603001312

Nut Flg, M12x1.75, Nylon Gr 10

$

$

Not available

25

Husqvarna 603003544

Bolt Flg, M12 X 1.75 X 200 10

$

$

Not available
