HUV 4420 G - Husqvarna 4x4 Utility Vehicle (2006-11) Exhaust System, Diesel Vehicles Parts Diagram

4x4 Utility Vehicle

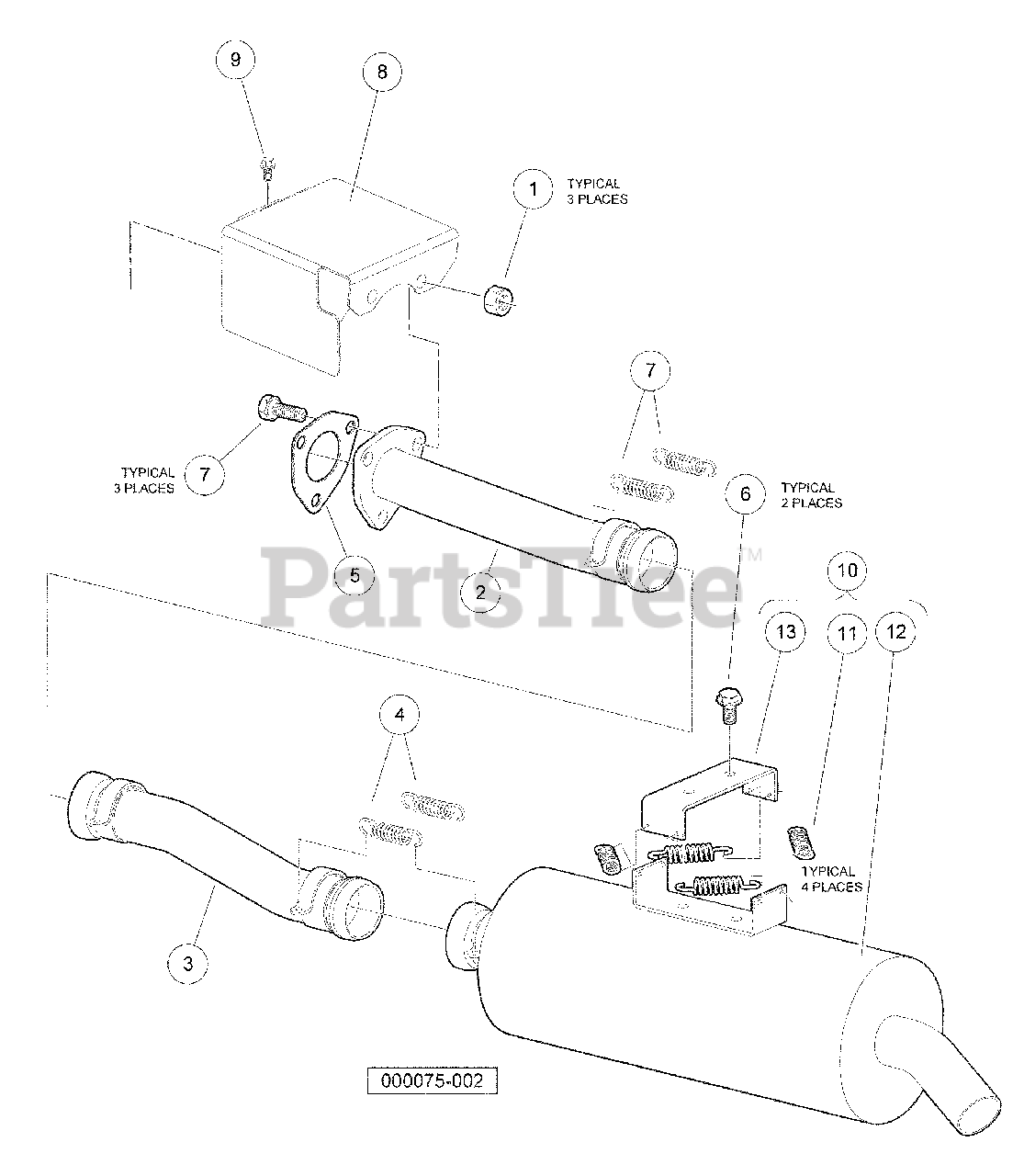

Exhaust System, Diesel Vehicles Parts Diagram

  • Title

1

Husqvarna 603001298

Nut,m8,all Metal Lock

$2.49

$

In Stock, Qty 11

0

2

Husqvarna 603000958

Pipe, Exhaust Diesel Main

$

$

Not available

3

Husqvarna 603000959

Pipe, Exhaust Intermediate

$

$

Not available

4

Husqvarna 603000960

Spring, Exhaust

$

$

Not available

5

Husqvarna 603000996

Gasket, Exhaust Diesel

$

$

Not available

6

Husqvarna 603001315

Bolt Flanged Head, M8 X1.25x 16 with Loctite

$

$

Not available

7

Husqvarna 603001316

Bolt, M8 X 1.25 X 40 with Loctite

$

$

Not available

8

Husqvarna 603001324

Shield, Diesel Exhaust

$

$

Not available

9

Husqvarna 603001753

Bolt, D722, Exhst Manfld Cover

$

$

Not available

10

Husqvarna 603002947

Asm, Muffler, AWD Homologation

Note: (includes items 11 through 13)

$

$

Not available

11

Husqvarna 603000960

Spring, Exhaust

$

$

Not available

12

Muffler

$

$

Not available

13

Bracket, Muffler

$

$

Not available
