HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2008-03) REAR BRAKE Parts Diagram

4x4 Utility Vehicle, Diesel

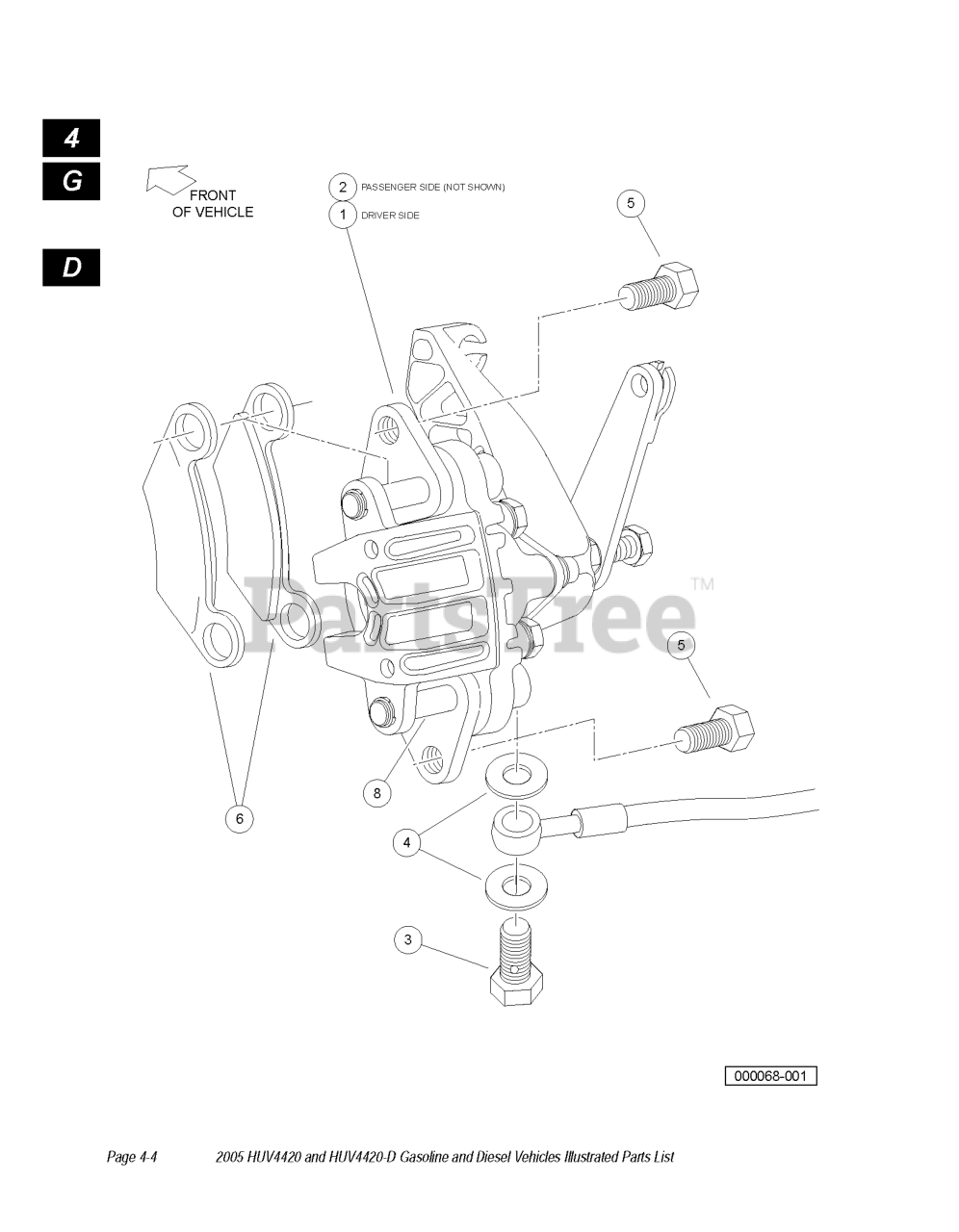

REAR BRAKE Parts Diagram

  • Title
4

Husqvarna 603001175

WASHER COPPER, M10 CRUSH

$

$

Not available

7

Husqvarna 603004476

SPRING, BRAKE CALIPER, RETURN

$

$

Not available

3

Husqvarna 603001162

BOLT, BANJO, M10X1X19

$

$

Not available

2

Husqvarna 603000946

CALIPER, BRAKE, HYDRO-MECH, RH

Note: RH

$

$

Not available

5

Husqvarna 603001183

BOLT FLG, 3/8-24X.750 LOCTITE

$

$

Not available

1

Husqvarna 603000945

CALIPER, BRAKE, HYDRO-MECH, LH
(Superseded to 589260301)

Note: LH

$

$

Not available

8

Husqvarna 603004475

PIN, SLIDE, CALIPER, 7/16

$

$

Not available

6

Husqvarna 603001670

SERVICE KIT, BRAKE PAD

Note: 4 PADS

$

$

Not available
