HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2008-03) PEDALS 4 Parts Diagram

4x4 Utility Vehicle, Diesel

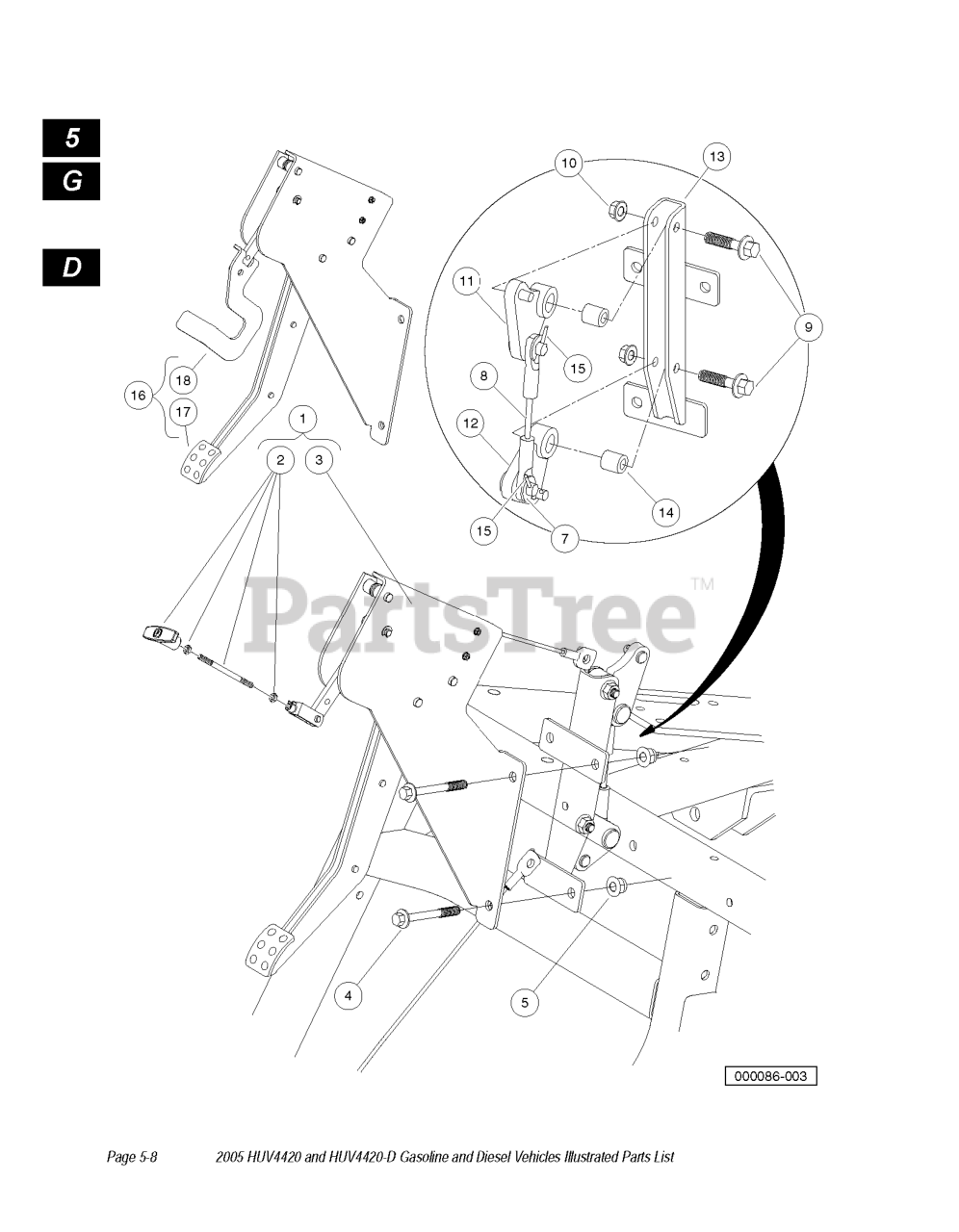

PEDALS 4 Parts Diagram

  • Title

11

NEEDS DESCRIPTION

Note: UPPER

$

$

Not available

8

Husqvarna 531307110

CABLE, CRANK BELL

$

$

Not available

13

Husqvarna 603004137

BRKT, BELLCRANK, PRK BRK, AWD

Note: AWD

$

$

Not available

7

Husqvarna 603003522

WASHER, FLAT, 3/8, BLK FIN

Note: BLACK

$

$

Not available

5

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

2

Husqvarna 603001777

KIT-HANDLE-BRAKE-PARK

$

$

Not available

14

Husqvarna 603004138

SPACER, PIVOT, PARK BRK, AWD

Note: AWD

$

$

Not available

10

Husqvarna 531307113

NUT

$

$

Not available

15

Husqvarna 603000063

PIN,CUT COTTER

$

$

Not available

9

Husqvarna 531307107

BOLT

$

$

Not available

12

Husqvarna 603003524

ASM, BELLCRANK, LOWER

Note: LOWER

$

$

Not available

16

Husqvarna 531307375

ASM, PEDAL, BRAKE, HARD

$

$

Not available

18

Husqvarna 603003526

HANDLE, RELEASE, PARK BRAKE

$

$

Not available

4

Husqvarna 603001306

BOLT FLG, M8X1.25X65

$

$

Not available
