HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2008-03) FRONT DIFFERNETIAL Parts Diagram

4x4 Utility Vehicle, Diesel

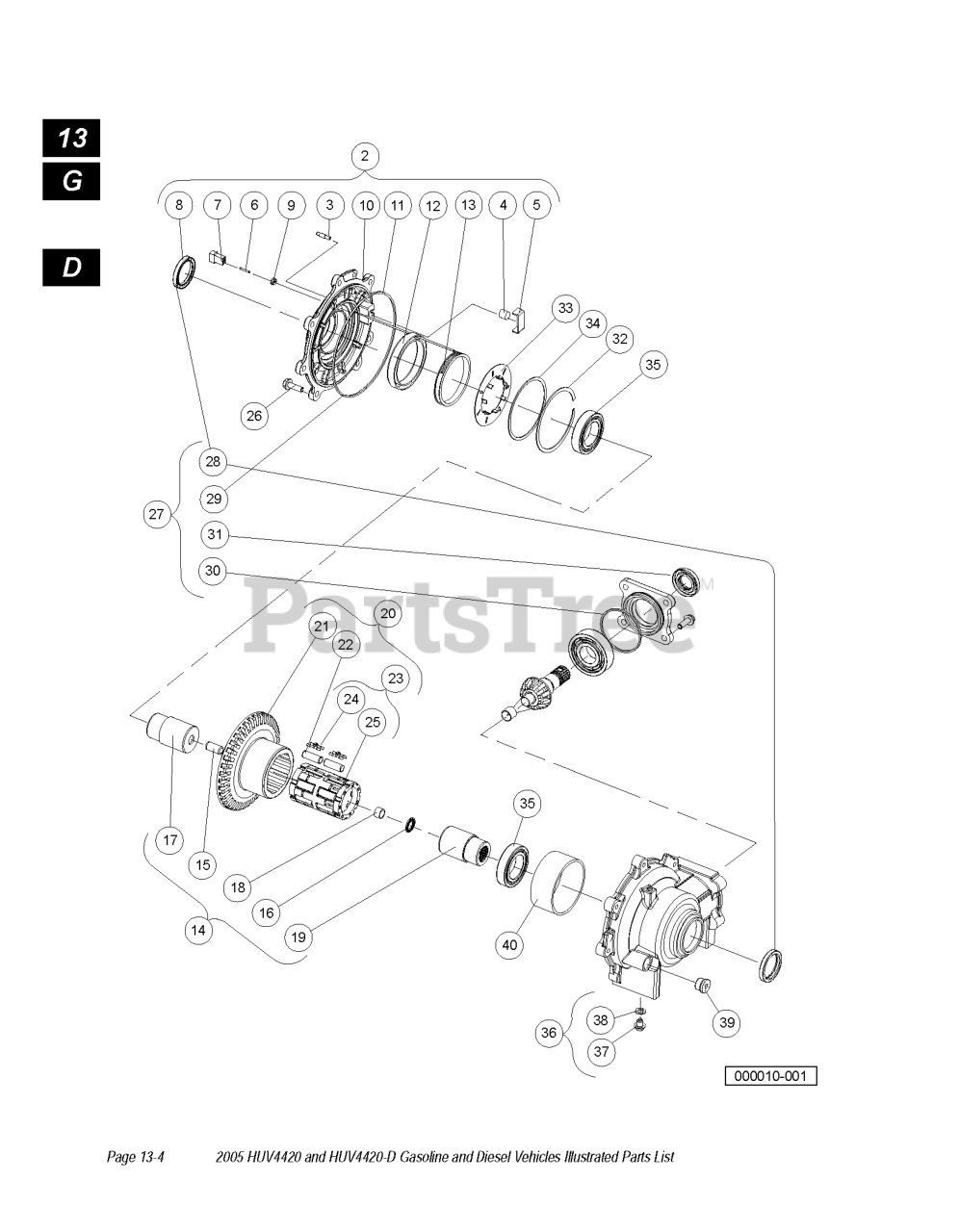

FRONT DIFFERNETIAL Parts Diagram

  • Title

27

Husqvarna 603001030

KIT, MINOR REPAIR

$

$

Not available

4

Husqvarna 603001035

THRUST BUTTON

$

$

Not available

24

NEEDS DESCRIPTION

Note: 14 CLIPS

$

$

Not available

1

Husqvarna 603000913

DIFF, FRONT AUTO CCW 102371801

$

$

Not available

20

Husqvarna 603001028

KIT, ASSY, CLUTCH

$

$

Not available

21

Husqvarna 603001040

CLUTCH HSG/RING GEAR, MACHINED

$

$

Not available

35

Husqvarna 603001037

BEARING, DGBR, 6008-C3

$

$

Not available

2

Husqvarna 603001026

KIT, ASSY, OUTPUT COVER PLATE

$

$

Not available

14

Husqvarna 603001027

KIT, ASSY, RACE OUTPUT HUB

$

$

Not available

33

Husqvarna 603001032

ARMATURE PLATE

$

$

Not available

16

Husqvarna 603001039

BEARING, NRT, TC815

$

$

Not available

34

Husqvarna 603001033

SHIM, ARMATURE, PLATE

$

$

Not available

32

Husqvarna 603001031

RETAINING, RING INTERNAL

$

$

Not available

26

Husqvarna 603001029

KIT, BOLT

Note: 7 BOLTS

$

$

Not available

15

Husqvarna 603001038

DOWEL PIN, 1/2" DIA X 1" LG

$

$

Not available

23

Husqvarna 603001042

KIT, ASSY, ROLL CAGE

$

$

Not available

3

Husqvarna 603001034

SET SCREW, #10-24 UNC-3A, PATC

$

$

Not available

22

Husqvarna 603001041

KIT, ROLL

Note: 14 ROLLERS

$

$

Not available

5

Husqvarna 603001036

THRUST PLATE

$

$

Not available

36

Husqvarna 603001043

KIT, ASSY, DRAIN PLUG

$

$

Not available

39

Husqvarna 603001045

PLUG, OIL FILL

$

$

Not available
