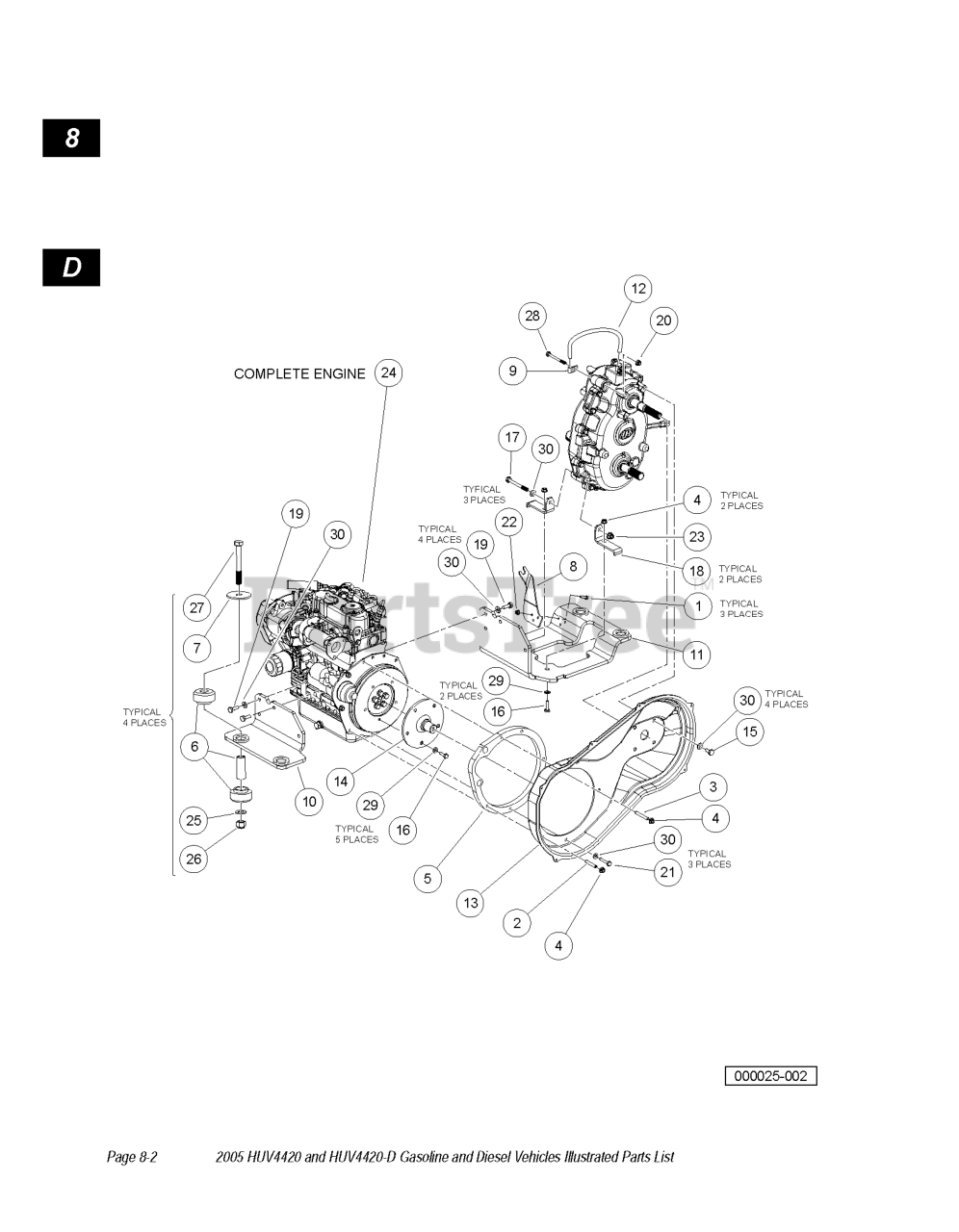

HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2008-03) ENGINE Parts Diagram

4x4 Utility Vehicle, Diesel

ENGINE Parts Diagram

  • Title

19

Husqvarna 603001191

BOLT, M10 X 1.25 X 25 LOCTITE

$

$

Not available

25

Husqvarna 603000437

WASHER, M12 HARD
(Superseded to 603000447)

$

$

Not available

3

Husqvarna 603000514

STUD, M8-1.25 X 60MM 2-ENDED

$

$

Not available

5

Husqvarna 603000907

SPACER, ENGINE, DIESEL

$

$

Not available

27

Husqvarna 603000440

BOLT, M12 X 1.75 X 90

$

$

Not available

6

Husqvarna 603000908

ISOLATOR, RING AND BUSHING

$

$

Not available

2

Husqvarna 603000513

STUD, M8-1.25 X 50MM 2-ENDED

$

$

Not available

18

Husqvarna 603001186

BRACKET, TRANSMISSION MTG

$

$

Not available

22

Husqvarna 603001317

NUT FLG, M6 X 1.0 NYLON

$

$

Not available

15

Husqvarna 603001165

BOLT, M10 X 1.5 X 20 LOCTITE

$

$

Not available

30

Husqvarna 603000451

WASHER, M10 HARD

$

$

Not available

23

Husqvarna 603001586

NUT FLG M10 X 1.5 NYLON

$

$

Not available

9

Husqvarna 603000966

P-CLAMP, INSULATED .312 IN

$

$

Not available

13

Husqvarna 603001113

COVER, CVT INNER, DIESEL

$

$

Not available

20

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

29

Husqvarna 603000450

WASHER, M8 HARD

$

$

Not available

16

Husqvarna 603001166

BOLT, M8 X 1.25 X 25 LOCTITE

$

$

Not available

28

Husqvarna 603000449

BOLT, M8 X 1.25 X 80

$

$

Not available

11

Husqvarna 603000985

PLATE, ENG MTG, WELD, RH

Note: RH

$

$

Not available

4

Husqvarna 603001298

NUT FLG, M8 X 1.25 MECH DEF

$2.49

$

In Stock, Qty 11

0

12

Husqvarna 603001111

HOSE, VENT, TRANSMISSION

$

$

Not available

7

Husqvarna 603000909

WASHER, SNUBBING, RING N BUSH

$

$

Not available

24

Husqvarna 603002885

ENGINE, KUBOTA, D722, CB, 60A

$

$

Not available

21

Husqvarna 603001316

BOLT, M8X1.25X40 LOCTITE

$

$

Not available

17

Husqvarna 603001169

BOLT, M10 X 1.5 X 100 LOCTITE

$

$

Not available

1

Husqvarna 603000157

SCREW

$

$

Not available

8

Husqvarna 603000937

BRACKET, FNR TRANS CABLE

$

$

Not available

10

Husqvarna 603000984

Plate, Engine Mounting, Weld, Left-Hand

Note: LH

$

$

Not available

14

Husqvarna 603001128

SHAFT, CVT ADAPTER

$

$

Not available
