HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2008-03) CRANKCASE Parts Diagram

4x4 Utility Vehicle, Diesel

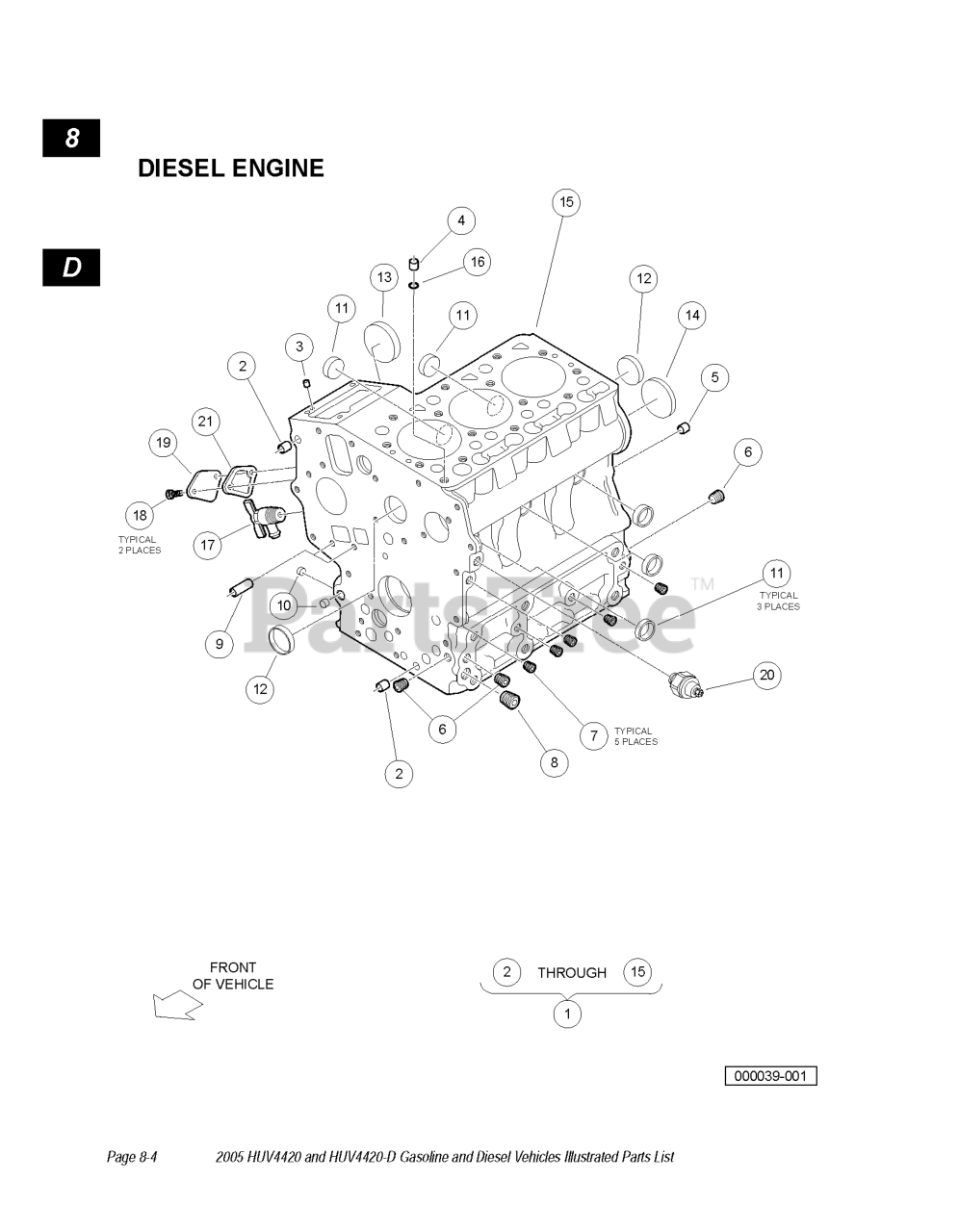

CRANKCASE Parts Diagram

  • Title

9

Husqvarna 603001209

PIN, PIPE, DIA 8 X 11

$

$

Not available

11

Husqvarna 603001701

CAP, SEALING, MED

Note: MED

$

$

Not available

20

Husqvarna 603001746

SWITCH, OIL PRESSURE

$

$

Not available

14

Husqvarna 603001704

PLUG, EXPANSION

$

$

Not available

2

Husqvarna 603001200

PIN, PIP, DIA 8 X 14

$

$

Not available

19

Husqvarna 603001661

PLATE, ENGINE BLOCK

$

$

Not available

8

Husqvarna 603001207

PLUG, 1/4" NPT

$

$

Not available

5

Husqvarna 603001204

PIN, STRAIGHT, DIA 8 X 16

$

$

Not available

6

Husqvarna 603001205

PLUG, 1/8" NPT

$

$

Not available

4

Husqvarna 603001203

PIN, PIPE, DIA 7 X 14

$

$

Not available

16

Husqvarna 603001202

O-RING, 8 X 7

$

$

Not available

7

Husqvarna 603001206

PLUG, 3/32" NPT

$

$

Not available

18

Husqvarna 603001343

BOLT, M6X1X20

$

$

Not available

1

Husqvarna 603001199

ENGINE BLOCK

$

$

Not available

21

Husqvarna 603001762

GASKET, FUEL PUMP, D722

Note: D722

$

$

Not available

3

Husqvarna 603001201

PIN, STRAIGHT, DIA 5 X 10

$

$

Not available

17

Husqvarna 603001210

ASSY COCK, DRAIN

$

$

Not available

10

Husqvarna 603001700

CAP, SEALING, SMALL

Note: SMALL

$

$

Not available

12

Husqvarna 603001702

CAP, SEALING, LARGE

Note: LARGE

$

$

Not available

13

Husqvarna 603001703

COVER, FUEL CAMSHAFT

$

$

Not available
