HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2006-11) Oil Circulation Parts Diagram

4x4 Utility Vehicle, Diesel

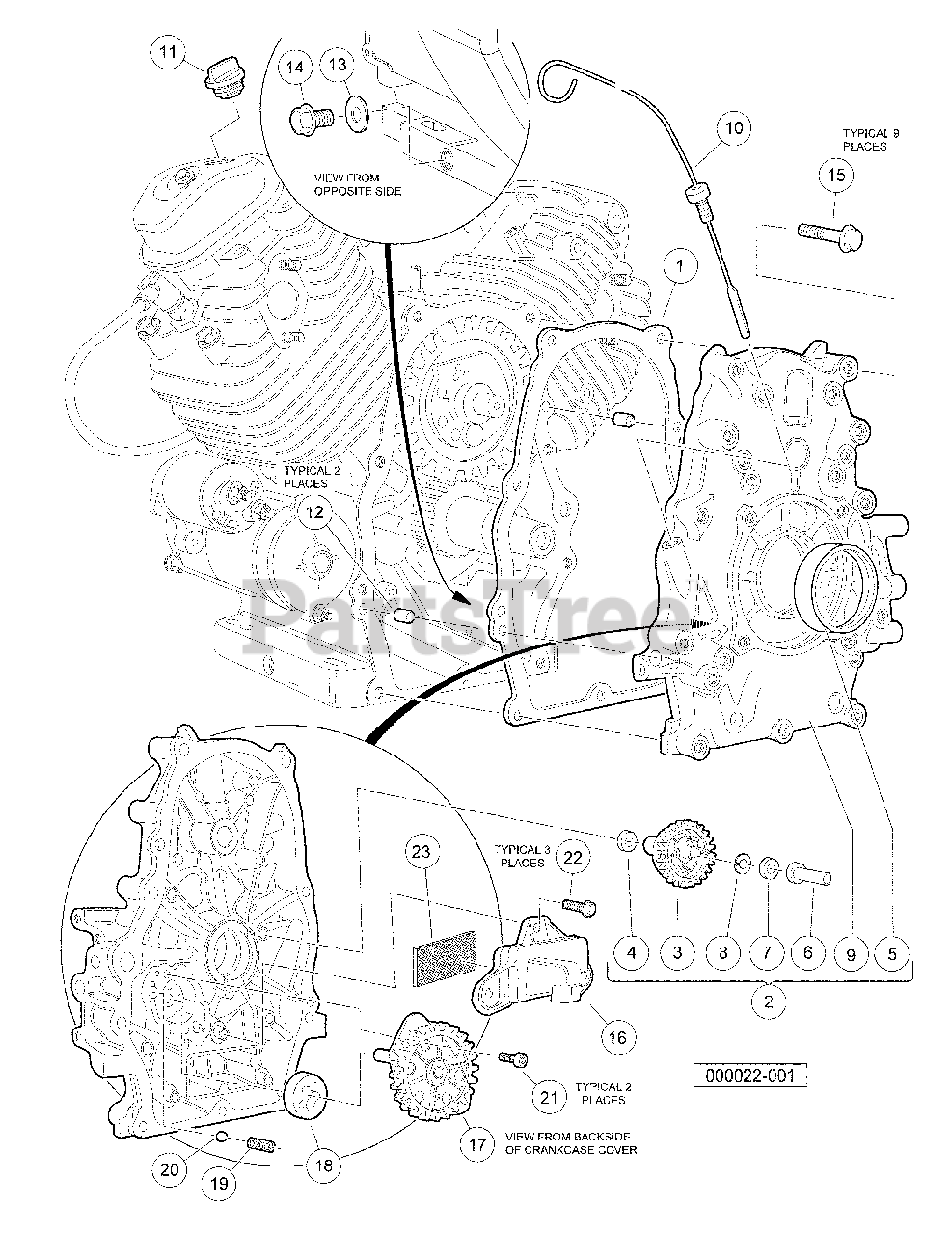

Oil Circulation Parts Diagram

  • Title

1

Husqvarna 603001487

Gasket, Case Cover

$

$

Not available

2

Husqvarna 603001488

Cover Assembly, Crankcase

Note: (includes items 3 through 9)

$

$

Not available

3

Husqvarna 603001495

Governor Assembly

$

$

Not available

4

Husqvarna 603001503

Washer, Plain, M6

$

$

Not available

5

Husqvarna 603001690

Seal, Oil, 38 X 58 X 9

$

$

Not available

6

Husqvarna 603001691

Slider, Governor

$

$

Not available

7

Husqvarna 603001692

Washer, 6 X 16

$

$

Not available

8

Husqvarna 603001693

Clip, Governor

$

$

Not available

9

Cover, Crankcase

$

$

Not available

10

Husqvarna 603001489

Dipstick, Oil

$

$

Not available

11

Husqvarna 603001490

Cap, Oil Filler

$

$

Not available

12

Husqvarna 603001491

Pin A, Dowel, 8 X 14

$

$

Not available

13

Husqvarna 603001492

Washer, Drain Plug, M14

$

$

Not available

14

Husqvarna 603001493

Bolt, Drain Plug , M14

$

$

Not available

15

Husqvarna 603001494

Bolt, Flange Head, M8 X 1.25 X 50

$

$

Not available

16

Husqvarna 603001496

Cover, Oil Filter

$

$

Not available

17

Husqvarna 603001497

Cover Assembly, Oil Pump

$

$

Not available

18

Husqvarna 603001498

Rotor, Oil Pump, Outer

$

$

Not available

19

Husqvarna 603001499

Spring, Relief Valve

$

$

Not available

20

Husqvarna 603001500

Ball, Steel , 3/8, #12

$

$

Not available

21

Husqvarna 603001501

Bolt, Socket

$

$

Not available

22

Husqvarna 603001502

Bolt, Flange Head, M6 X 1 X 20

$

$

Not available

23

Husqvarna 603001694

Screen, Oil Filter

$

$

Not available
