HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2006-11) Front Differential (Output Components) Parts Diagram

4x4 Utility Vehicle, Diesel

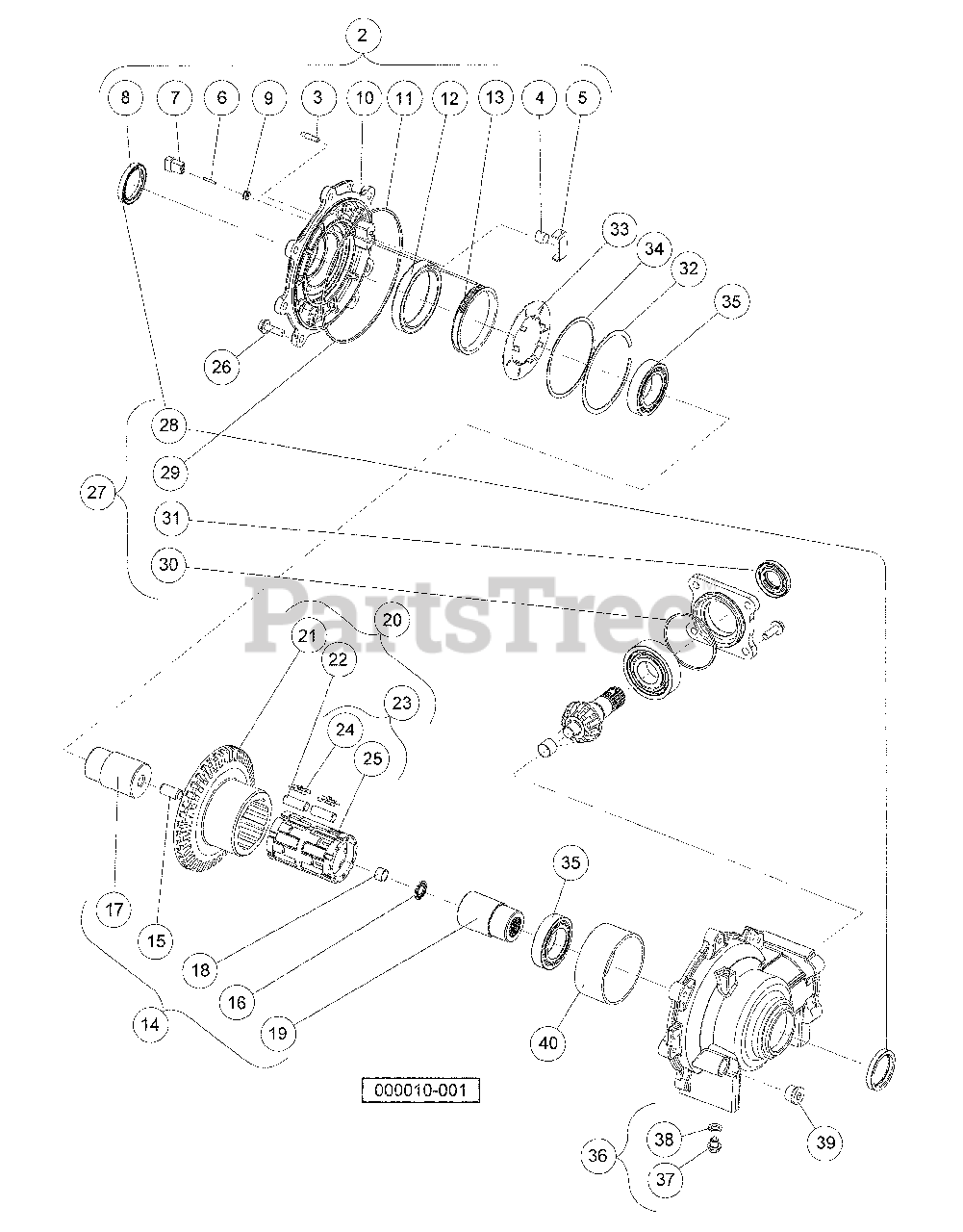

Front Differential (Output Components) Parts Diagram

  • Title

1

Husqvarna 603000913

Differential, Front

Note: (includes items 2 through 40)

$

$

Not available

2

Husqvarna 603001026

Kit, Assy, Output Cover Plate

Note: (includes items 3 through 13)

$

$

Not available

3

Husqvarna 603001034

Set Screw, #10-24 UNC-3A with Patch

$

$

Not available

4

Husqvarna 603001035

Thrust Button

$

$

Not available

5

Husqvarna 603001036

Thrust Plate

$

$

Not available

6

Mate-N-Lock Pin

$

$

Not available

7

Mate-N-Lock Housing

$

$

Not available

8

Oil Seal

$

$

Not available

9

Grommet

$

$

Not available

10

Plate, Output Cover

$

$

Not available

11

O-Ring

$

$

Not available

12

Coil, Pocket Insert

$

$

Not available

13

Coil with Press-Fit Bobbin

$

$

Not available

14

Husqvarna 603001027

Kit, Assy, Race Output Hub

Note: (includes items 15 through 19)

$

$

Not available

15

Husqvarna 603001038

Pin, Dowel

$

$

Not available

16

Husqvarna 603001039

Bearing, Needle

$

$

Not available

17

Race/Output Hub, Male

$

$

Not available

18

Bushing, PermiGlide

$

$

Not available

19

Race/Output Hub, Female

$

$

Not available

20

Husqvarna 603001028

Kit, Assy, Clutch

Note: (includes items 21 through 23)

$

$

Not available

21

Husqvarna 603001040

Clutch Hsg/Ring Gear, Machined

$

$

Not available

22

Husqvarna 603001041

Kit, Roller (contains 14 rollers)

$

$

Not available

23

Husqvarna 603001042

Kit, Assy, Roll Cage

Note: (includes items 24 and 25)

$

$

Not available

24

Kit, H-Clip Spring (contains 14 clips)

$

$

Not available

25

Roll Cage, Plastic

$

$

Not available

26

Husqvarna 603001029

Kit, Bolt (contains 7 bolts)

$

$

Not available

27

Husqvarna 603001030

Kit, Minor Repair

Note: (includes items 28 through 31)

$

$

Not available

28

Oil Seal

$

$

Not available

29

O-Ring

$

$

Not available

30

O-Ring

$

$

Not available

31

Oil Seal, Triple-Lipped

$

$

Not available

32

Husqvarna 603001031

Retaining, Ring Internal

$

$

Not available

33

Husqvarna 603001032

Plate, Armature

$

$

Not available

34

Husqvarna 603001033

Shim, Armature, Plate

$

$

Not available

35

Husqvarna 603001037

Bearing, Ball

$

$

Not available

36

Husqvarna 603001043

Kit, Assy, Drain Plug

Note: (includes items 37 and 38)

$

$

Not available

37

Plug, Oil Drain

$

$

Not available

38

Washer, Nylon, 0.625 x 0.382 x 0.06

$

$

Not available

39

Husqvarna 603001045

Plug, Oil Fill

$

$

Not available

40

Bushing, Self-Lubricating, 80 x 85 x 20

$

$

Not available
