HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2006-11) Cargo Box Parts Diagram

4x4 Utility Vehicle, Diesel

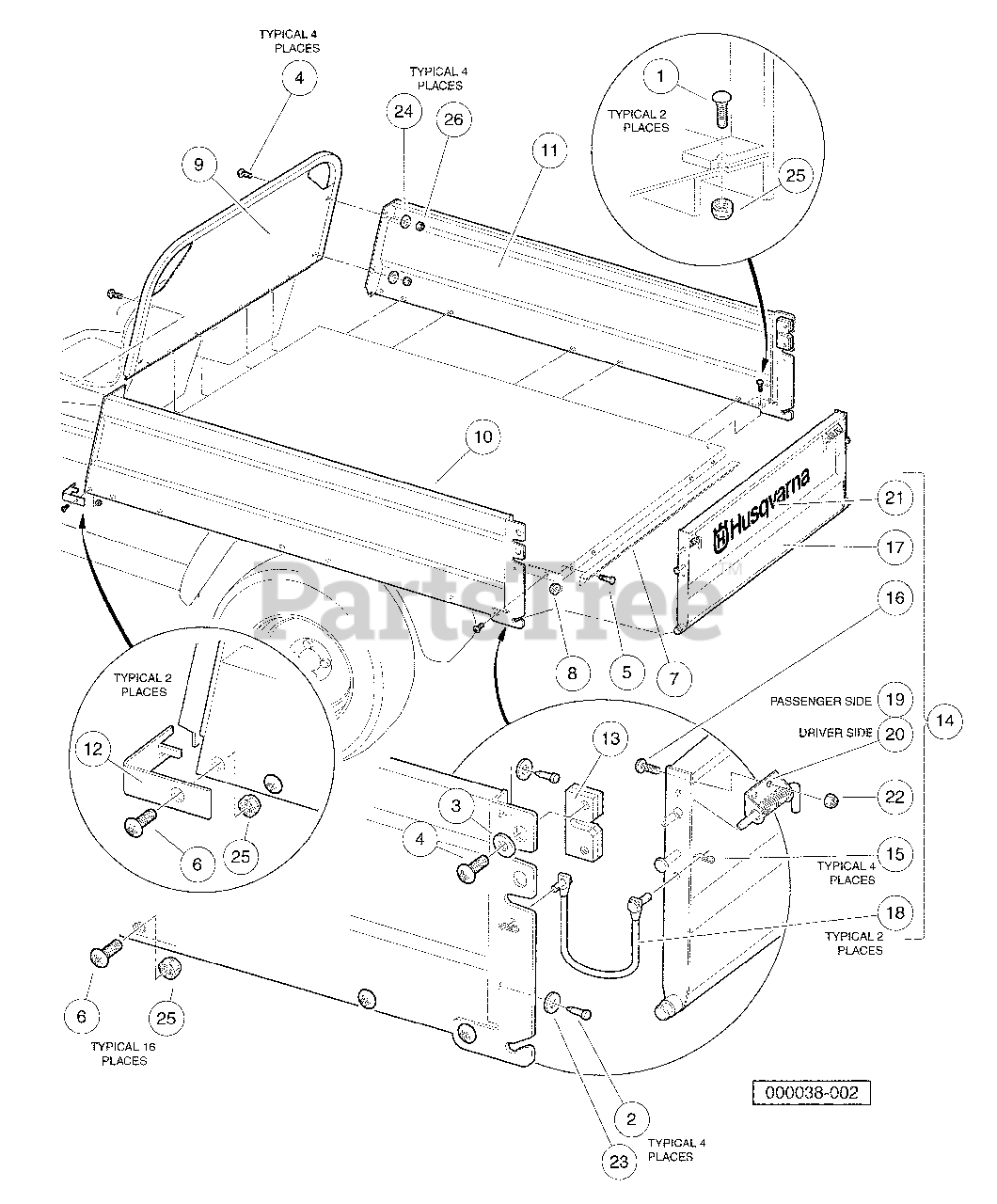

Cargo Box Parts Diagram

  • Title

1

Husqvarna 603000107

Bolt, Carriage, 5/16-18 X 1.00

$

$

Not available

2

Husqvarna 603000108

Bumper, Rubber

$

$

Not available

3

Husqvarna 603000222

Washer, 1/4" Type B Flat

$

$

Not available

4

Husqvarna 603000226

Screw, 1/4-20 X 0.75 Torx Truss-Head

$

$

Not available

5

Husqvarna 603000232

Stud, Self-Clinching Flush Head

$

$

Not available

6

Husqvarna 603000255

Screw, 5/16-18 X 0.88 Torx Truss-Head

$

$

Not available

7

Husqvarna 603000573

Box Bed Tailgate Angle

$

$

Not available

8

Husqvarna 603000616

Locknut, 5/16-18 Hex Flange

$

$

Not available

9

Husqvarna 603000802

Front Panel Weldment

$

$

Not available

10

Husqvarna 603000803

Left Panel Weldment

$

$

Not available

11

Husqvarna 603000804

Right Panel Weldment

$

$

Not available

12

Husqvarna 603000805

Front Corner Cap

$

$

Not available

13

Husqvarna 603000807

Slam Latch

$

$

Not available

14

Husqvarna 603000813

Assembly, Tailgate

Note: (includes items 15 through 22)

$

$

Not available

15

Husqvarna 603000172

Hair Pin Clip

$

$

Not available

16

Husqvarna 603000226

Screw, 1/4-20 X 0.75 Torx Truss-Head

$

$

Not available

17

Tailgate, Weldment

$

$

Not available

18

Husqvarna 603000806

Tether Assembly

$

$

Not available

19

Husqvarna 603000808

Spring Latch Left

$

$

Not available

20

Husqvarna 603000809

Spring Latch Right

$

$

Not available

21

Husqvarna 603001792

Decal, Husqvarna, Tailgate

$

$

Not available

22

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

23

Husqvarna 603000816

Washer, Rubber, 3/8

$

$

Not available

24

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available

25

Husqvarna 603000078

Locknut, 5/16-18 Nylon Insert

$

$

Not available

26

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available
