HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) TILT BED AND HINGE Parts Diagram

4x4 Utility Vehicle, Diesel

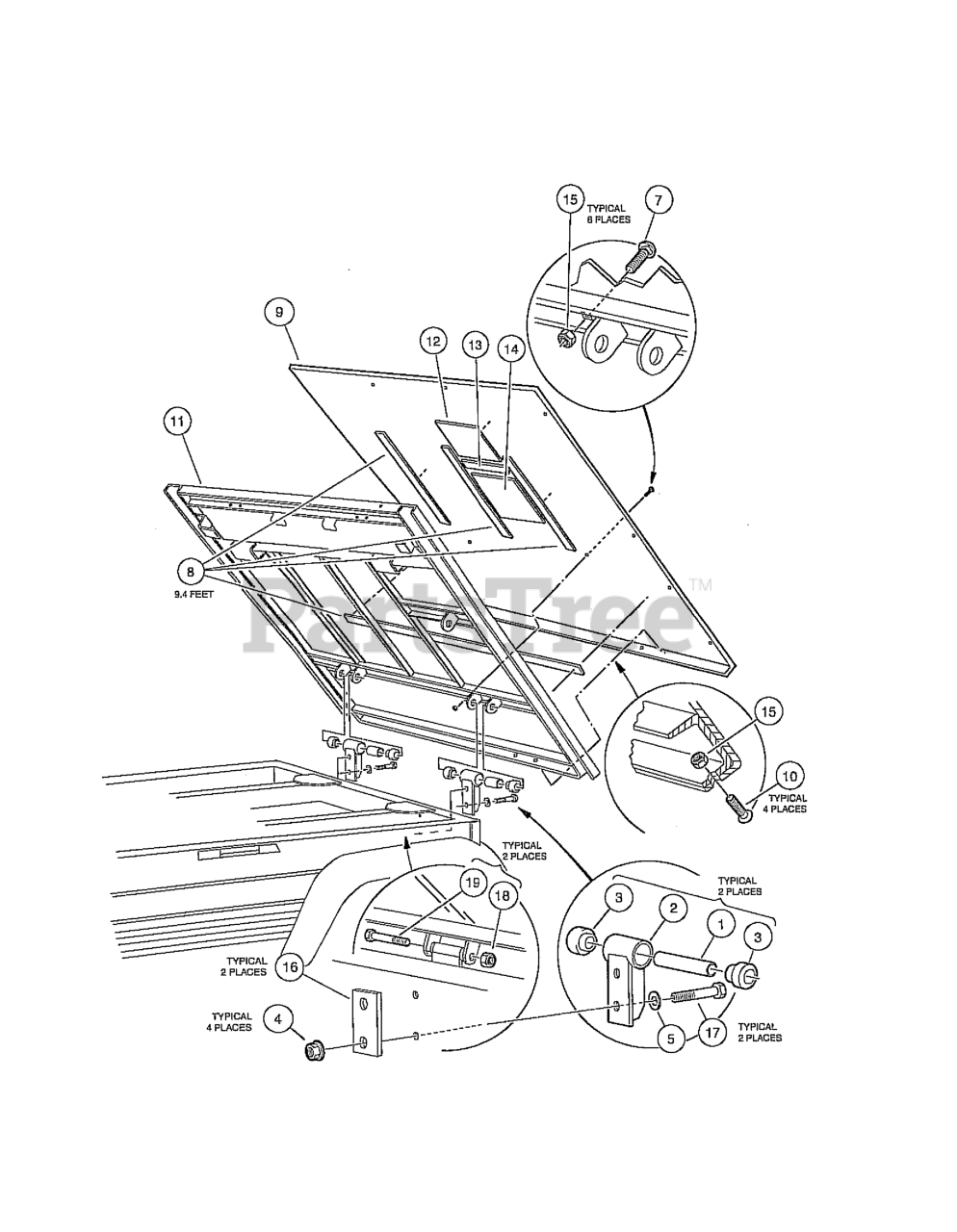

TILT BED AND HINGE Parts Diagram

  • Title

5

Husqvarna 603000781

WASHER, 3/8 TYPE B HARD FLAT

$

$

Not available

15

Husqvarna 603000078

LOCKNUT, 5/16-18 NYLON INSERT

$

$

Not available

7

Husqvarna 603000107

BOLT, 5/16-18 X 1.00 SQ.NECK

$

$

Not available

6

Husqvarna 603000797

TILT BED ASM AWD, ELEC LIFT

$

$

Not available

19

Husqvarna 603000096

SCREW, 3/8-16 X 3.375

$

$

Not available

16

Husqvarna 603001286

PLATE, BACK

$

$

Not available

4

Husqvarna 603000780

LOCKNUT, 3/8-16 FLANGED DIMPLE

$

$

Not available

8

Husqvarna 603000229

BOX INS.BULK

$

$

Not available

13

Husqvarna 603000102

FOAM, BARRIER, HEAT BED
(Superseded to 603001604)

$

$

Not available

2

Husqvarna 603000250

ASM, HINGE-TILT BED

$

$

Not available

17

Husqvarna 603000080

BOLT, 3/8-16 X 3.00 HEX HEAD

$

$

Not available

14

Husqvarna 603000103

FOAM, BARRIER, HEAT BED

$

$

Not available

18

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available

1

Husqvarna 603000136

BUSHING - STEEL (GAS CAR)

$

$

Not available

3

Husqvarna 603000263

BUSHING, URETHANE

$

$

Not available

10

Husqvarna 603000255

SCREW, 5/16-18 X .88 TRX TRUSS

$

$

Not available
