HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) STEERING Parts Diagram

4x4 Utility Vehicle, Diesel

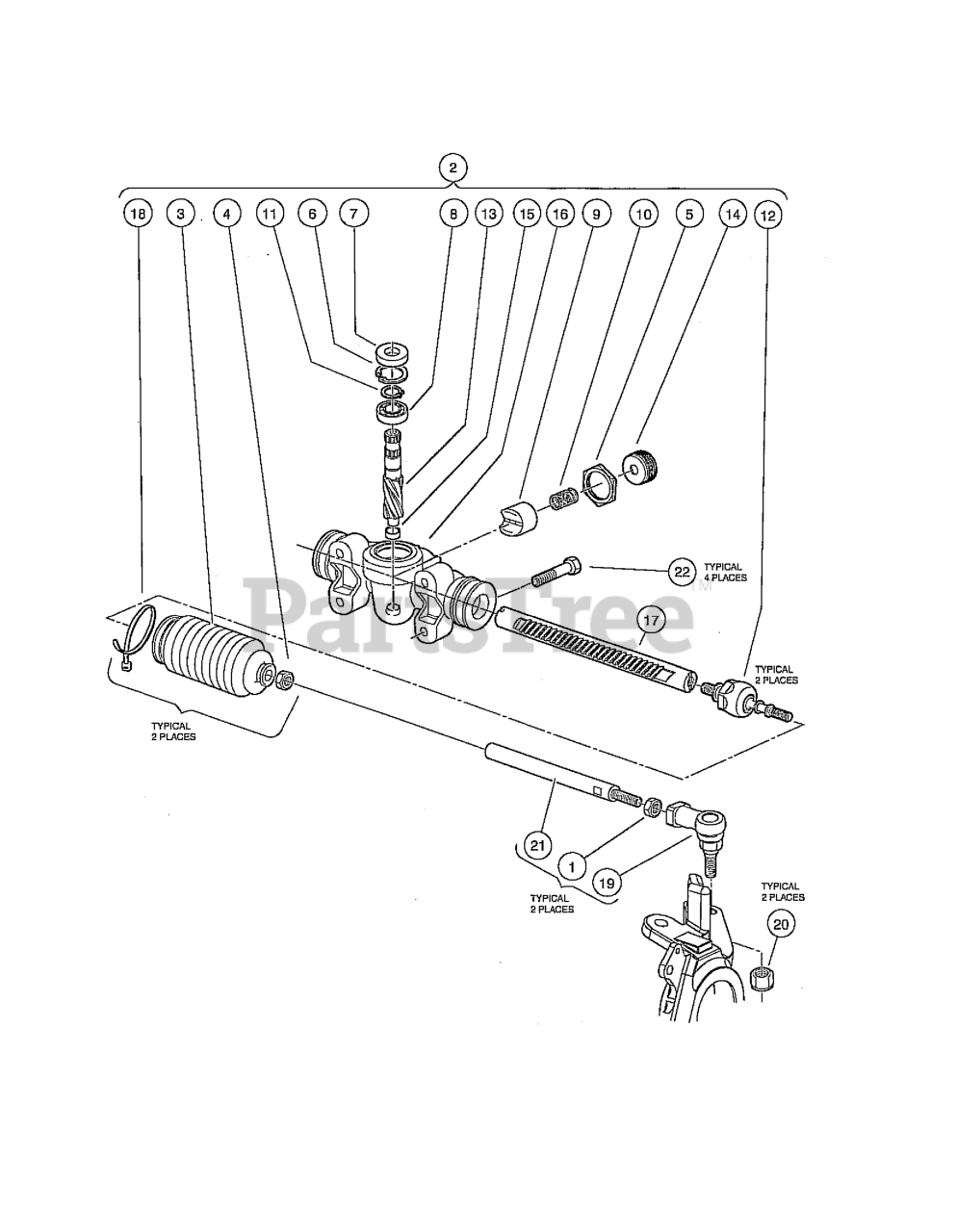

STEERING Parts Diagram

  • Title

19

Husqvarna 603000682

TIE ROD END

$

$

Not available

18

Husqvarna 603000099

TIE WRAP, 8" NYLON
(Superseded to 603002963)

$

$

Not available

22

Husqvarna 603001603

BOLT

$

$

Not available

1

Husqvarna 603000167

12MM HEX NUT

$

$

Not available

5

Husqvarna 603000168

RACK SCREW LOCKNUT

$

$

Not available

9

Husqvarna 603000550

SUPPORT YOKE

$

$

Not available

6

Husqvarna 603000169

SNAP RING

$

$

Not available

2

Husqvarna 603000636

STEERING RACK

$

$

Not available

10

Husqvarna 603000551

RACK GUIDE PRESSURE SPRING

$

$

Not available

8

Husqvarna 603000549

BEARING BALL

$

$

Not available

21

Husqvarna 603001073

LINK, DRAG

$

$

Not available

12

Husqvarna 603000553

INNER BALL JOINT ASM

$

$

Not available

4

Husqvarna 603000167

12MM HEX NUT

$

$

Not available

3

Husqvarna 603000166

BELLOWS, LONG

$

$

Not available

11

Husqvarna 603000552

C-TYPE STOP RING

$

$

Not available

20

Husqvarna 603000684

LOCKNUT, M12-1.25 NYLON

$

$

Not available

7

Husqvarna 603000170

SEAL, STEERING PINION DUST

$

$

Not available
