HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) SHAFT Parts Diagram

4x4 Utility Vehicle, Diesel

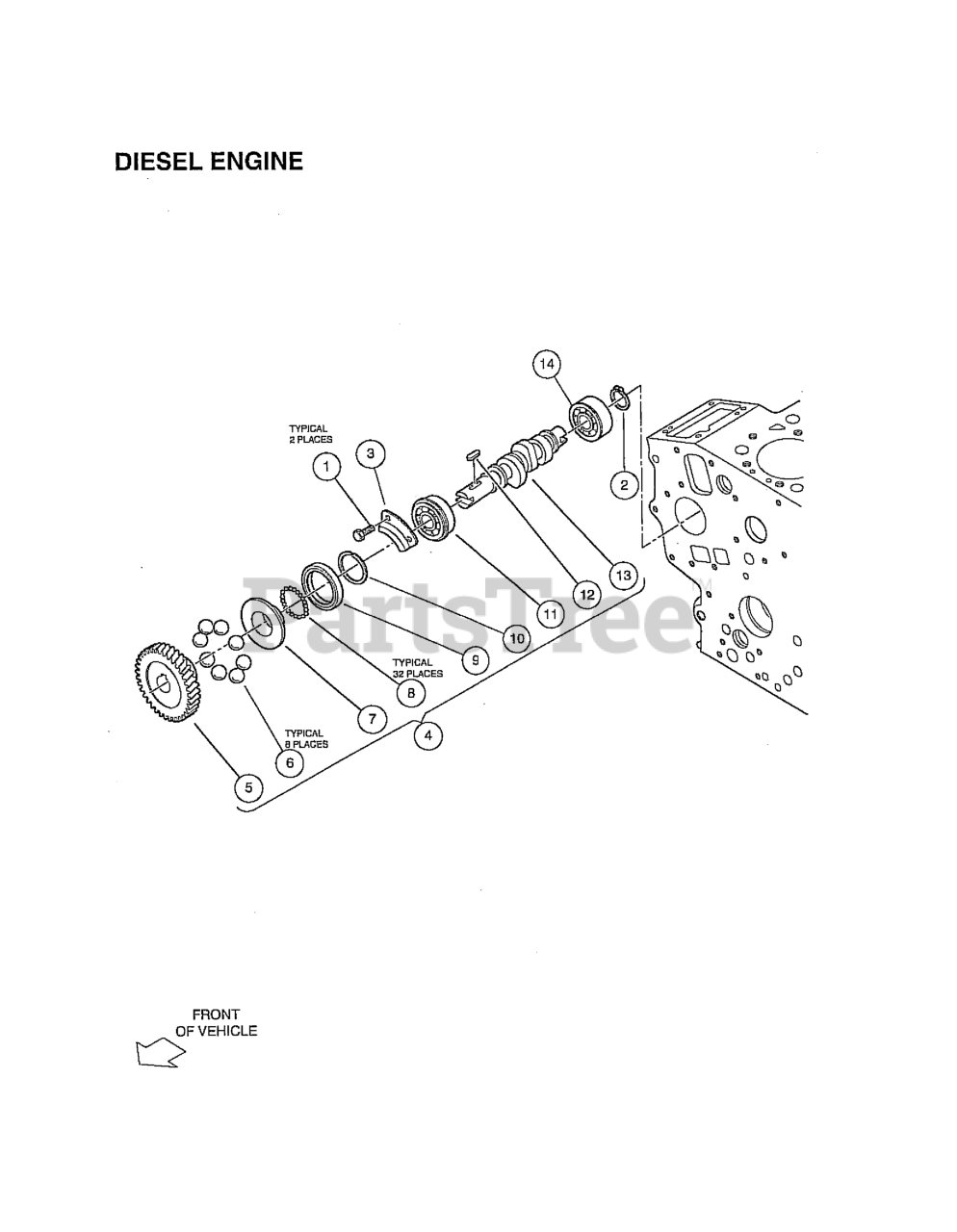

SHAFT Parts Diagram

  • Title

5

Husqvarna 603001222

GEAR, INJECTION PUMP

$

$

Not available

11

Husqvarna 603001229

BEARING, BALL, LEFT

$

$

Not available

7

Husqvarna 603001224

SLEEVE, GOVERNOR

$

$

Not available

3

Husqvarna 603001233

STOPPER, FUEL, C/SHAFT

$

$

Not available

2

Husqvarna 603001232

CIRCLIP, EXTERNAL

$

$

Not available

14

Husqvarna 603001724

BEARING, BALL, FUEL CAM REAR

$

$

Not available

13

Husqvarna 603001231

CAMSHAFT, FUEL, SHORT

$

$

Not available

1

Husqvarna 603001228

BOLT, D722, CAM END

$

$

Not available

9

Husqvarna 603001226

CASE, GOVERNOR BALL

$

$

Not available

12

Husqvarna 603001230

KEY, FEATHER, SHORT CAMSHAFT

$

$

Not available

6

Husqvarna 603001223

BALL, INJECTION PUMP

$

$

Not available

4

Husqvarna 603001723

ASSY, FUEL CAMSHAFT

$

$

Not available

8

Husqvarna 603001225

BALL, GOVERNOR

$

$

Not available

10

Husqvarna 603001227

CIR-CLIP, GOV. SLEEVE

$

$

Not available
