HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) ROPS Parts Diagram

4x4 Utility Vehicle, Diesel

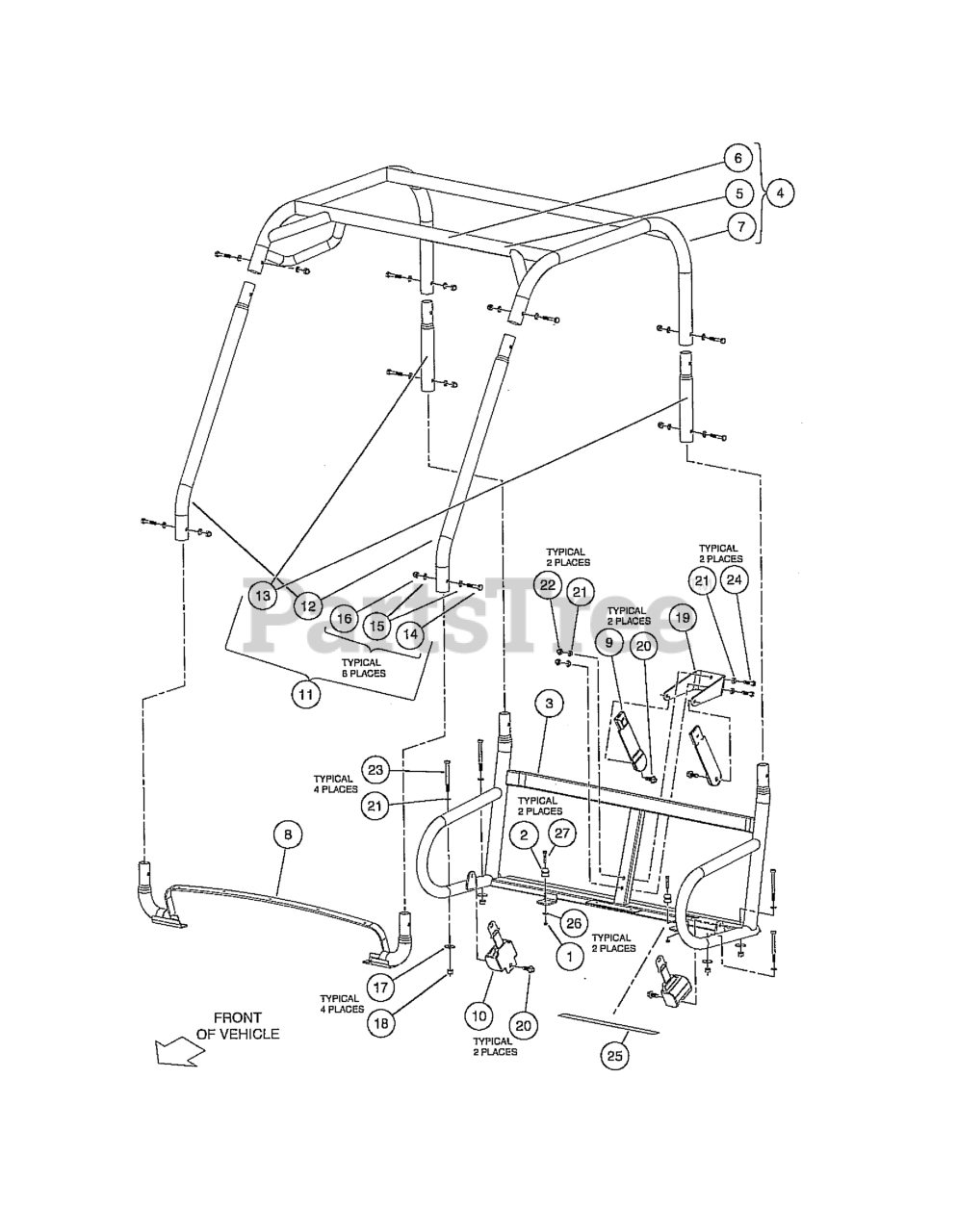

ROPS Parts Diagram

  • Title

4

Husqvarna 603000988

WELDMENT, TOP, ROPS

$

$

Not available

17

Husqvarna 603001174

WASHER HARD, M10

$

$

Not available

16

Husqvarna 603001674

NUT, HEX CAP, M10, ZN-NI/BLK

$

$

Not available

11

Husqvarna 603001160

KIT, ROPS

$

$

Not available

26

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available

14

Husqvarna 603001672

BOLT

$

$

Not available

22

Husqvarna 603001674

NUT, HEX CAP, M10, ZN-NI/BLK

$

$

Not available

19

Husqvarna 603001585

BRKT, SEATBELT, BOLT-ON

$

$

Not available

10

Husqvarna 603001066

RETRACTOR, SEAT BELT
(Superseded to 603001065)

$

$

Not available

8

Husqvarna 603000989

WELDMENT, SUPP, COWL, ROPS

$

$

Not available

13

Husqvarna 603000991

TUBE, SUPP, REAR, ROPS

$

$

Not available

20

Husqvarna 603001589

SCREW,M12X1.75X30 THD FORM BLK

$

$

Not available

12

Husqvarna 603000990

TUBE, SUPP, FRONT, ROPS

$

$

Not available

15

Husqvarna 603001673

WASHER, HARD, M10, ZN-NI/BLK

$

$

Not available

18

Husqvarna 603001300

NUT FLG M10 X 1.5 MECH DEF

$

$

Not available

21

Husqvarna 603001673

WASHER, HARD, M10, ZN-NI/BLK

$

$

Not available

5

Husqvarna 603001106

DECAL, WARNING UNDER 16

$

$

Not available

6

Husqvarna 603001314

DECAL, WARNING-CERTIFIED ROPS

$

$

Not available

3

Husqvarna 603000987

WELDMENT, SUPP, SEAT, ROPS

$

$

Not available

1

Husqvarna 603000558

LOCKNUT, M6-1.00 NYLON INSERT

$

$

Not available

24

Husqvarna 603001760

BOLT, M10 X 45, ZN-NI/BLK

$

$

Not available

9

Husqvarna 603001065

BUCKLE, SEAT BELT W/ SLEEVE

$

$

Not available

23

Husqvarna 603001759

BOLT, M10 X 100, ZN-NI/BLK

$

$

Not available

2

Husqvarna 603000773

SEAT HOLDER BASE

$

$

Not available
