HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) REAR SUSPENSION (STANDARD) Parts Diagram

4x4 Utility Vehicle, Diesel

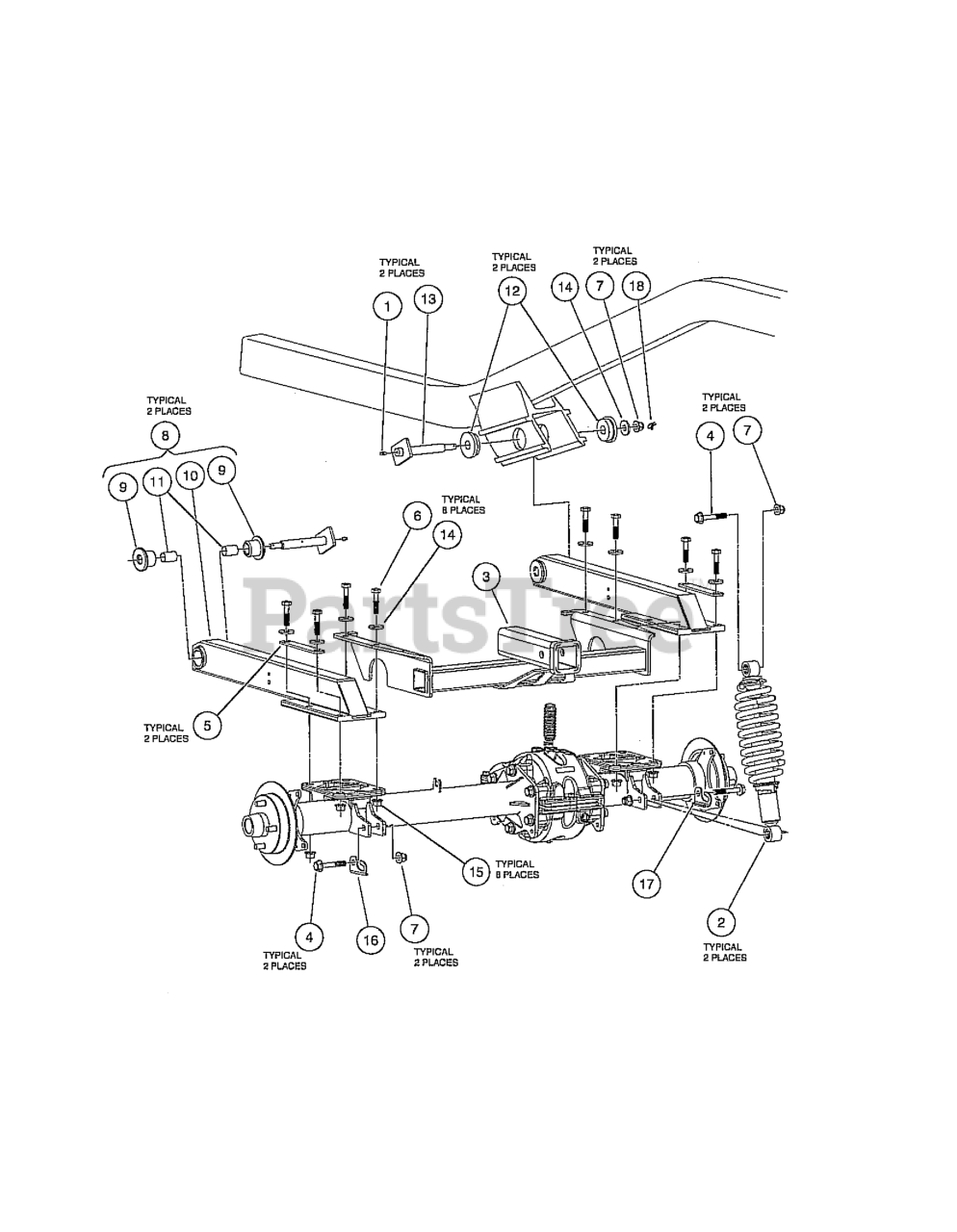

REAR SUSPENSION (STANDARD) Parts Diagram

  • Title

5

Husqvarna 603001310

WASHER, STRIP, SWINGARM

$

$

Not available

18

Husqvarna 603001763

COTTER-RUE RING

$

$

Not available

17

Husqvarna 603001607

BRKT, LINE, HYD, SHK MNT, PASS

$17.99

$

In Stock, only 1 left!

0

10

Husqvarna 603001147

WELDMENT SWINGARM
(Superseded to 603004117)

$

$

Not available

9

Husqvarna 603000944

BUSHING, PIVOT, URETHANE

$

$

Not available

1

Husqvarna 603000264

FITTING, 1/4-28 THRD FRM GREAS

$6.99

$

In Stock, only 1 left!

0

2

Husqvarna 603000894

SHOCK, COIL OVER REAR

$

$

Not available

7

Husqvarna 603001312

NUT FLG, M12X1.75, NYLON GR 10

$

$

Not available

15

Husqvarna 603001602

NUT

$

$

Not available

11

Husqvarna 603001148

BUSHING, TEFLON

$

$

Not available

4

Husqvarna 603001292

BOLT, FLG, M12X1.75X70

$

$

Not available

6

Husqvarna 603001311

BOLT FLG, M12X1.75X50

$

$

Not available

3

Husqvarna 603000941

WELDMENT, RECEIVER, REAR

$

$

Not available

13

Husqvarna 603001597

PIN, SWINGARM, WELDMENT

$

$

Not available

16

Husqvarna 603001606

BRKT, LINE, HYD, SHK MNT, DRV

$

$

Not available

14

Husqvarna 603001599

WASHER, M12 HARD REGULAR

$

$

Not available
