HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) RADIATOR Parts Diagram

4x4 Utility Vehicle, Diesel

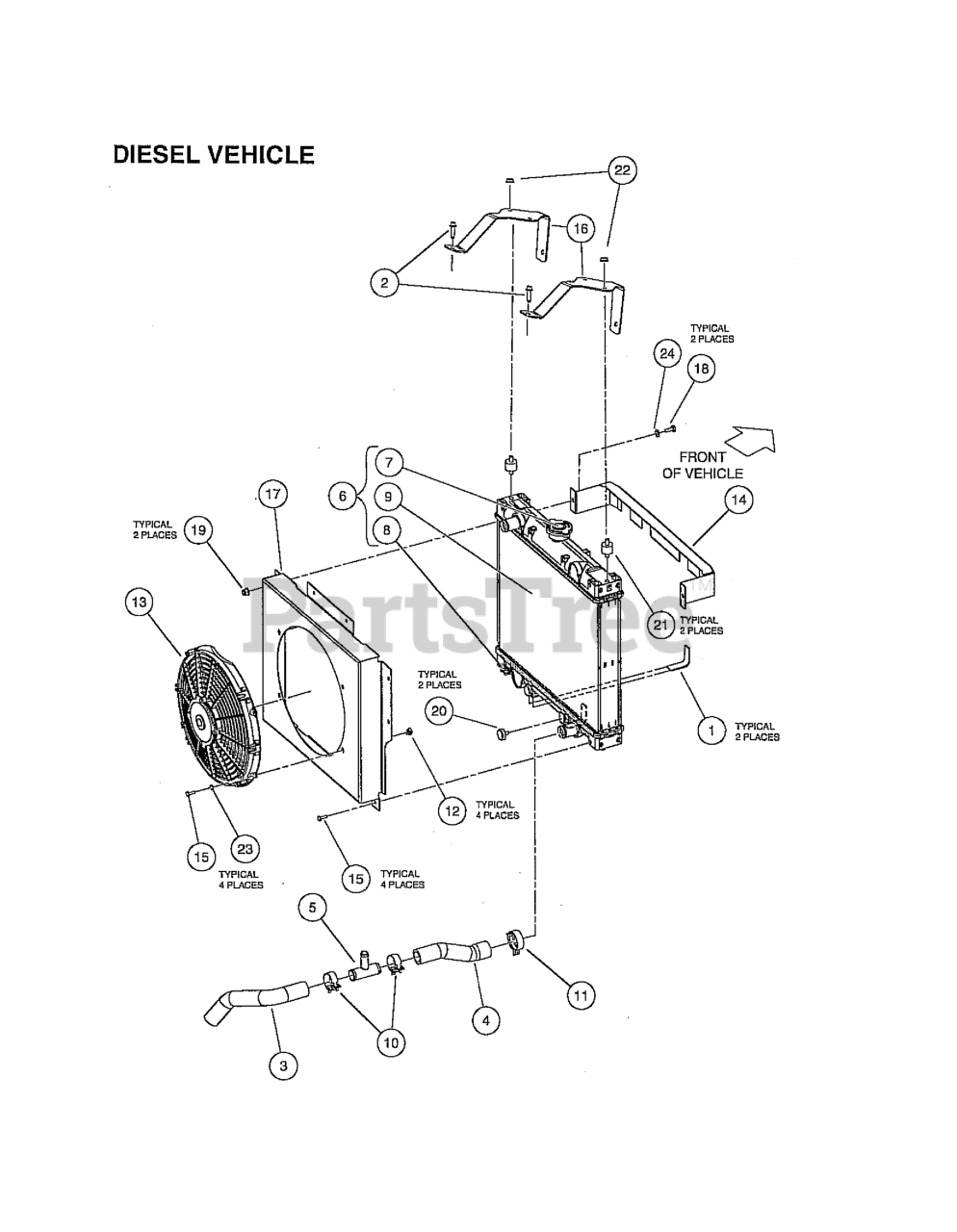

RADIATOR Parts Diagram

  • Title

20

Husqvarna 603001598

BUMPER, 13MM STUD

$

$

Not available

12

Husqvarna 603000977

NUT, SELF RETAINING

$

$

Not available

24

Husqvarna 603000450

WASHER, M8 HARD

$

$

Not available

10

Husqvarna 603000973

CLAMP, HOSE, CTB 35MM

$

$

Not available

3

Husqvarna 603000929

HOSE, COOLANT LOWER PIPE

$

$

Not available

22

Husqvarna 603000438

NUT FLG, M8 X 1.25 SERRATED

$

$

Not available

23

Husqvarna 603000442

WASHER, M6

$

$

Not available

5

Husqvarna 603000934

TEE, COOLANT FILL

$

$

Not available

6

Husqvarna 603000964

EXCHANGER, ENGINE COOLANT

$

$

Not available

11

Husqvarna 603000974

CLAMP, HOSE, CTB 38MM

$

$

Not available

14

Husqvarna 603001076

GUARD, RADIATOR-TOP

$

$

Not available

4

Husqvarna 603000930

HOSE, COOLANT LOWER RAD

$

$

Not available

21

Husqvarna 603001601

ISOLATOR, TWIN STUD, RADIATOR

$

$

Not available

18

Husqvarna 603001190

BOLT, M8 X 1.25 X 20

$

$

Not available

19

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

17

Husqvarna 603001185

SHROUD, RADIATOR FAN

$

$

Not available

2

Husqvarna 603000869

SCREW-M8 X 1.25 30, TRI, HX F

$

$

Not available

13

Husqvarna 603001021

FAN, COOLING 12 IN ELECT

$

$

Not available

16

Husqvarna 603001184

BRACKET, UPPER RADIATOR MOUNT

$

$

Not available

1

Husqvarna 603000229

BOX INS.BULK

$

$

Not available

15

Husqvarna 603001167

BOLT, M6 X 1 X 16 LOCTITE

$

$

Not available
