HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) NOZZLE HOLDERS AND GLOW PLUGS Parts Diagram

4x4 Utility Vehicle, Diesel

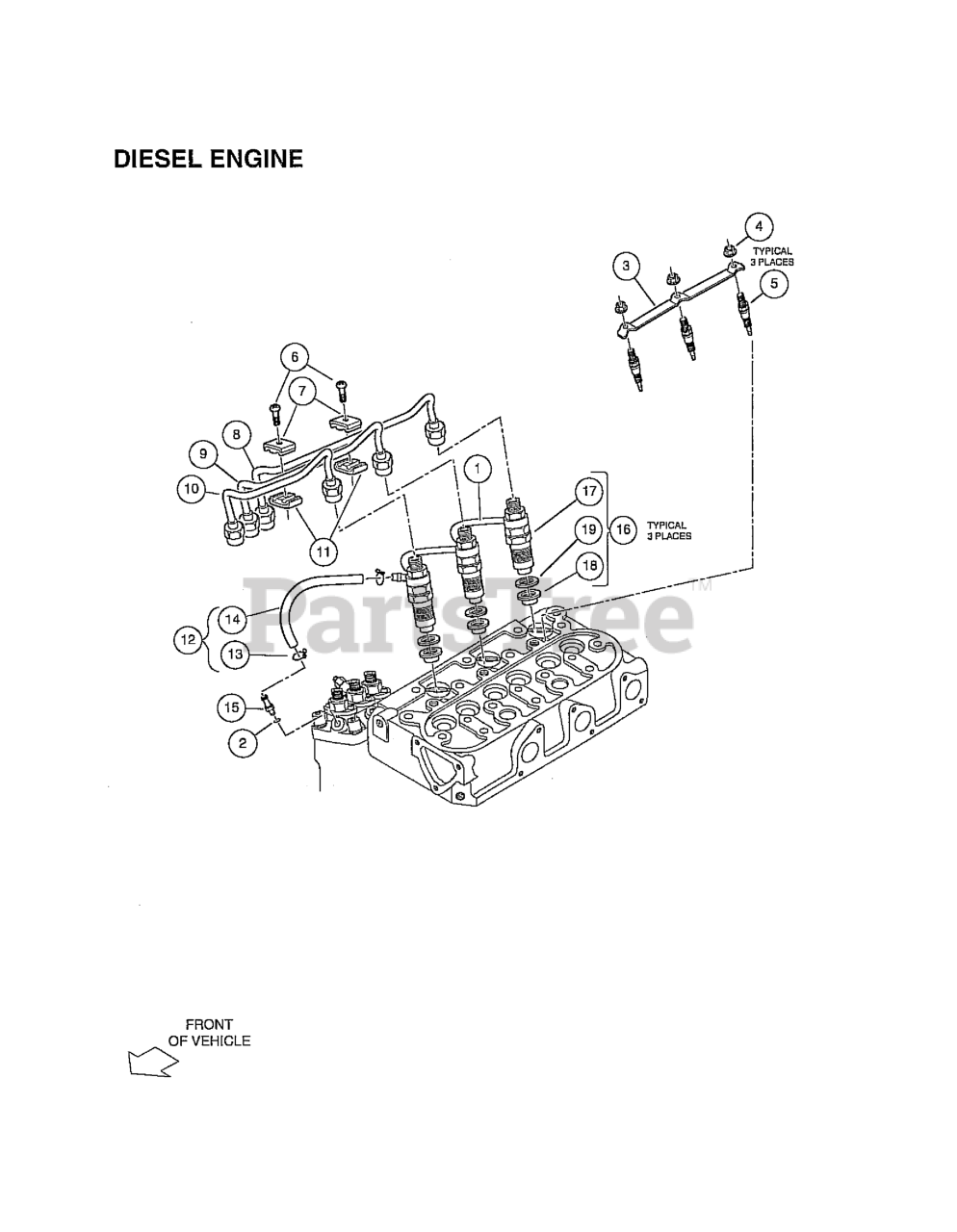

NOZZLE HOLDERS AND GLOW PLUGS Parts Diagram

  • Title
15

Husqvarna 603001405

SCREW, AIR BREEDER

$

$

Not available

5

$

$

Not available

7

Husqvarna 603001398

CLAMP, PIPE, TOP

$

$

Not available

19

Husqvarna 603001404

GASKET, NOZZLE

$

$

Not available

11

Husqvarna 603001402

CLAMP, PIPE, BOTTOM

$

$

Not available

1

$

$

Not available

2

Husqvarna 603001369

GASKET, 6X10

$

$

Not available

13

Husqvarna 603001734

CLIP, PIPE, RETURN

$

$

Not available

6

Husqvarna 603001397

SCREW-WASHER

$

$

Not available

16

Husqvarna 603001735

KIT, HOLDER, NOZZLE

$

$

Not available

8

Husqvarna 603001399

PIPE, INJECTION, LEFT

$

$

Not available

17

Husqvarna 603001392

ASSY HOLDER, NOZZLE

$

$

Not available

10

Husqvarna 603001401

PIPE, INJECTION, MIDDLE

$

$

Not available

3

Husqvarna 603001393

CORD, GLOW PLUG

$

$

Not available

4

Husqvarna 603001394

NUT, FLANGE, M4

$

$

Not available

12

Husqvarna 603001403

ASSY PIPE, OVERFLOW

$

$

Not available

18

Husqvarna 603001396

SEAL, HEAT

$

$

Not available

9

Husqvarna 603001400

PIPE, INJECTION, RIGHT

$

$

Not available
