HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) GOVERNOR SYSTEM - GASOLINE VEHICLES Parts Diagram

4x4 Utility Vehicle, Diesel

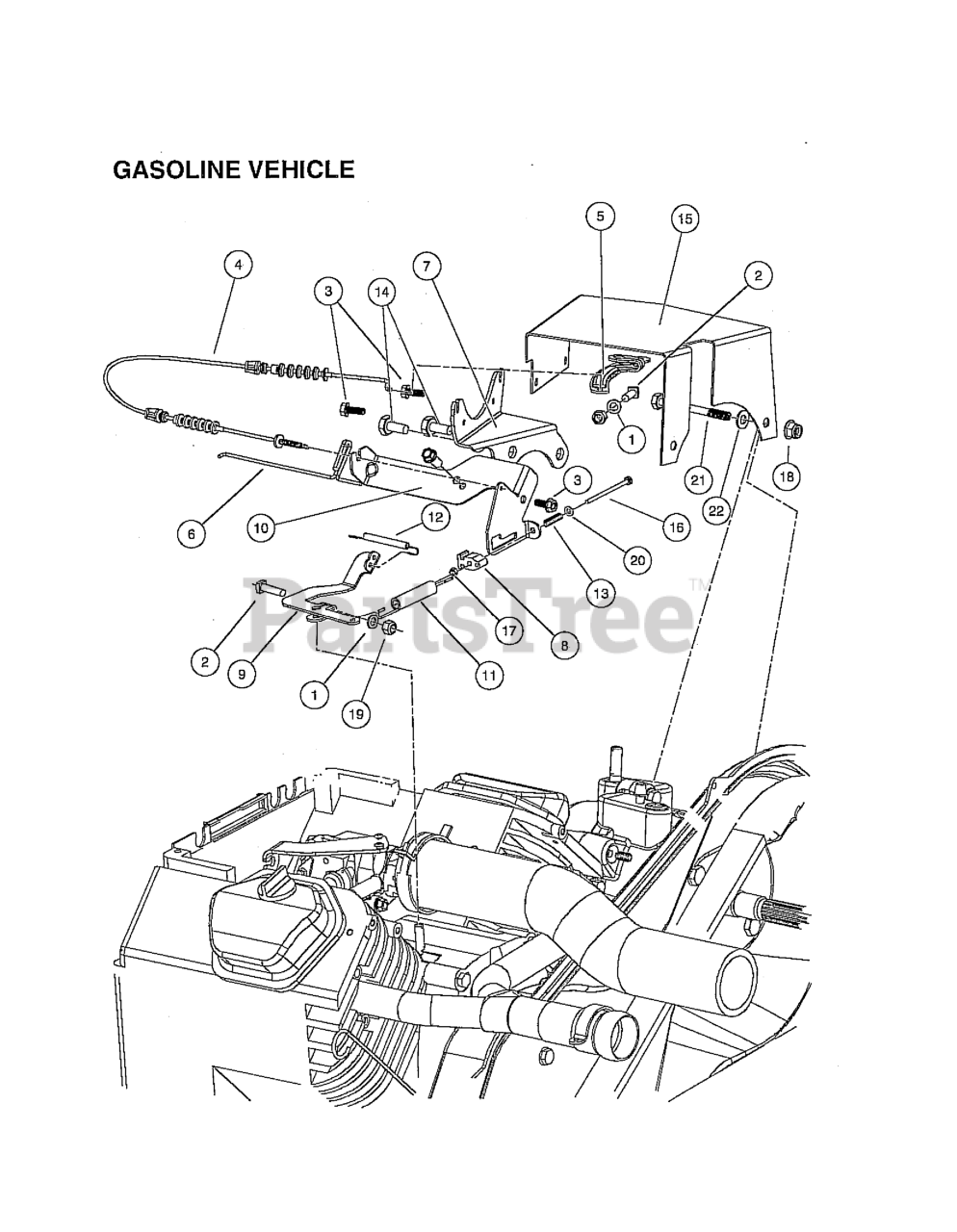

GOVERNOR SYSTEM - GASOLINE VEHICLES Parts Diagram

  • Title

18

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

15

Husqvarna 603001194

GUARD, GOVERNOR, GROUND SPEED

$

$

Not available

8

Husqvarna 603001077

ADJUSTER, SPRING, IDLE

$

$

Not available

5

Husqvarna 603001012

BRACKET, GOVERNOR, ARM, TRANS

$

$

Not available

16

Husqvarna 603001296

BOLT, M4X.7X60

$

$

Not available

3

Husqvarna 603000874

SCREW, M6 X 16 TT HX FL HD

$2.49

$

In Stock, only 4 left!

0

22

Husqvarna 603000450

WASHER, M8 HARD

$

$

Not available

13

Husqvarna 603001096

SPRING, COMPRESSION, ADJ, IDLE

$

$

Not available

19

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

20

Husqvarna 603000447

WASHER, M4

$

$

Not available

7

Husqvarna 603001075

BRACKET, GOVERNOR, TRANS CABLE

$

$

Not available

11

Husqvarna 603001094

SPRING, IDLE , GOVERNOR

$

$

Not available

6

Husqvarna 603001013

WIRE, GOVERNOR

$

$

Not available

14

Husqvarna 603001165

BOLT, M10 X 1.5 X 20 LOCTITE

$

$

Not available

10

Husqvarna 603001089

BRACKET, CABLE, GOV, ENGINE

$

$

Not available

12

Husqvarna 603001095

SPRING, CARB

$

$

Not available

1

Husqvarna 603000194

WASHER

$

$

Not available

17

Husqvarna 603001297

NUT FLG, M4 X 0.7 MECH DEF

$

$

Not available

4

Husqvarna 603000997

CABLE, GOVERNOR, GX620

$

$

Not available

2

Husqvarna 603000557

SCREW, 1/4-20 X 1.00 SQ HEAD

$

$

Not available

21

Husqvarna 603000449

BOLT, M8 X 1.25 X 80

$

$

Not available

9

Husqvarna 603001088

BRACKET, ARM, GOV, ENGINE

$

$

Not available
