HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) FUEL TANK 2 Parts Diagram

4x4 Utility Vehicle, Diesel

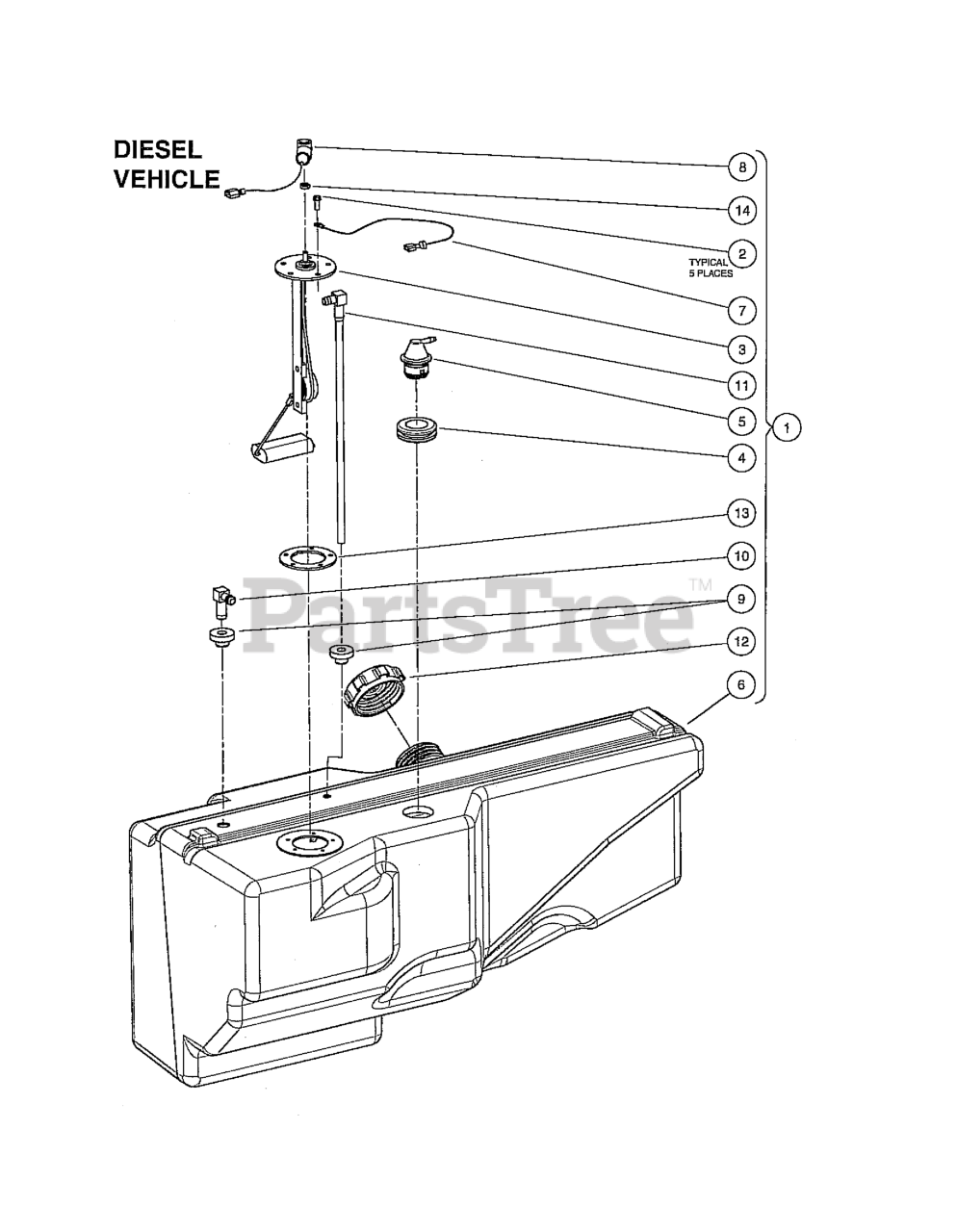

FUEL TANK 2 Parts Diagram

  • Title
14

Husqvarna 603000097

NUT, #10-32 BRASS HEX

$

$

Not available

11

Husqvarna 603001152

PICKUP TUBE, FUEL

$

$

Not available

10

Husqvarna 603000952

ELBOW, 90 BARBED

$

$

Not available

4

Husqvarna 603000241

INSULATION GROMMET

$

$

Not available

$

$

Not available

1

Husqvarna 603000949

ASM, TANK, DIESEL, SIDEFILL
(Superseded to 581766901)

$

$

Not available

12

Husqvarna 603001187

ASM, CAP, FUEL, DIESEL, PTD

$

$

Not available

9

Husqvarna 603000951

BUSHING, LINE, RETURN

$

$

Not available

13

Husqvarna 603001197

GASKET, SEND UNIT (RUBBER)
(Superseded to 603003057)

$

$

Not available

5

Husqvarna 603000242

FUEL TANK VENT ASSY
(Superseded to 589258901)

$

$

Not available
