HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) FUEL SYSTEM Parts Diagram

4x4 Utility Vehicle, Diesel

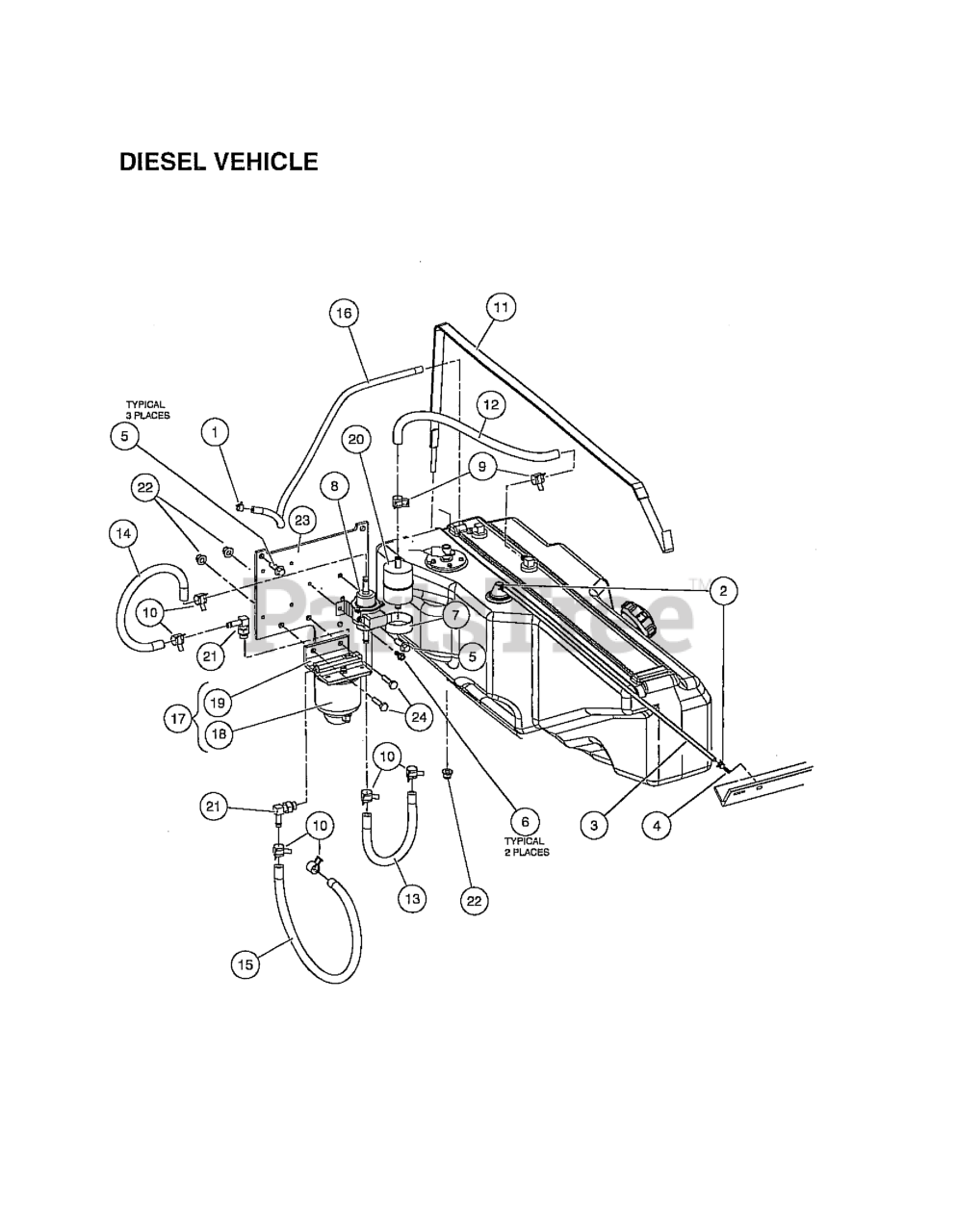

FUEL SYSTEM Parts Diagram

  • Title

16

Husqvarna 603001009

HOSE, FUEL RETURN

$

$

Not available

7

Husqvarna 603000965

P-CLAMP, INSULATED 1.75 IN

$

$

Not available

14

Husqvarna 603001007

HOSE, FUEL PUMP TO FILTER

$

$

Not available

8

Husqvarna 603000967

PUMP, DIESEL FUEL ELECTRIC

$

$

Not available

18

Husqvarna 603000044

FILTER, WATER SEPARATOR

$

$

Not available

23

Husqvarna 603001667

PLATE, FUEL/OIL SYSTEM

$

$

Not available

3

Husqvarna 603000465

TUBE, CARBURETOR AIR VENT

$

$

Not available

21

Husqvarna 603001015

ADAPTER, 90-5 ORB, 5/16 TUBE

$

$

Not available

1

Husqvarna 603000457

CLAMP, GREEN HOSE

$

$

Not available

20

Husqvarna 603000042

FILTER,FUEL

$

$

Not available

11

Husqvarna 603001000

STRAP, TANK, FUEL

$

$

Not available

4

Husqvarna 603000503

VENT BARB

$

$

Not available

13

Husqvarna 603001006

HOSE, FUEL PREFILTER TO PUMP

$

$

Not available

5

Husqvarna 603000869

SCREW-M8 X 1.25 30, TRI, HX F

$

$

Not available

12

Husqvarna 603001005

HOSE, TANK TO PREFILTER DIESEL

$

$

Not available

24

Husqvarna 603000443

BOLT, M8 X 1.25 X 30

$

$

Not available

2

Husqvarna 603000185

CLAMP

$

$

Not available

15

Husqvarna 603001008

HOSE, FUEL FILTER TO ENG

$

$

Not available

6

Husqvarna 603000874

SCREW, M6 X 16 TT HX FL HD

$2.49

$

In Stock, only 4 left!

0

9

Husqvarna 603000968

CLAMP, HOSE, CTB 13MM

$

$

Not available

10

Husqvarna 603000969

CLAMP, HOSE, CTB 14MM

$

$

Not available

22

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available
