HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) FRONT BODY TRIM, DIESEL VEHICLES Parts Diagram

4x4 Utility Vehicle, Diesel

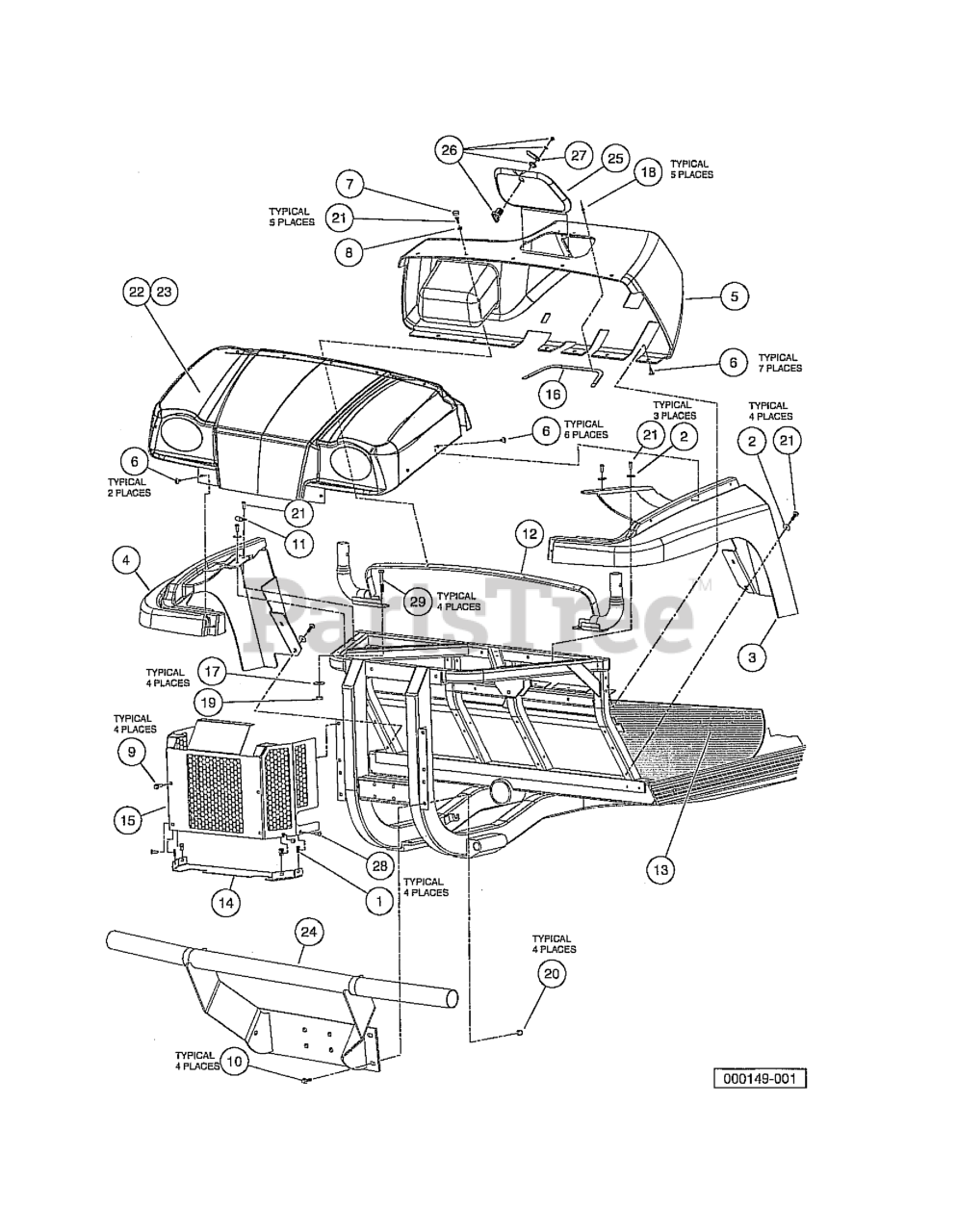

FRONT BODY TRIM, DIESEL VEHICLES Parts Diagram

  • Title
3

Husqvarna 603000674

FENDER, LEFT FRONT B

$

$

Not available

16

Husqvarna 603001151

SUPPORT, ACCESS PANEL, DASH

$

$

Not available

19

Husqvarna 603001300

NUT FLG M10 X 1.5 MECH DEF

$

$

Not available

5

Husqvarna 603000678

DASH BOARD WITH ACCESS HOLE

$

$

Not available

23

Husqvarna 603001676

COWL, OEM, ORANGE

$

$

Not available

$

$

Not available

22

Husqvarna 603001675

Cowl, Camo

$

$

Not available

9

Husqvarna 603000870

SCREW, M8 X 1.25 X 30 TRI, BLK

$

$

Not available

11

Husqvarna 603000966

P-CLAMP, INSULATED .312 IN

$

$

Not available

21

Husqvarna 603001325

SCREW, 1/4-20X1.0 PN HD TORX

$

$

Not available

4

Husqvarna 603000676

FENDER - RIGHT FRONT B

$

$

Not available

25

Husqvarna 603001010

PANEL, ACCESS, DASH
(Superseded to 603002766)

$

$

Not available

29

Husqvarna 603000448

BOLT, M10 X 1.50 X 65

$

$

Not available

12

Husqvarna 603000989

WELDMENT, SUPP, COWL, ROPS

$

$

Not available

18

Husqvarna 603001181

RIVET, .125" DIA, .311" PANEL

$

$

Not available

24

Husqvarna 603001769

Brush Guard

$

$

Not available

15

Husqvarna 603001059

WELDMENT, RADIATOR GUARD
(Superseded to 603001058)

$

$

Not available

27

Husqvarna 603001180

LATCH, CAM, ACCESS PANEL
(Superseded to 603002785)

$

$

Not available

6

Husqvarna 603000695

SCREW, TUFLOK PANEL, 1/4

$

$

Not available

20

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

17

Husqvarna 603001174

WASHER HARD, M10

$

$

Not available

1

Husqvarna 603000210

NUT, 1/4-20 SPEED

$

$

Not available

14

Husqvarna 603001058

GUARD, RADIATOR BOTTOM

$

$

Not available

10

Husqvarna 603000875

BOLT - FLANGED HD, M8 X 30.0

$

$

Not available

28

Husqvarna 603000090

SCREW 1/4-20 X .75

$

$

Not available

26

Husqvarna 603001149

CAM LOCK BODY
(Superseded to 603002778)

$

$

Not available

13

Husqvarna 603001011

MAT, FLOOR AWD

$

$

Not available
