HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) ELECTRICAL 2 Parts Diagram

4x4 Utility Vehicle, Diesel

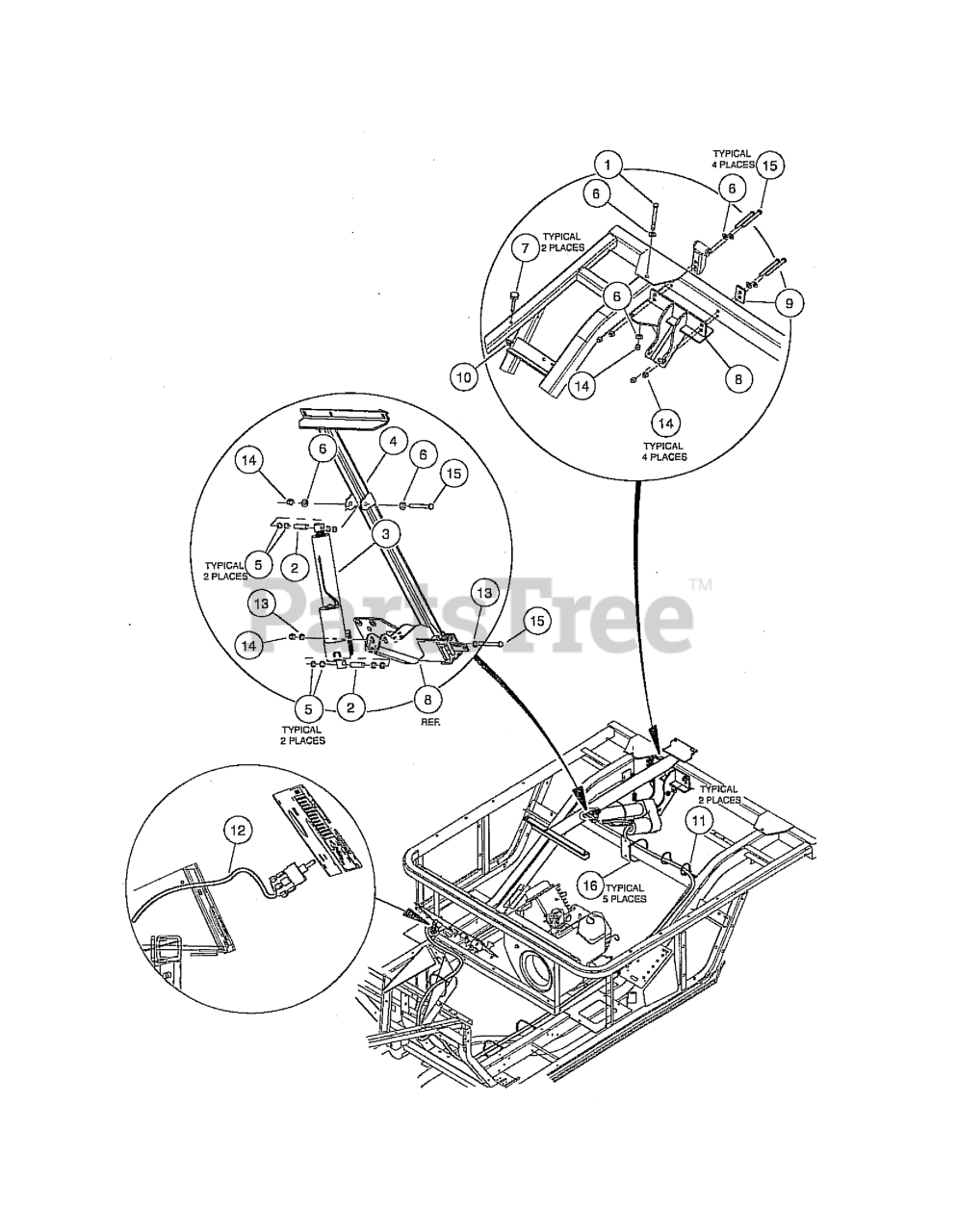

ELECTRICAL 2 Parts Diagram

  • Title

6

Husqvarna 603000781

WASHER, 3/8 TYPE B HARD FLAT

$

$

Not available

2

Husqvarna 603000365

BUSHING LONG

$

$

Not available

15

Husqvarna 603000096

SCREW, 3/8-16 X 3.375

$

$

Not available

10

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

7

Husqvarna 603001001

BUMPER, BED, MTG, FRONT

$

$

Not available

8

Husqvarna 603001127

WELDMENT, BRACKET, ACTUATOR

$

$

Not available

5

Husqvarna 603000434

BODY SPACER

$

$

Not available

12

Husqvarna 603001595

WIRE HARNESS, ELECTRIC LIFT

$

$

Not available

13

Husqvarna 603000056

WASHER,LOCK,HEL SP 3/8 REG

$

$

Not available

3

Husqvarna 603000384

ACTUATOR ASSEMBLY, ELECTRIC

$

$

Not available

16

Husqvarna 603000099

TIE WRAP, 8" NYLON
(Superseded to 603002963)

$

$

Not available

14

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available

11

Husqvarna 603001327

TIE WRAP, 8.00" WITH MOUNT

$

$

Not available

1

Husqvarna 603000106

BOLT HEX HEAD

$

$

Not available

9

Husqvarna 603001286

PLATE, BACK

$

$

Not available

4

Husqvarna 603000385

ASM, ACTUATOR ADAPTER

$

$

Not available
