HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) CYLINDER HEAD 2 Parts Diagram

4x4 Utility Vehicle, Diesel

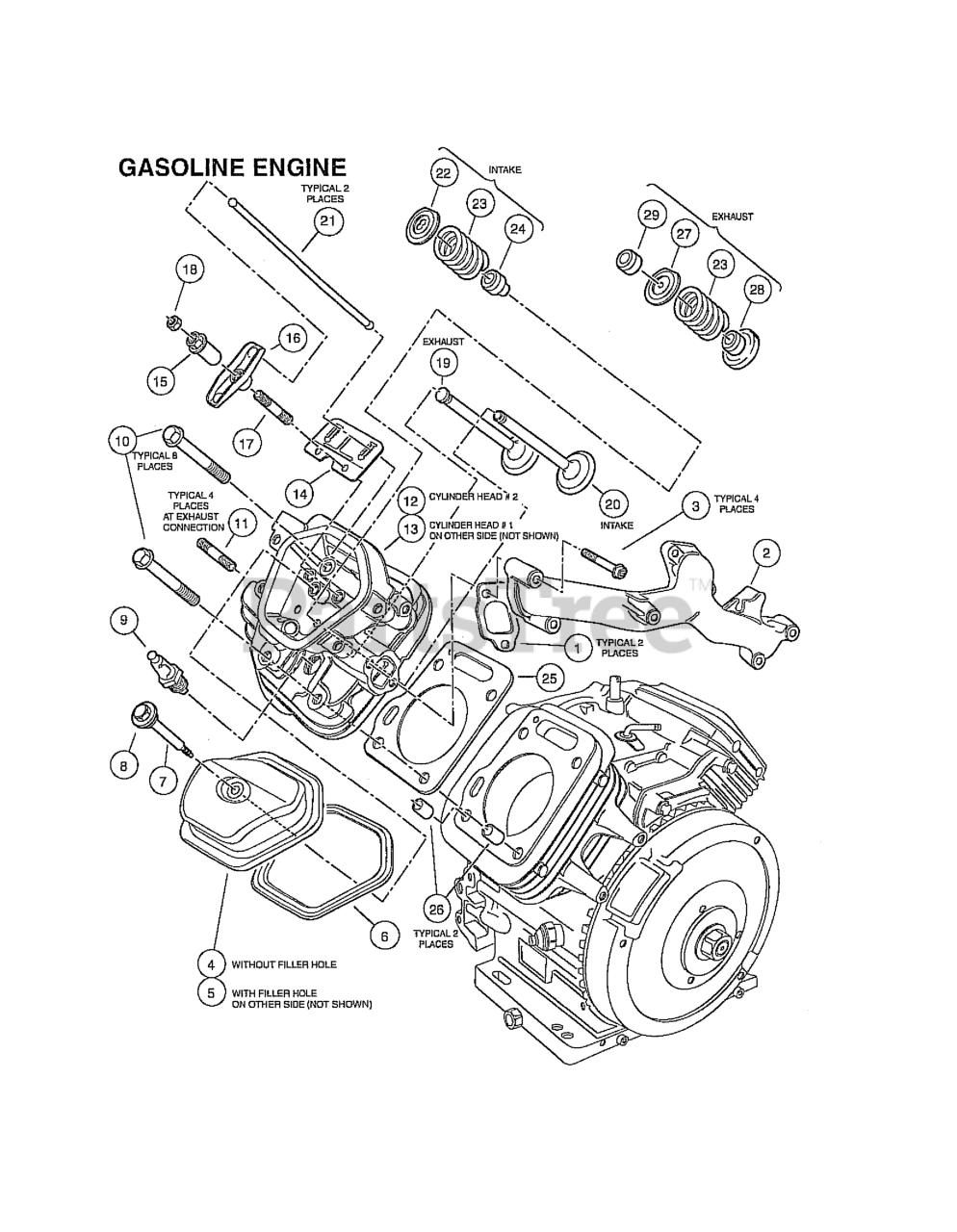

CYLINDER HEAD 2 Parts Diagram

  • Title

2

Husqvarna 603001485

MANIFOLD, IN

$

$

Not available

10

Husqvarna 603001538

BOLT, FLANGE, M10 X 1.5 X 80

$

$

Not available

29

Husqvarna 603001687

ROTATOR, VALVE

$

$

Not available

26

Husqvarna 603001554

PIN A, DOWEL, 12 X 20

$

$

Not available

6

Husqvarna 603001535

GASKET, CYLINDER HEAD COVER

$

$

Not available

19

Husqvarna 603001547

VALVE, EX

$

$

Not available

18

Husqvarna 603001546

NUT, PIVOT ADJ

$

$

Not available

28

Husqvarna 603001686

SEAT, VALVE SPRING

$

$

Not available

1

Husqvarna 603001484

GASKET, IN. MANIFOLD

$

$

Not available

21

Husqvarna 603001549

ROD, PUSH

$

$

Not available

22

Husqvarna 603001550

RETAINER, IN VALVE SPRING

$

$

Not available

8

Husqvarna 603001537

WASHER, HEAD COVER

$

$

Not available

16

Husqvarna 603001544

ARM, VALVE ROCKER

$

$

Not available

4

Husqvarna 603001533

COVER, HEAD

$

$

Not available

13

Husqvarna 603001541

CYLINDER HEAD, #1

$

$

Not available

20

Husqvarna 603001548

VALVE, IN

$

$

Not available

23

Husqvarna 603001551

SPRING, VALVE

$

$

Not available

11

Husqvarna 603001539

BOLT, STUD, M8X22

$

$

Not available

7

Husqvarna 603001536

BOLT, HEAD COVER

$

$

Not available

25

Husqvarna 603001553

GASKET, CYLINDR HEAD

$

$

Not available

14

Husqvarna 603001542

PLATE, PUSH ROD GUIDE

$

$

Not available

12

Husqvarna 603001540

CYLINDER HEAD, #2

$

$

Not available

5

Husqvarna 603001534

COVER, HEAD FILLER

$

$

Not available

24

Husqvarna 603001552

SEAL, VALVE STEM

$

$

Not available

9

Husqvarna 603000039

SPARK PLUG, BPR2ES,NGK
(Superseded to 603003770)

$3.99

$

In Stock, only 1 left!

0

17

Husqvarna 603001545

BOLT, PIVOT, M8

$

$

Not available

15

Husqvarna 603001543

PIVOT, ROCKER ARM

$

$

Not available

27

Husqvarna 603001685

RETAINER, EX VALVE SPRING

$

$

Not available

3

Husqvarna 603001486

BOLT, SOCKET, M8 X 1.25 X 45

$

$

Not available
