HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) CARBURETOR INSTALLATION, GASOLINE VEHICLES Parts Diagram

4x4 Utility Vehicle, Diesel

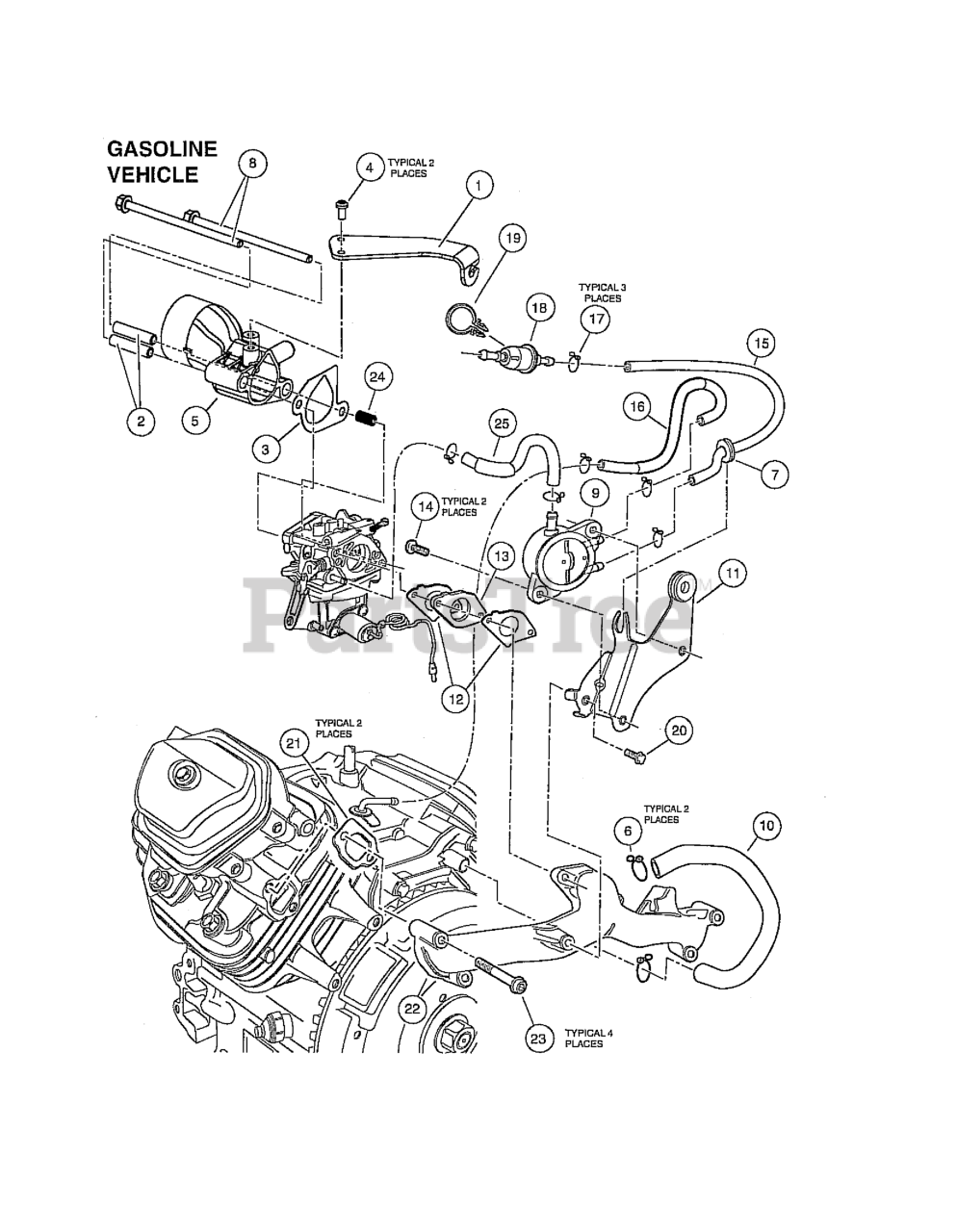

CARBURETOR INSTALLATION, GASOLINE VEHICLES Parts Diagram

  • Title

25

Husqvarna 603001697

TUBE A, FUEL

$

$

Not available

24

Husqvarna 603001668

SPRING, CONTINUITY, SOLENOID

$

$

Not available

18

Husqvarna 603000037

FILTER FUEL

$

$

Not available

13

Husqvarna 603001477

INSULATOR, CARBURETOR

$

$

Not available

1

Husqvarna 603000940

BRACKET, CHOKE CABLE

$

$

Not available

12

Husqvarna 603001476

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 603001474

TUBE, BREATHER

$

$

Not available

11

Husqvarna 603001475

STAY,FUEL PUMP

$

$

Not available

20

Husqvarna 603001483

BOLT, FLANGE, M6 X 11 X 4

$

$

Not available

22

Husqvarna 603001485

MANIFOLD, IN

$

$

Not available

9

Husqvarna 603001473

PUMP ASSY., FUEL, SUP

$92.99

$

Usually ships in 3-10 days

0

2

Husqvarna 603001115

INSERT, ADAPTER, CARBURETOR

$

$

Not available

7

Husqvarna 603001471

GROMMET, RESERVE TANK

$

$

Not available

16

Husqvarna 603001480

TUBE, DIAPHRAGM

$

$

Not available

4

Husqvarna 603001301

SCREW TAPPING, M5X0.8X10

$

$

Not available

3

Husqvarna 603001182

GASKET, ADAPTER, CARBURETOR

$

$

Not available

14

Husqvarna 603001478

SCREW-WASHER, M6 X 16

$

$

Not available

5

Husqvarna 603001313

ADAPTER, INTAKE HONDA GX620

$

$

Not available

15

Husqvarna 603001479

TUBE B, FUEL

$

$

Not available

6

Husqvarna 603001470

CLIP, BREATHER TUBE

$

$

Not available

21

Husqvarna 603001484

GASKET, IN. MANIFOLD

$

$

Not available

17

Husqvarna 603001481

CLIP, TUBE, B10

$

$

Not available

8

Husqvarna 603001472

BOLT, FLANGE, M6 X 1 X 120

$

$

Not available

23

Husqvarna 603001486

BOLT, SOCKET, M8 X 1.25 X 45

$

$

Not available

19

Husqvarna 603001482

CLIP, WIRE HARNESS

$

$

Not available
